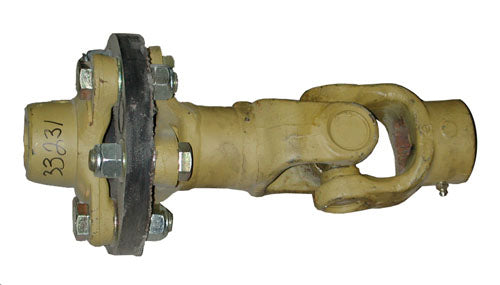

8155041 18-1/2 in. 6-Spline Series 5 Flex Coupler Assembly

Product Documents

34138_cat_002.pdf

Description

This 8155041 18-1/2 in. series 5 flex coupler assembly is designed to run outer gearboxes from the central gearbox. Equipped with 6-spline connections on both ends and a u-joint design, this flex coupler is ideal for flex wing mower applications.

Built for durability, this double pad flex coupler is used on 3 gear box connection gear box connector shafts and flex wing mowers with slip clutch attachments, providing reliable power transfer in demanding agricultural field conditions.

Dimension

Length - Overall:

18-1/2 in.

Spline Count:

Weight:

22 lb

Specification

Assembly Description:

GE5470-SPL Double Pad

Brand:

Eurocardan

Eurocardan Part #:

8155041

Features:

Double pad flex coupler design for reliable power transfer
6-spline connections on both ends for secure connection
U-joint design for smooth power delivery at varying angles
Series 5 construction for medium to heavy-duty applications
Designed for outer gearbox connection from central gearbox

Implement End:

1-3/8 in.

Series:

Series Size:

To Fit:

3 Gear Box Connection 96 in. & 120 in. Gear Box Connector Shafts, Flex Wing Mowers with Slip Clutch Attachments

Tractor End:

1-3/8 in.

Type:

Flex Coupler

Used On:

120 in. Flex Coupler
