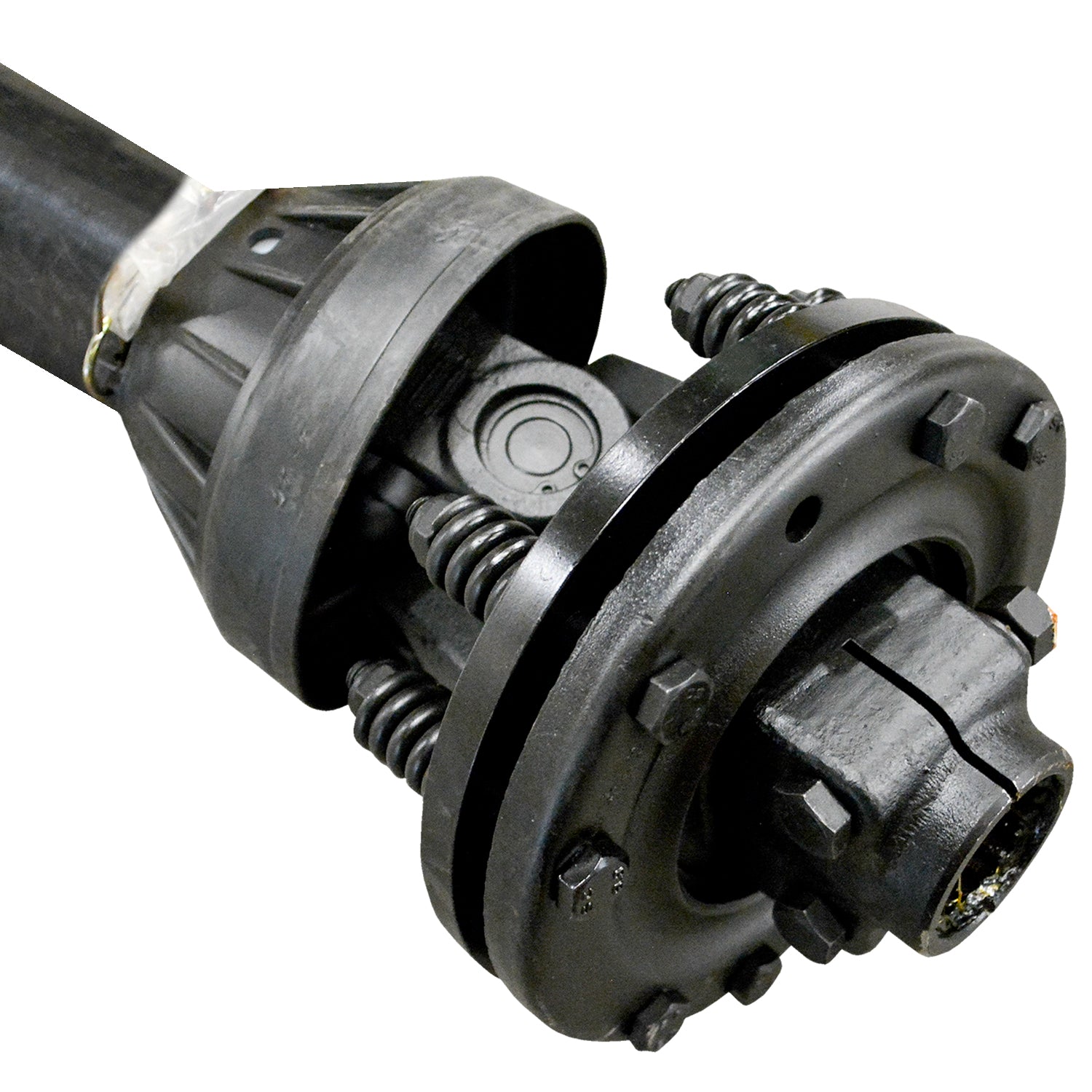

61 in. Series 6 PTO Shaft With Slip Clutch
SKU: #90649
Description
This Series 6 PTO shaft features a tractor end yoke and a slip clutch on the implement end. It is compatible for use with rotary mowers, and the slip clutch attaches with one bolt that fits a groove on the input shaft of the rotary mower.
Constructed for heavy-duty agricultural applications, this PTO shaft delivers reliable power transfer with built-in overload protection. The slip clutch features multiple discs to prevent damage to connected equipment during sudden load spikes.
Dimension
Dimensions:
Slip Clutch Diameter : 7-7/8 in.
Extended Length:
80-13/16 in.
Length - Overall:
61 in.
Specification
Brand:
Grizzly
Description:
1-3/4 in. x 20 Spline
Features:
- Multi-disc slip clutch provides overload protection to safeguard rotary mower components
- Dual splined ends ensure secure, vibration-resistant connection to tractor and implement
- One-bolt slip clutch attachment simplifies installation on rotary mower input shafts
- High HP rating supports demanding mowing operations at both standard and high speeds
- Series 6 construction engineered for reliable power transfer in heavy-duty agricultural use
Max. HP @ 1000 RPM:
98 HP
Max. HP @ 540 RPM:
62 HP
Series:
6
Series Size:
6
Used On:
15 ft Flex Wing Shaft
61 in. Series 6 PTO Shaft With Slip Clutch
