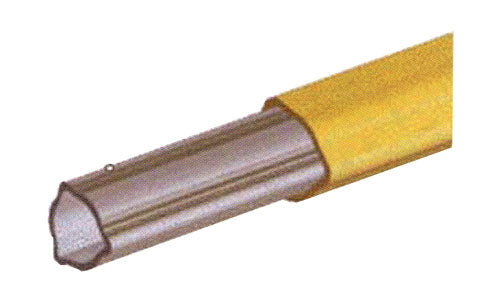

59 in. Internal Series 7 PTO Shaft Repair Tube
SKU: #33055
Description
This internal repair tube is designed for PTO shaft assemblies requiring replacement or repair of the inner tubing. It is suitable for Series 7 configurations and provides a precise fit within the external tube for smooth power transmission.
Built for agricultural power take-off applications, this tube serves as the inner core of the PTO shaft assembly. It is compatible with the external Series 7 tube for a complete shaft restoration.
Dimension
Height:
45 mm
Hole Size:
10 mm
Length - Overall:
59 in.
Thickness:
7/32 in.
Weight:
18 lb
Width - Overall:
1-3/4 in.
Specification
Brand:
Eurocardan
Description:
Tube
Eurocardan Part #:
1529801
Features:
- Designed as the inner core component for Series 7 PTO shaft assemblies
- Precision dimensions ensure proper clearance and fit within the external tube
- Pre-located hole at 22mm allows for accurate alignment during assembly
- Pairs with the external Series 7 tube for a complete shaft repair solution
- Built to withstand the rotational stresses of agricultural power take-off systems
Hole Location:
22 mm
Series:
Internal 7
Type:
Tube
