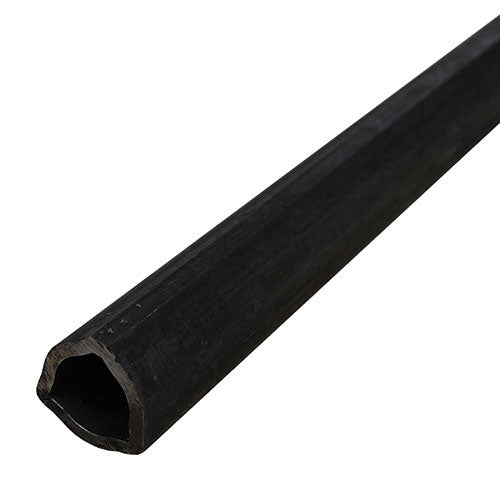

59 in. Internal Series 4 PTO Shaft Repair Tube
SKU: #33052
Description
This internal repair tube is designed for PTO shaft assemblies requiring replacement or repair of the inner tubing. It is suitable for Series 4 configurations, providing a precise fit within the outer tube for smooth power transmission.
Built for agricultural power take-off applications, this tube serves as the inner core of the PTO shaft assembly. It is compatible with the external Series 4 tube for a complete shaft restoration.
Dimension
Height:
36 mm
Hole Size:
8 mm
Length - Overall:
59 in.
Thickness:
4.5 mm
Weight:
12 lb
Width - Overall:
1-27/64 in.
Specification
Brand:
Eurocardan
Description:
Tube
Eurocardan Part #:
1525801
Features:
- Designed specifically for Series 4 PTO shaft configurations as the inner core component
- Precision dimensions ensure proper clearance and fit within the external tube
- Pre-located hole at 20mm allows for accurate alignment during assembly
- Pairs with the external Series 4 tube for a complete shaft repair solution
- Built to withstand the rotational stresses of agricultural power take-off systems
Hole Location:
20 mm
Series:
Internal 4
Type:
Tube
59 in. Internal Series 4 PTO Shaft Repair Tube
