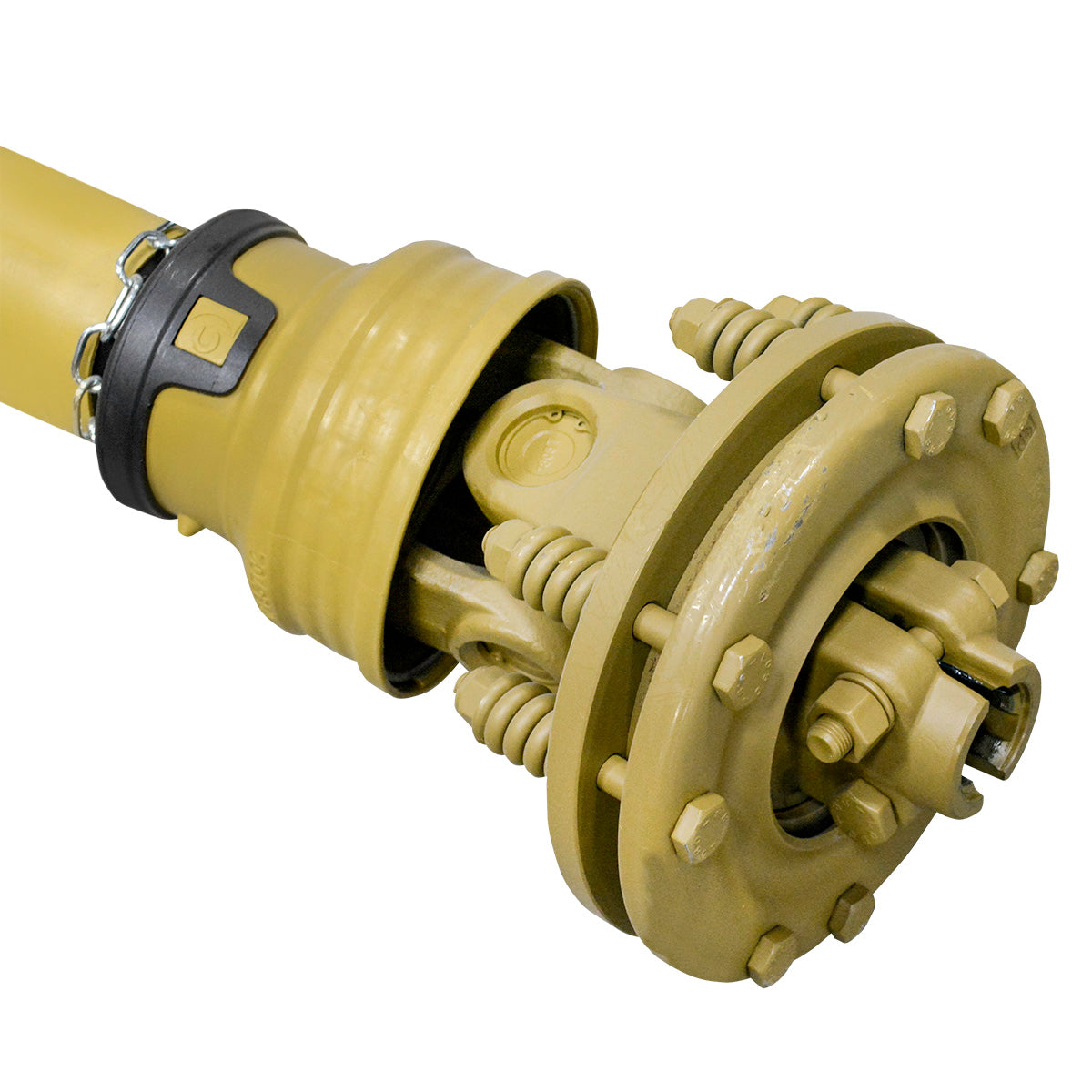

58-3/16 in. Series 6 PTO Shaft with Slip Clutch

Product Documents

34192_cat_002.pdf

Description

This complete Series 6 PTO shaft is designed for use with pull mowers and features a tractor end with a quick detach yoke and an implement end with a slip clutch. It provides secure power transfer for demanding agricultural mowing applications.

Built for heavy-duty performance, this PTO shaft delivers reliable operation with built-in overload protection. The slip clutch helps prevent damage to connected equipment during sudden load spikes.

Dimension

Diameter - Overall:

1-3/8 in.

Length - Overall:

84-3/16 in.

Length - Retracted:

58-3/16 in.

Spline Count:

Weight:

67 lb

Specification

Assembly Description:

AX1460A-SPF

Brand:

Eurocardan

Features:

FD2 slip clutch provides overload protection to safeguard pull mower components
Quick detach yoke on tractor end enables fast, tool-free connection and disconnection
Dual splined connections ensure secure, vibration-resistant power transfer
Series 6 construction engineered for reliable performance in heavy-duty mowing operations
Complete shaft assembly ready for installation on compatible pull mowers
48 in. 6 ft. Pull Mower 64/100 - designed for pull mower applications with proper sizing

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Clutch Series:

FD2

Implement End Clutch Type:

Slip Clutch

Implement End Spline Count:

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Type:

PTO Assembly

Used On:

6 ft. Pull mowers
