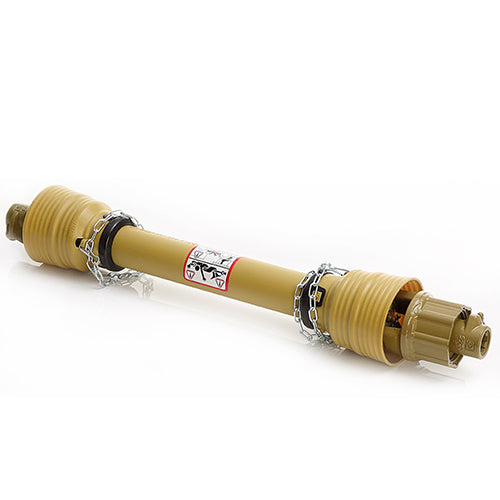

57 in. Series 2 PTO Assembly w/LN2 Torque Limiter Clutch

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 2 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features an LN2 pawl torque limiter clutch and 1-3/8 in. x 6-spline connections for implement and tractor compatibility. Rated for 21 HP at 540 RPM and 32 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.

Dimension

Extended Length:

84 in.

Length - Cross to Cross:

48 in.

Length - Overall:

57 in.

Weight:

27 lb

Specification

Assembly Description:

AX23121-16402

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline

Features:

Series 2 PTO assembly with LN2 torque limiter clutch protection
1-3/8 in. x 6-spline driveline connections for compatible PTO equipment
7,780 in./lb torque limiter clutch helps protect driveline components from overload conditions
Rated for 21 HP at 540 RPM and 32 HP at 1000 RPM
Designed for hay tedder and PTO-driven agricultural equipment

HP at 1000 RPM:

32 HP

HP at 540 RPM:

21 HP

Max. HP @ 1000 RPM:

74 HP

Max. HP @ 540 RPM:

47 HP

Series Size:

Type:

PTO Assembly

Used On:

LN2 Pawl Torque Limiter Clutch

57 in. Series 2 PTO Assembly w/LN2 Torque Limiter Clutch
