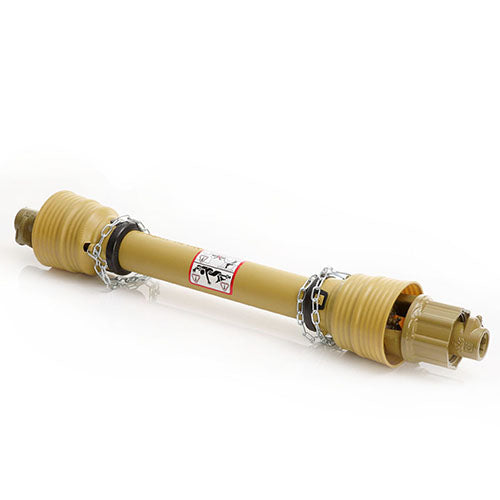

57-5/16 in. Series 4 PTO Assembly w/LN3 Torque Limiter Clutch

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features an LN3 torque limiter clutch and 1-3/8 in. x 6-spline connections for implement and tractor compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to help protect driveline components while providing dependable operation for PTO-driven equipment.

Dimension

Length - Overall:

57-5/16 in.

Weight:

30 lb

Specification

Assembly Description:

AX43121-16414

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline

Features:

Series 4 PTO assembly with LN3 torque limiter clutch protection
1-3/8 in. x 6-spline driveline connections for compatible PTO equipment
10,000 in./lb torque limiter clutch helps protect driveline components from overload conditions
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM
Designed for dependable PTO power transfer and equipment operation

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series Size:

Type:

PTO Assembly

Used On:

LN3 Pawl Torque Limiter Clutch

57-5/16 in. Series 4 PTO Assembly w/LN3 Torque Limiter Clutch
