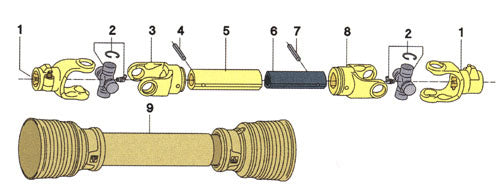

54-5/16 in. Series 6 PTO Shaft with Slip Clutch

Product Documents

32185_cat_002.pdf

Description

This Series 6 PTO shaft features connections on both ends, making it suitable for heavy-duty agricultural applications. The tractor end includes a quick-detach yoke, while the implement end features a slip clutch for overload protection.

Designed for reliable power transfer, this PTO shaft is rated for demanding mowing and tilling operations. The slip clutch helps prevent damage to connected equipment during sudden load spikes.

Dimension

Extended Length:

77-1/2 in.

Length - Overall:

54-1/2 in.

Length - Retracted:

54-5/16 in.

Spline Count:

Weight:

61.73 lb

Specification

Assembly Description:

AX61110FD2A-HDSC

Brand:

Eurocardan

Features:

FD2 slip clutch provides overload protection to safeguard tractor and implement components
Quick-detach yoke on tractor end enables fast, tool-free connection and disconnection
Dual spline connections ensure secure, vibration-resistant power transfer
Series 6 construction engineered for demanding agricultural operations
Rated for both standard and high-speed PTO speeds

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Clutch Series:

FD2

Implement End Clutch Type:

Slip Clutch

Implement End Spline Count:

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Detach

Tractor End Spline Count:

Type:

PTO Shaft
