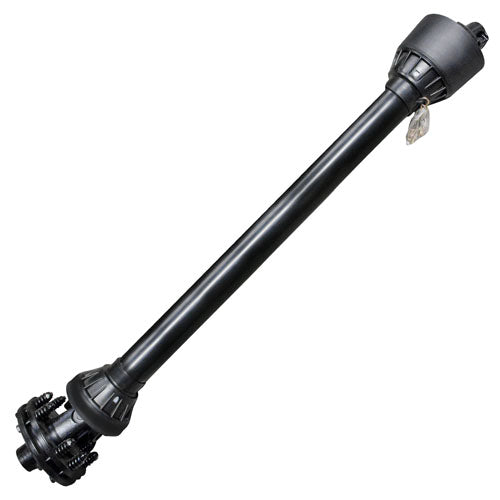

54-3/16 in. Series 6 PTO Shaft with 2-Disc Friction Clutch

Product Documents

90647_ins_001.pdf

Description

This Series 6 PTO shaft is designed for use with rotary cutting devices, including 7-foot lift type cutters. It features a tractor yoke and an implement yoke, both with splined connections for secure power transfer. The implement yoke includes a friction clutch to protect connected equipment from sudden load spikes.

Built for heavy-duty agricultural applications, this PTO shaft delivers reliable performance in demanding mowing and cutting operations. The friction clutch uses replaceable discs for easy maintenance and long service life.

Dimension

Diameter - Overall:

1-3/8 in.

Extended Length:

68-5/16 in.

Length - Retracted:

54-3/16 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

2-disc friction clutch protects tractor and cutter from damage during overload conditions
Dual 1-3/8 in. 6-spline yokes ensure secure, vibration-resistant power transfer
Replaceable friction discs simplify maintenance and extend service life
Series 6 construction engineered for heavy-duty rotary cutting applications
Compatible with 7-foot lift type cutters for versatile agricultural use

Friction Clutch Discs:

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Implement End Clutch Type:

Friction Clutch

Implement End Component:

Yoke

Implement End Spline Count:

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Spline Count:

Type:

PTO Shaft

Used On:

Rotary cutting devices, 7-foot lift type cutter
