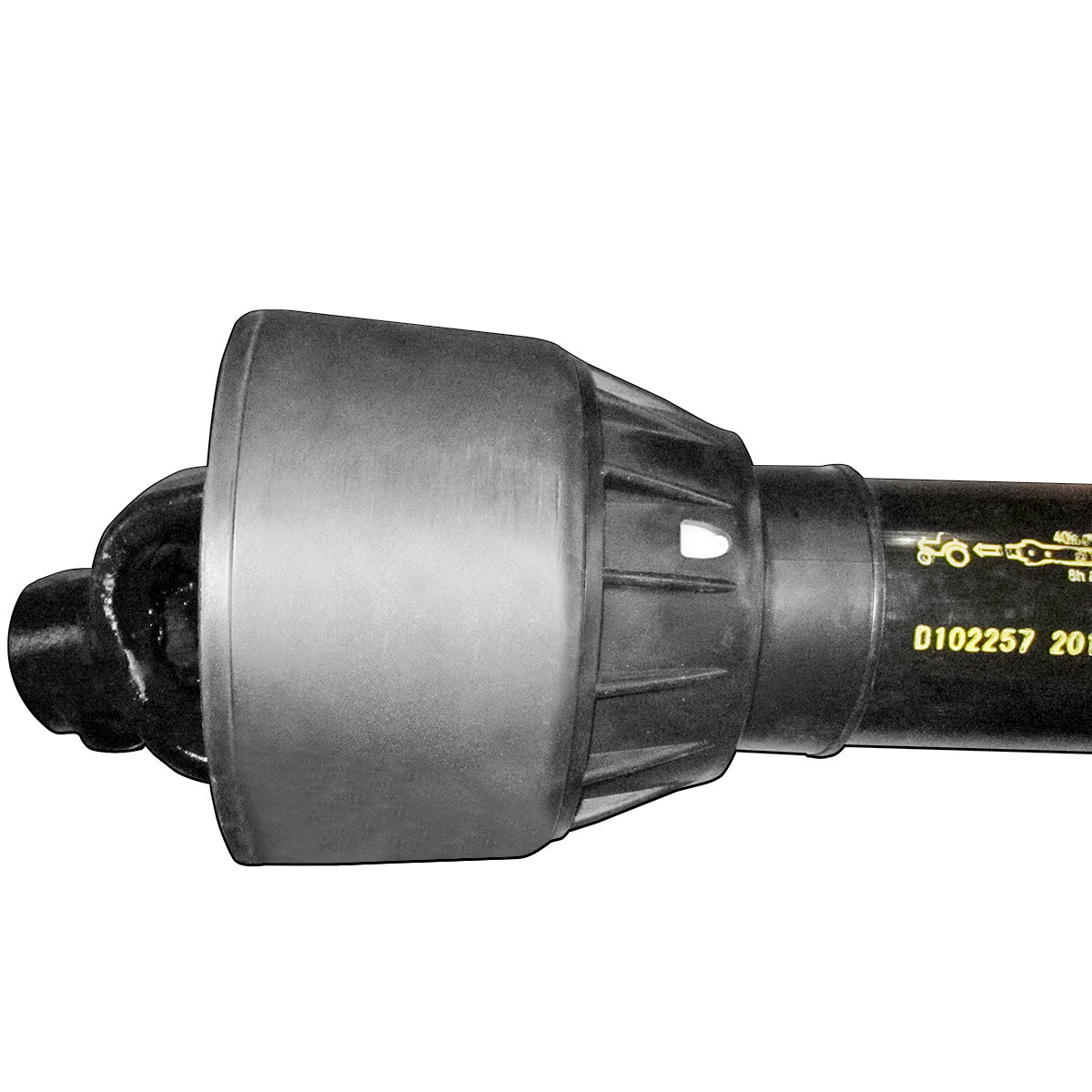

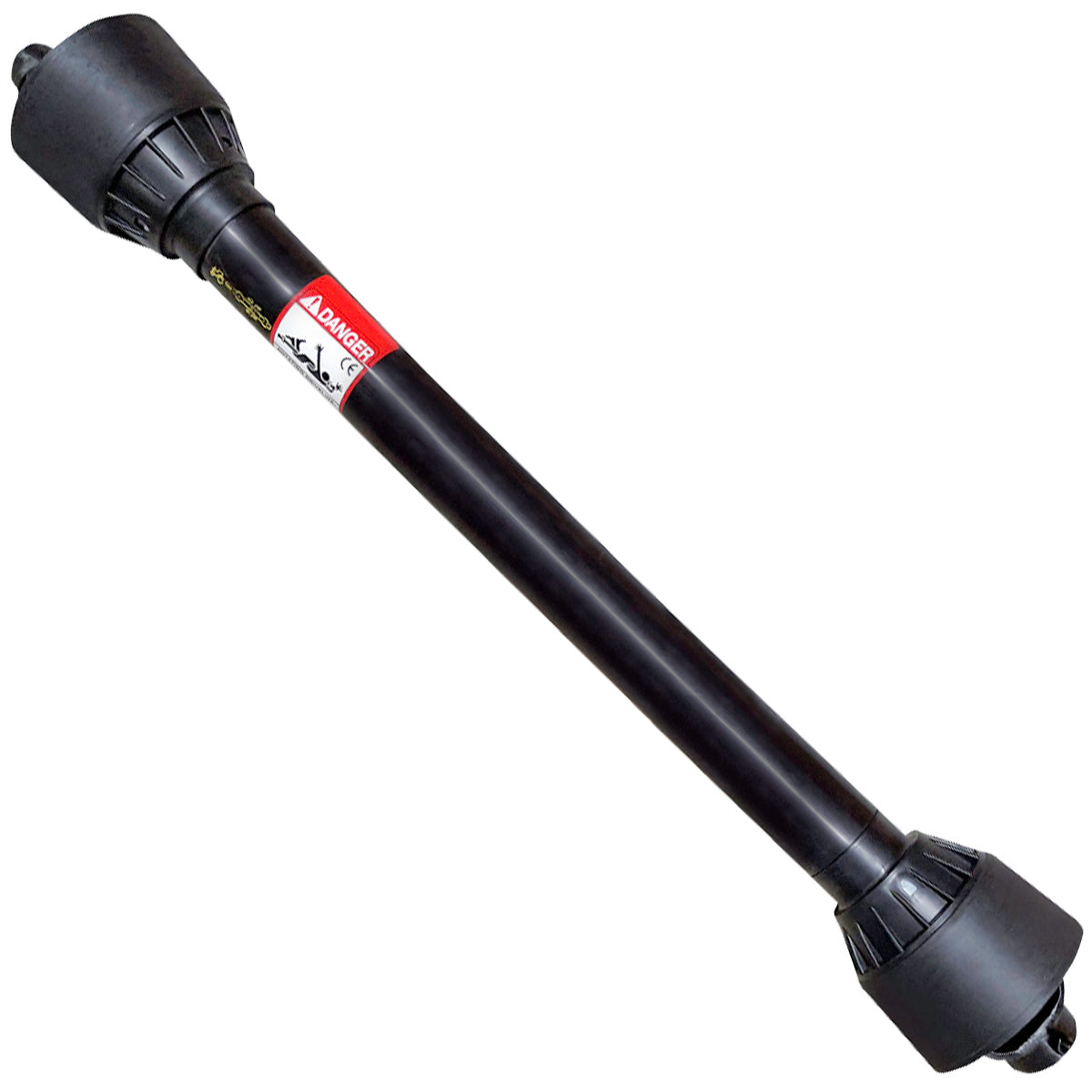

53 in. Series 6 PTO Shaft with Shear Bolt

Product Documents

102257_ins_001.pdf

Description

This Series 6 PTO shaft is designed for use with rotary cutting devices, including 7-foot lift type cutters. It features a tractor end yoke with a splined connection and an implement end yoke with a smooth bore and shear bolt hole for secure attachment.

Built for heavy-duty agricultural applications, this PTO shaft delivers reliable power transfer with built-in overload protection. The shear bolt design helps protect connected equipment by breaking away during sudden torque spikes, preventing damage to the gearbox and driveline components.

Dimension

Extended Length:

68 in.

Implement End Bore Size:

1-3/8 in.

Implement End Hole Size:

1/2 in.

Length - Retracted:

53 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

Shear bolt hole on implement end provides overload protection to safeguard gearbox and driveline
Splined tractor end yoke ensures secure, vibration-resistant power transfer
Smooth bore implement end compatible with various rotary cutter configurations
Series 6 construction engineered for reliable performance in heavy-duty cutting applications
Rated for both standard and high-speed PTO speeds

HP at 1000 RPM:

HP at 540 RPM:

Implement End Bore Type:

Smooth Bore

Implement End Component:

Yoke

Implement End Hole Type:

Shear Bolt Hole

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Spline Count:

Type:

PTO Shaft

Used On:

Rotary cutting devices, 7-foot lift type cutter
