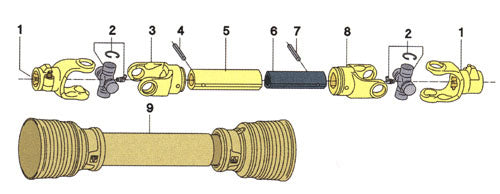

51-5/8 in. Series 4 PTO Assembly w/1 in. Smooth Bore Keyway Yoke

Product Documents

33237_cat_002.pdf

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power while supporting reliable driveline performance.

This PTO assembly features a 1 in. smooth bore implement yoke with a 1/4 in. keyway and set screws along with a 1-3/8 in. x 6-spline tractor connection for compatible PTO applications. Commonly used with sprayer pumps utilizing 1 in. shafts, it is rated for 35 HP at 540 RPM and 54 HP at 1000 RPM for dependable PTO operation.

Dimension

Extended Length:

76 in.

Length - Cross to Cross:

44 in.

Length - Overall:

51-5/8 in.

Spline Count:

Specification

Assembly Description:

AX41110F-SMKEY

Brand:

Eurocardan

Description:

1 in. Smooth Bore with Keyway, 1-3/8 in. x 6 Spline

Features:

Series 4 PTO assembly with a 1 in. smooth bore implement connection
1/4 in. keyway and set screw design for secure shaft attachment
1-3/8 in. x 6-spline tractor connection
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM
Commonly used with sprayer pumps utilizing 1 in. shafts

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series Size:

Type:

PTO Assembly

Used On:
