51-1/2 in. Series 4 PTO Shaft with Quick Connect Yoke

Product Documents

109132_ins_001.pdf

Description

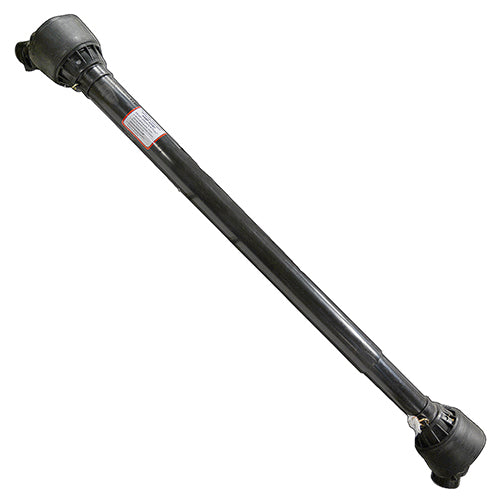

This Series 4 PTO shaft operates in rotational motion and features a tractor end and an implement end with different connection types for versatile agricultural applications. The tractor end includes a quick connect yoke with a splined connection, while the implement end features a smooth round bore with a set screw for secure attachment.

Built for reliable performance, this PTO shaft delivers consistent power transfer in demanding farm environments. The long bell shield on the implement end provides additional operator safety during operation.

Dimension

Cross Kit Diameter:

27 mm

Cross Kit Width:

74.6 mm

Extended Length:

68-7/8 in.

Implement End Bore Size:

1-1/4 in.

Length - Retracted:

51-1/2 in.

Spline Count:

Specification

Brand:

Grizzly

Features:

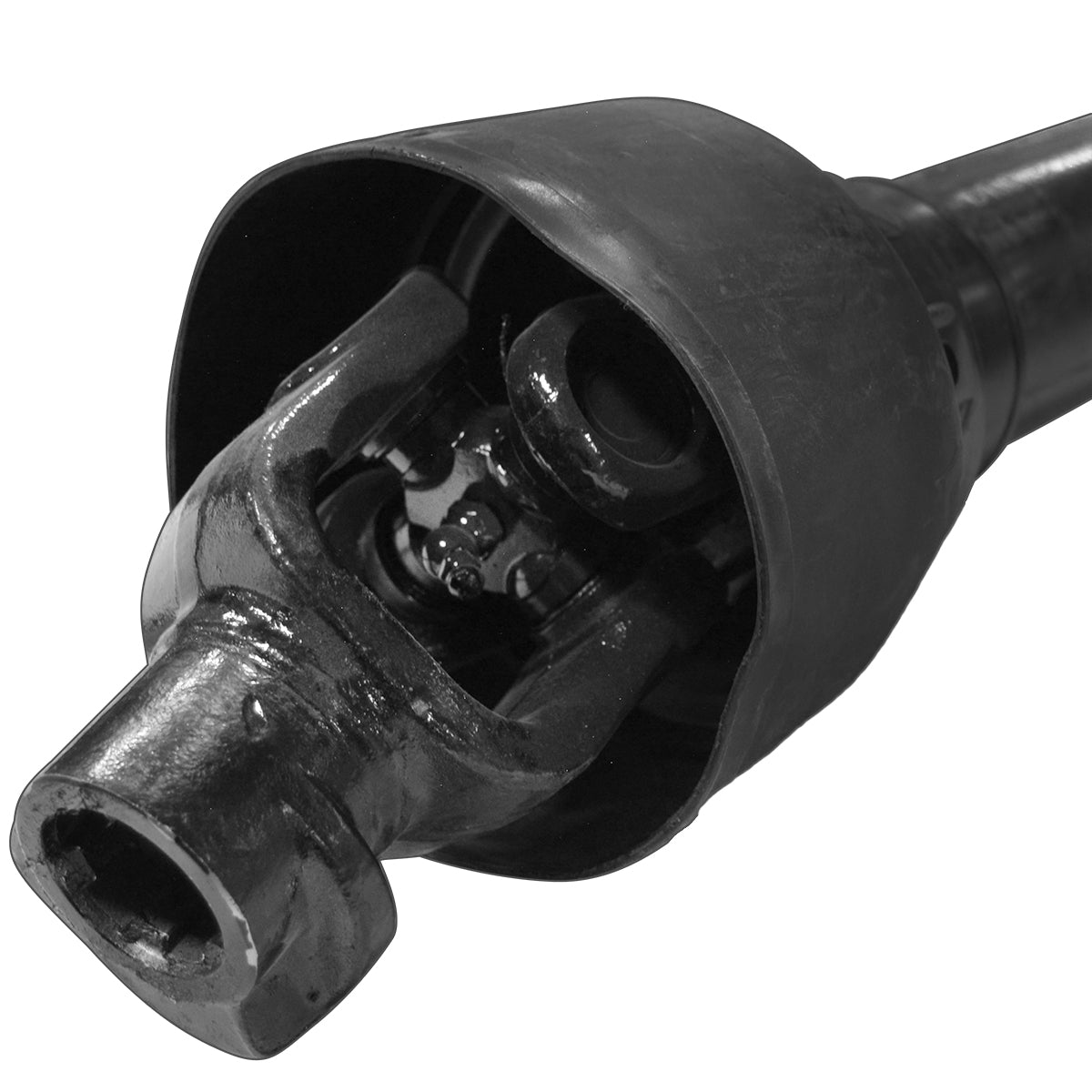

Quick connect tractor end enables fast, secure attachment to power take-off

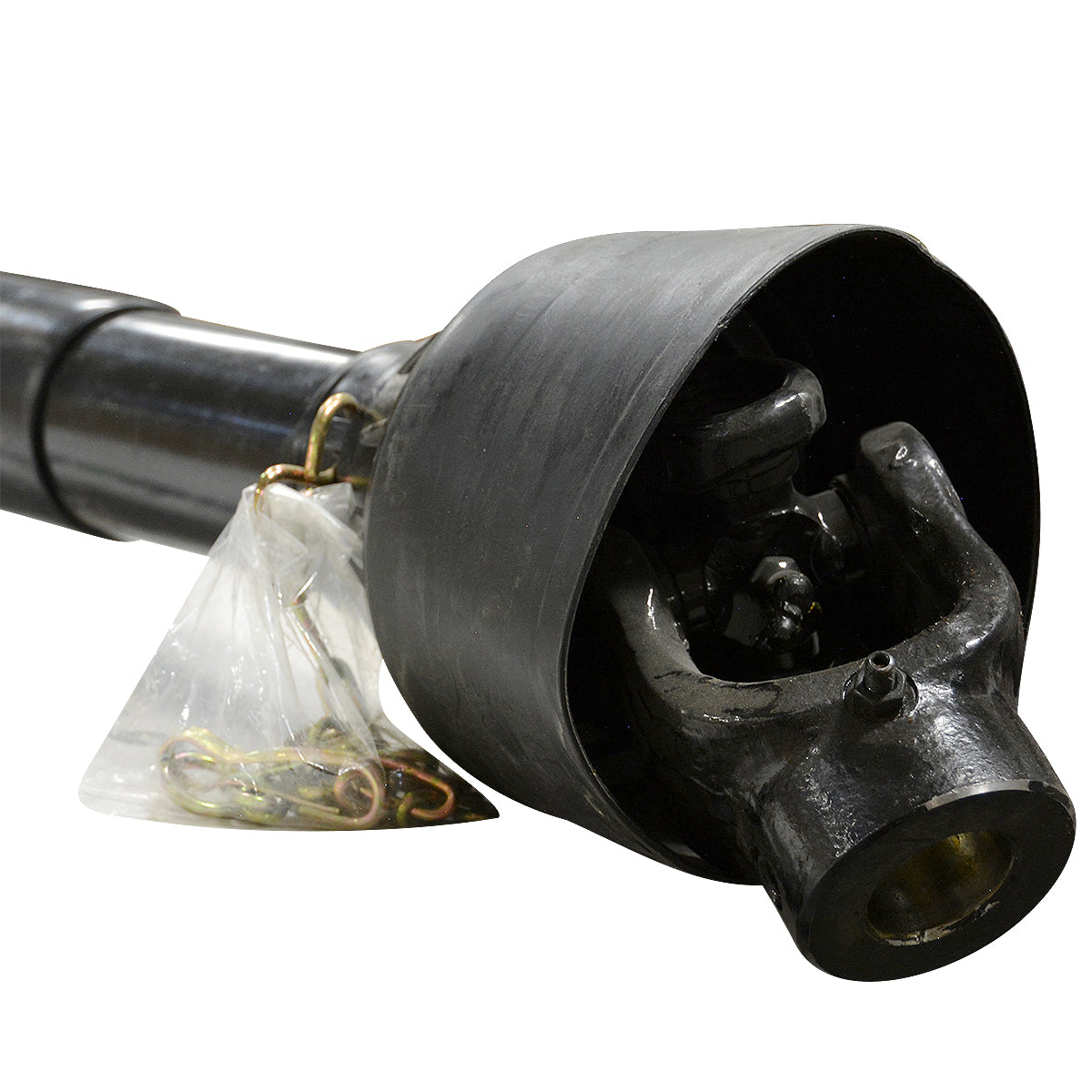

Smooth round bore implement end with set screw for versatile equipment compatibility
Long bell shield on implement end provides enhanced operator safety
Metal pull collar yoke on tractor end ensures durable, reliable connection
Series 4 cross kit compatibility allows easy maintenance and part replacement
Shear pinhole size allows for standard 3/8 in. shear pin installation for overload protection

HP at 1000 RPM:

HP at 540 RPM:

Implement End Bore Type:

Smooth Round

Implement End Gender:

Female

Pull Collar Material:

Metal

Series:

Series Size:

Tractor End:

1-3/8 in.

Tractor End Component:

Yoke

Tractor End Connection Style:

Quick Connect

Tractor End Gender:

Female

Tractor End Spline Count:

Type:

PTO Shaft

Used On:

Agricultural implements
