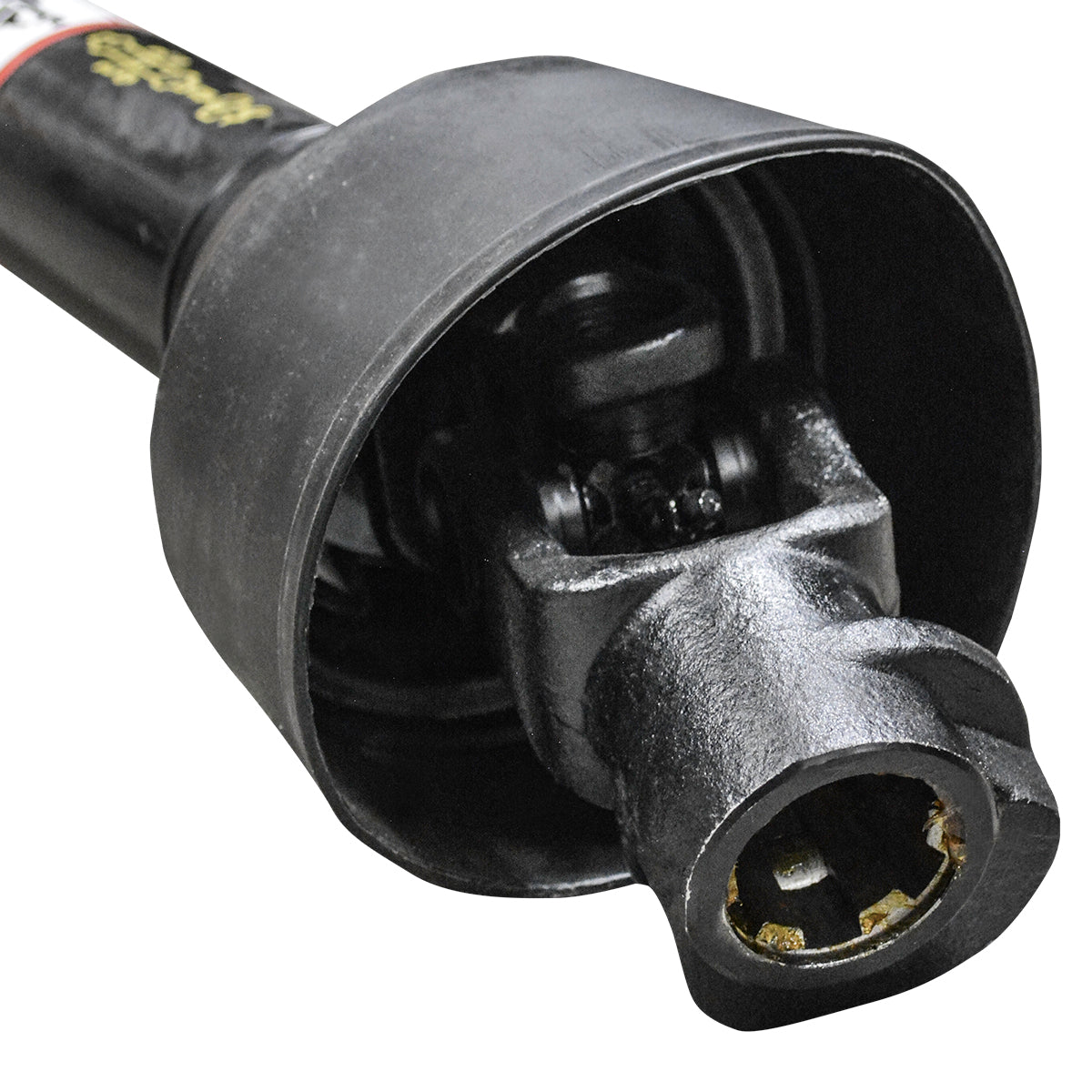

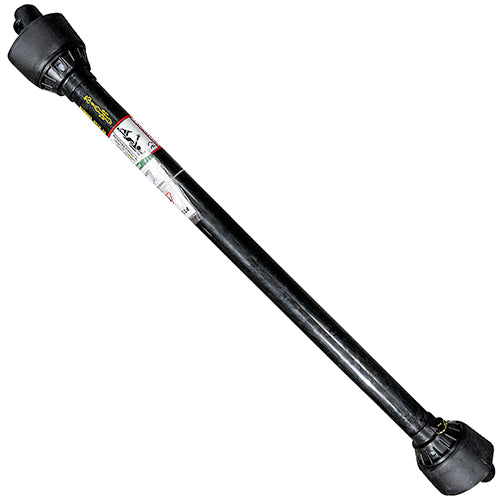

50-1/2 in. Series 1 PTO Shaft with Shear Pin Yoke
SKU: #102265
Description
This Series 1 PTO shaft features a tractor end with a splined connection and an implement end with a round bore, making it compatible for use with post hole diggers. The shear pin type yoke provides overload protection to safeguard connected equipment.
Built for reliable performance, this PTO shaft delivers consistent power transfer in light-duty agricultural applications. The round implement end with shear pin design ensures secure attachment for compatible equipment.
Dimension
Dimensions:
Shear Bolt Size: 3/8 in. x 3-1/2 in. Grade 2 bolt with locknut or regular nut with lock washer
Extended Length:
68-1/2 in.
Implement End Bore Size:
1-1/4 in.
Length - Retracted:
50-1/2 in.
Spline Count:
6
Specification
Brand:
Grizzly
Features:
- Shear pin type yoke provides overload protection to safeguard post hole digger components
- Splined tractor end ensures secure, vibration-resistant power transfer
- Round bore implement end compatible with various post hole digger configurations
- Series 1 construction engineered for reliable light-duty agricultural performance
- Rated for both standard and high-speed PTO speeds
HP at 1000 RPM:
24
HP at 540 RPM:
16
Implement End Bore Type:
Round Bore
Implement End Component:
Yoke
Implement End Yoke Type:
Shear Pin Type
Series:
1
Series Size:
1
Tractor End:
1-3/8 in.
Tractor End Component:
Yoke
Tractor End Spline Count:
6
Type:
PTO Shaft
Used On:
Post hole diggers
