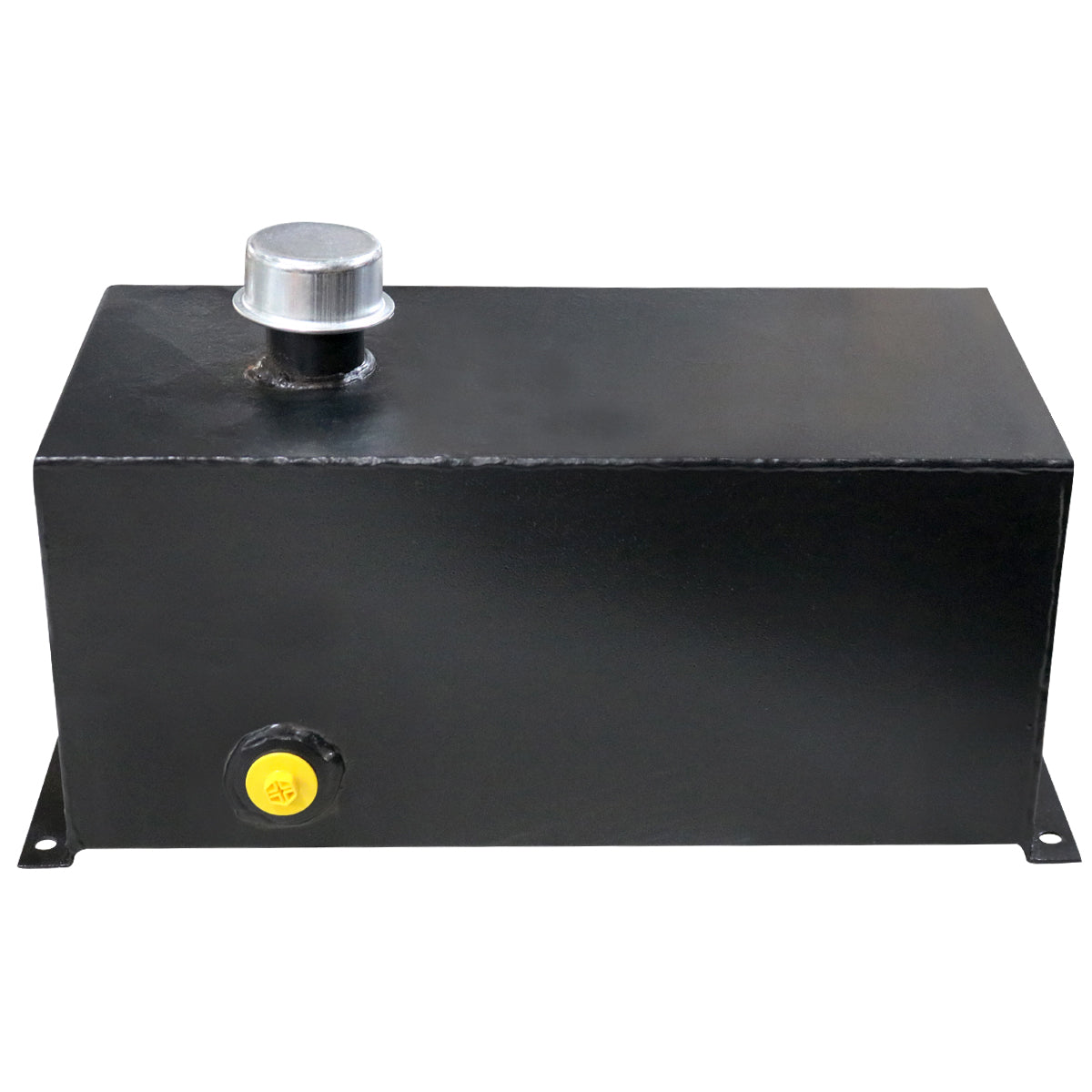

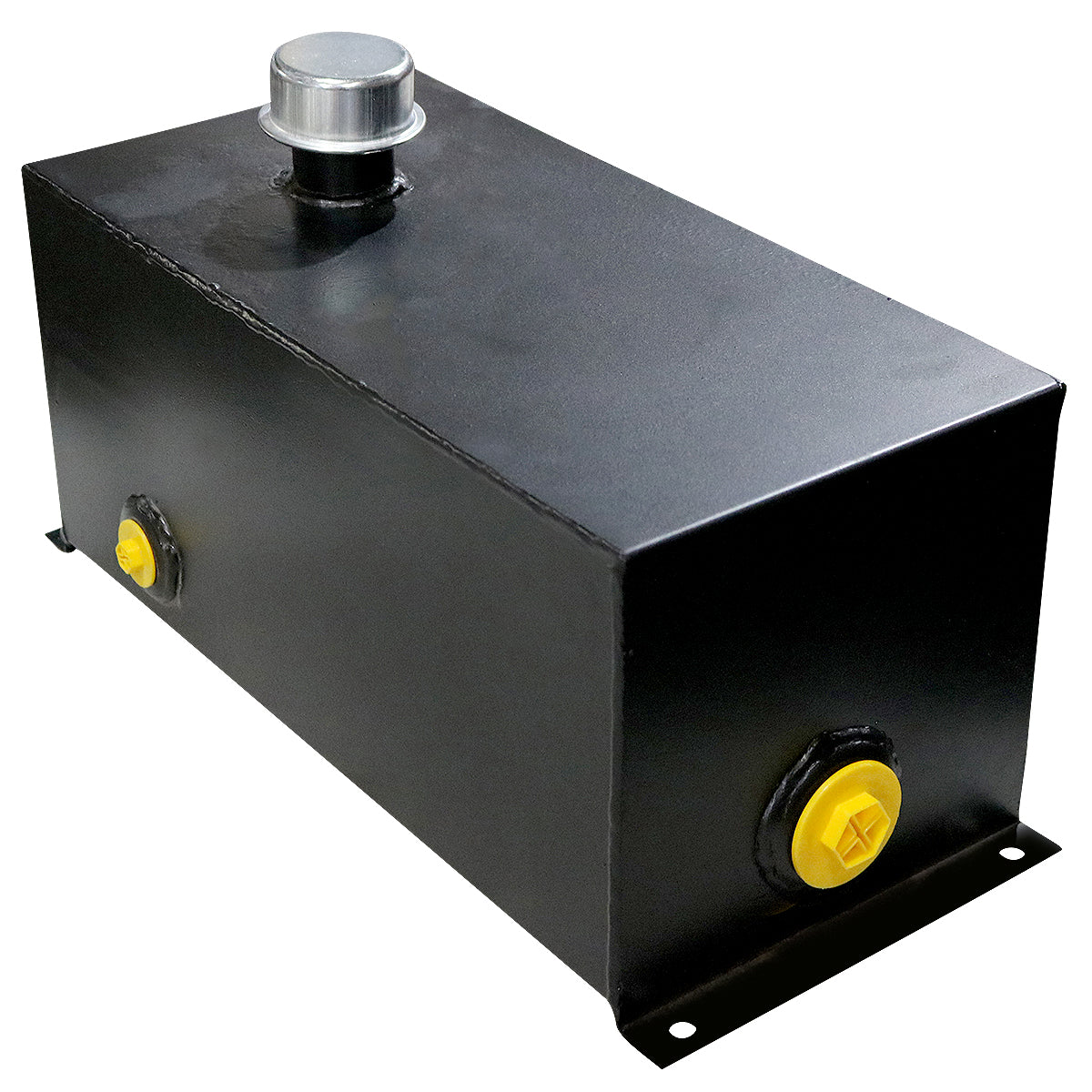

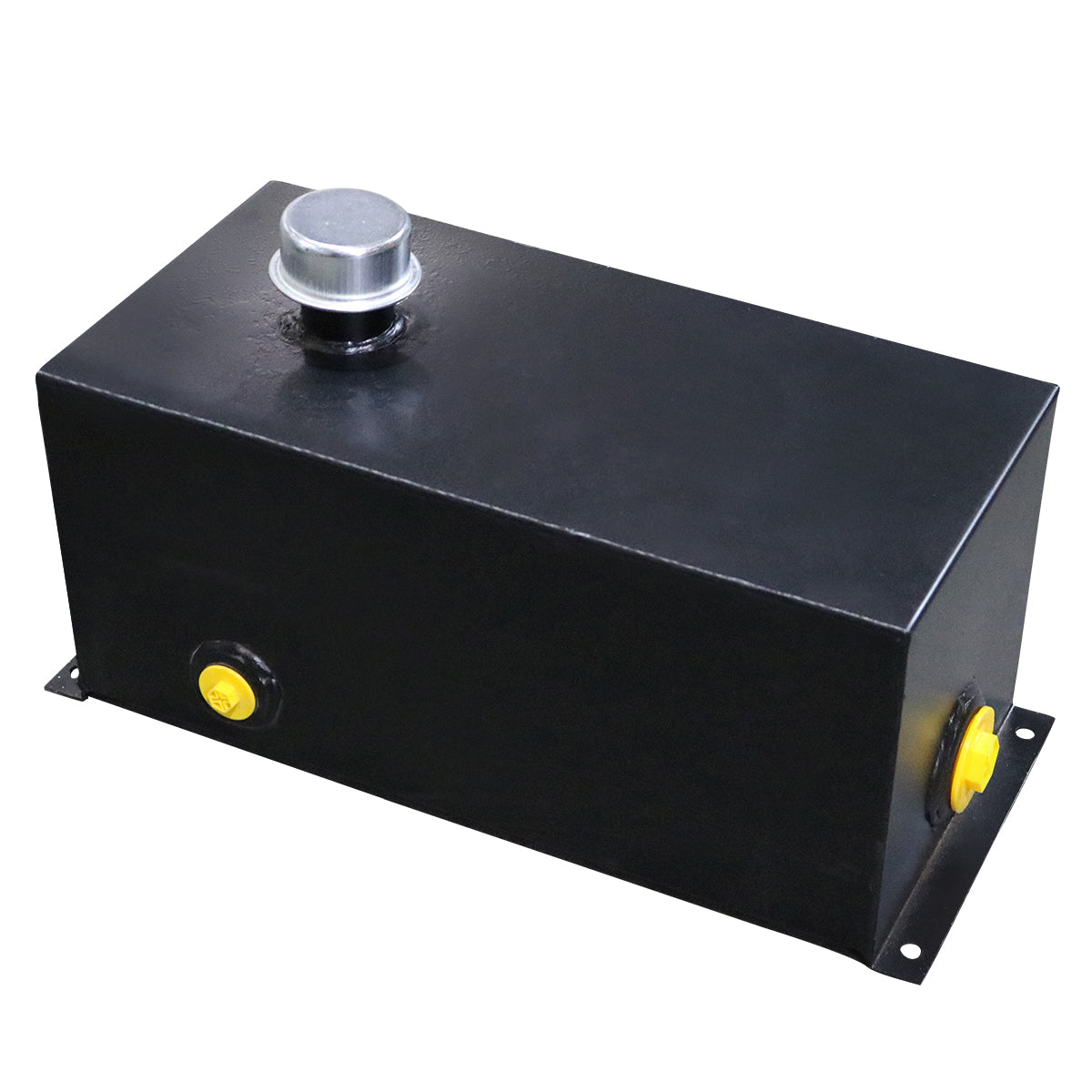

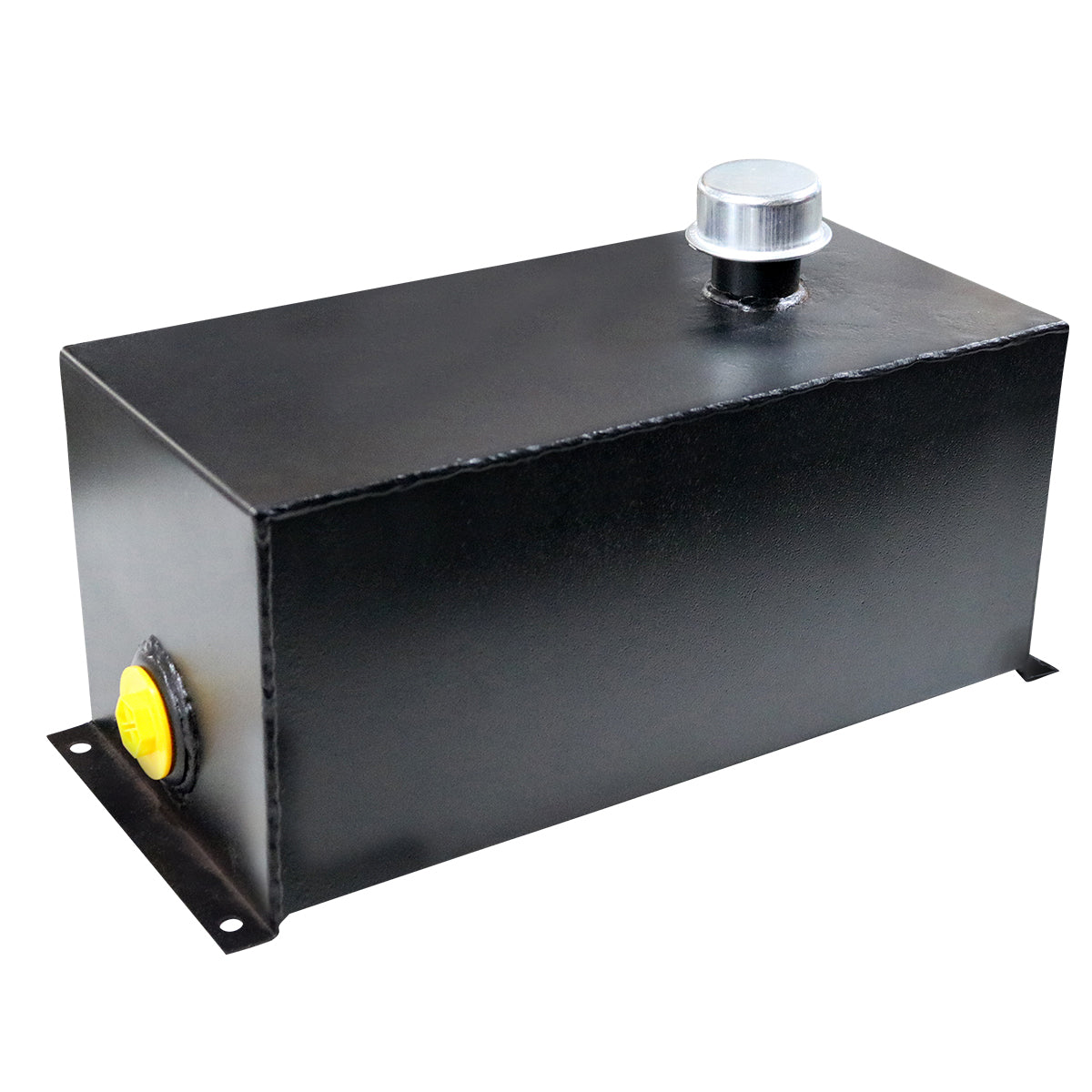

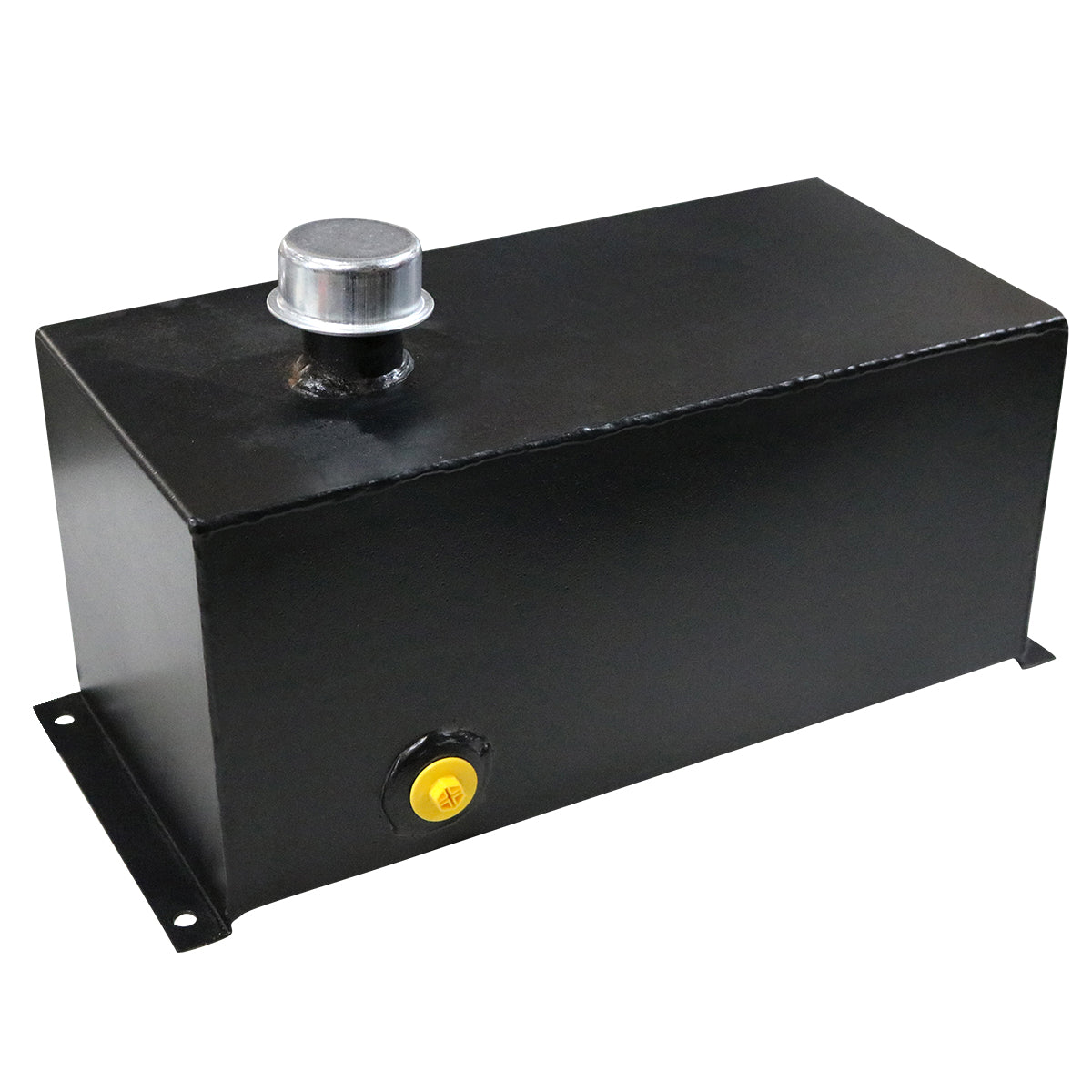

5 Gallon Hydraulic Reservoir Tank

Description

This 5 gallon hydraulic reservoir tank is designed to provide reliable hydraulic fluid storage for agricultural, industrial, and equipment applications. Constructed from durable 12-gauge welded steel, the tank features a black powder-coated finish to help resist corrosion and extend service life.

The reservoir includes a clip-on breather cap, a NPT suction port, and a 3/4 in. NPT return port for convenient hydraulic system integration. Mounting flanges with four 3/8 in. mounting holes allow secure installation in a variety of equipment configurations.

Dimension

Center-to-Center:

19 in. x 7-1/4 in.

Dimensions:

Tank Only

Height: 8-3/8 in.
Length - Overall: 17-5/8 in.
Width - Overall: 8-3/4 in.

Including Flanges & Breather Cap

Height: 11 in.
Length - Overall: 19-7/8 in.
Width - Overall: 8-3/4 in.

Hole Diameter:

3/8 in.

Weight:

16.5 lb

Width - Overall:

8-21/32 in.

Specification

Capacity:

5 Gallons

Color:

Black

Description:

5 Gallon Capacity

Features:

Durable 12-gauge welded steel construction
Black powder-coated finish helps resist corrosion
Includes clip-on breather cap for proper reservoir ventilation
Features 1-1/2 in. NPT suction and 3/4 in. NPT return ports
Mounting flanges with pre-drilled holes simplify installation

Finish:

Black Powder Coat

Included Products:

Clip-On Breather Cap

Material:

12-Gauge Welded Steel

Type:

Hydraulic Reservoir
