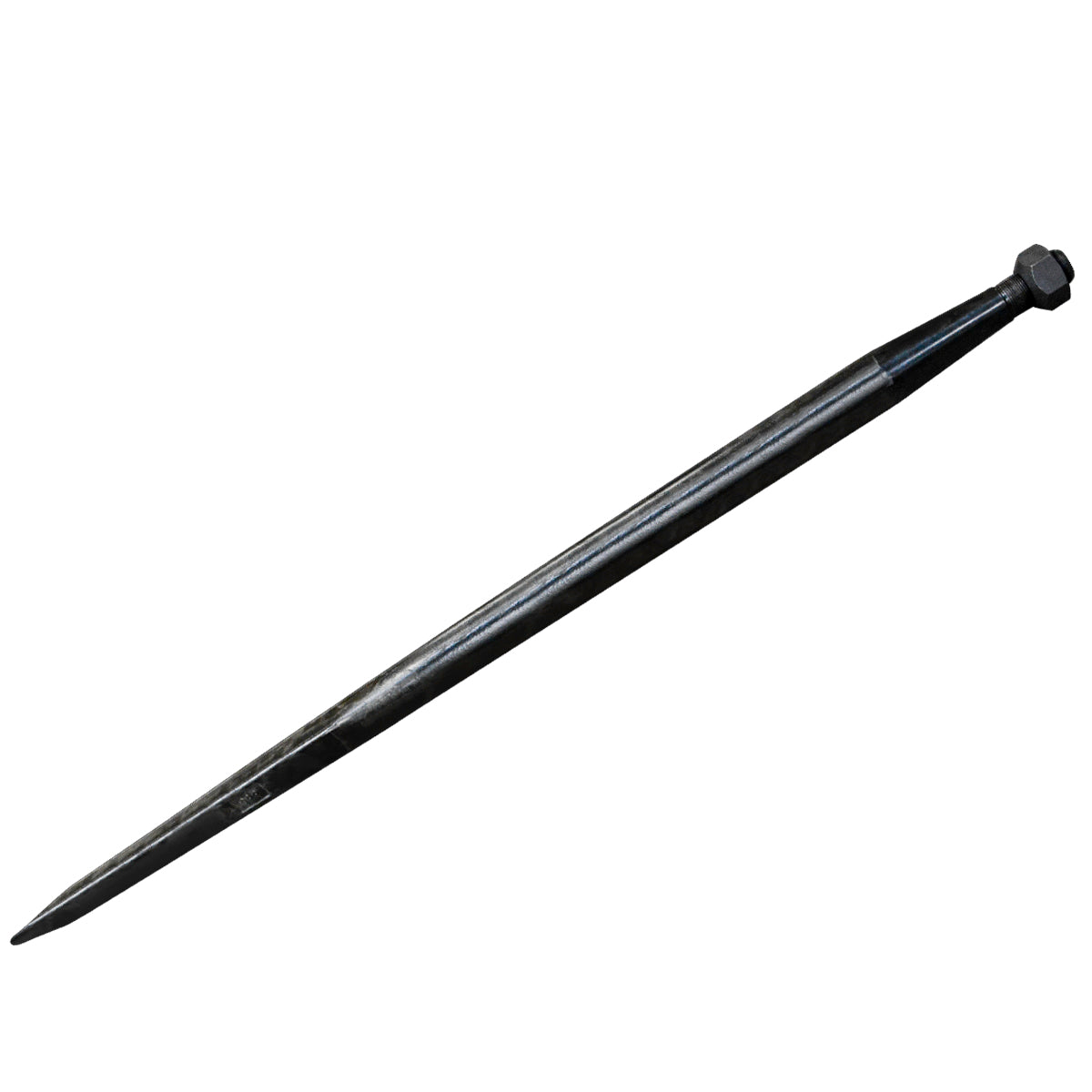

49-1/4 in. Conus 2 Bale Spear with Nut

Description

Handle hay bales efficiently with this 49-1/4 in. Conus 2 bale spear. Manufactured from heat-treated, forged steel, it delivers the strength and durability required for demanding agricultural bale handling applications. The tapered design allows easier bale penetration for smoother loading and unloading.

Designed for dependable performance, this bale spear features a maximum load capacity of 3,500 lb and includes a replacement nut for convenient installation. Compatible with select bale spear bushings, it serves as a reliable replacement component for bale-moving equipment.

Dimension

Diameter - Base:

1-5/8 in.

Diameter - Body:

1-3/4 in.

Length - Overall:

49-1/4 in.

Length - Usable:

44 in.

Specification

Brand:

Grizzly

Capacity:

3,500 lb

Color:

Black

Features:

Heat-treated and forged for enhanced durability
Conus 2 design provides compatibility with matching bushings
Tapered tip helps reduce resistance when piercing bales
Rated for up to 3,500 lb capacity at 23 in. from the bushing
Secondary load rating of 2,615 lb at 31-1/2 in. from the bushing

Included Products:

Nut

Load Center:

23 in.

Material:

Heat-Treated Forged Steel

Max Load:

3,500 lb

Quantity in Package:

Series:

Conus 2

Style:

Tapered Point

Type:

Bale Spear

49-1/4 in. Conus 2 Bale Spear with Nut
