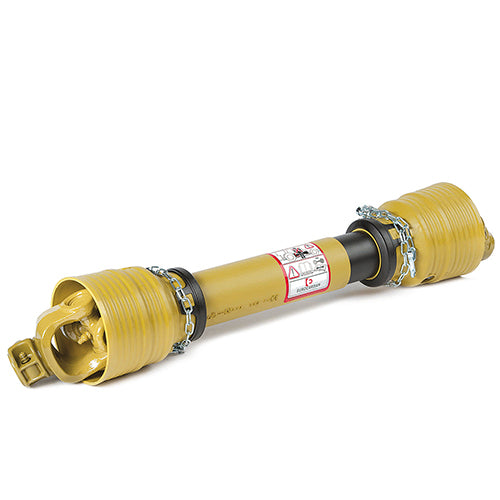

44-5/8 in. Series 5 PTO Assembly

Description

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 5 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features 1-3/8 in. x 6-spline yokes on both the tractor and implement ends for secure PTO driveline connections. Rated for 47 HP at 540 RPM and 72 HP at 1000 RPM, it is designed to provide dependable operation for PTO generators and other PTO-driven equipment requiring reliable power transmission.

Dimension

Extended Length:

62-11/16 in.

Length - Cross to Cross:

36 in.

Length - Overall:

44-5/8 in.

Specification

Assembly Description:

AX5009-16397

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline

Features:

Series 5 PTO assembly designed for PTO generator and tiller applications
1-3/8 in. x 6-spline yokes on both implement and tractor ends
Provides dependable power transfer between tractor and implement
Rated for 47 HP at 540 RPM and 72 HP at 1000 RPM
Suitable for medium-duty tillers and 6 ft lift cutter applications

HP at 1000 RPM:

72 HP

HP at 540 RPM:

47 HP

Max. HP @ 1000 RPM:

74 HP

Max. HP @ 540 RPM:

47 HP

Series Size:

Type:

PTO Assembly

Used On:

Medium Duty Tillers, 6 ft Lift Cutters, PTO Generators
