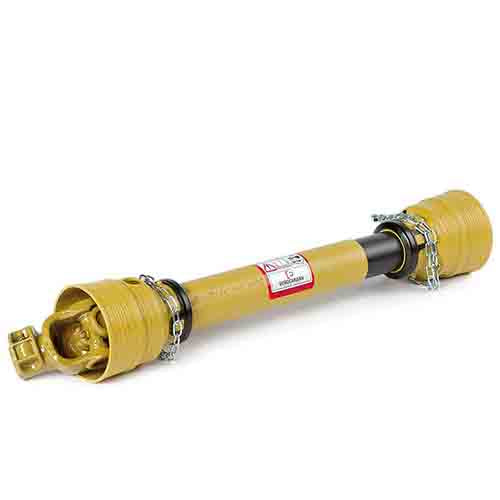

AX4 42-1/2 in. OL 1-3/8 in. 6 Spline x 1-3/8 in. Smooth Bore

Description

Maintain reliable power transfer with this AX4 PTO assembly designed for 6 ft. lift mower applications. Built for dependable performance in demanding field conditions, this PTO shaft assembly provides a secure connection between the tractor and implement.

This PTO assembly features a 42-1/2 in. overall length with a 1-3/8 in. 6-spline tractor-end connection and a 1-3/8 in. smooth bore implement-end connection. It is suitable for 6 ft. lift mower applications.

Dimension

Extended Length:

60-5/8 in.

Length - Overall:

42-1/2 in.

Pin Hole:

1/2 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Weight:

24.95 lb

Specification

Assembly Description:

AX45000-0185

Bore:

1-3/8 in.

Brand:

Eurocardan

Description:

1/2 in. Shear Pin - 1-3/8 in. Smooth Yoke - 1-3/8 in. x 6 Spline SPL QD

Features:

Designed for 6 ft. lift mower PTO applications
Smooth bore implement-end yoke with shear pin protection
AX4 series construction for dependable power transmission
Compatible with agricultural PTO driveline systems
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

55 HP

HP at 540 RPM:

35 HP

Max RPM:

540 / 1000

Series:

AX4

Series Size:

Style:

Smooth Bore with Shear Pin

To Fit:

6 ft. Lift Mower

Type:

PTO Assembly
