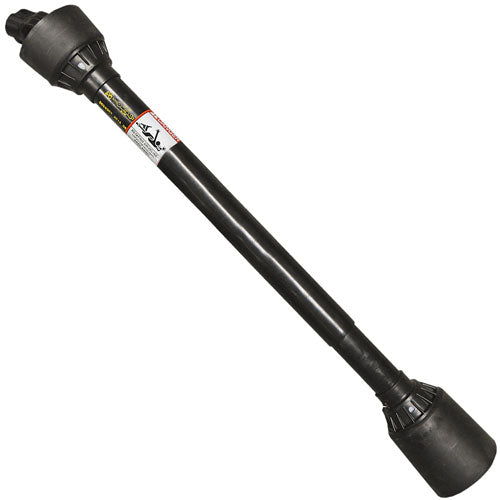

42-1/2 in. Series 4 PTO Shaft with Shear Bolt
SKU: #89367
Description
This Series 4 PTO shaft features a tractor end and an implement end for different sized applications. It operates in rotational motion when transferring power from the tractor to connected implements.
Built for reliable agricultural performance, this PTO shaft includes a splined connection on the tractor end and a smooth round bore on the implement end for versatile equipment compatibility. The shear bolt design provides overload protection to safeguard connected machinery.
Dimension
Cross Kit Diameter:
27 mm
Cross Kit Width:
74.6 mm
Dimensions:
Outer Tubing: 3.3 mm
Inner Tubing: 4.4 mm
Extended Length:
55-5/16 in.
Implement End Bore Size:
1-3/8 in.
Implement End Hole Size:
13 mm
Length - Retracted:
42-1/2 in.
Spline Count:
6
Specification
Brand:
Grizzly
Features:
- Splined tractor end ensures secure, vibration-resistant power transfer
- Smooth round bore implement end with shear bolt hole for versatile equipment compatibility
- Standard tubing construction provides durable performance in demanding farm operations
- Series 4 cross kit compatibility allows easy maintenance and part replacement
- Shear bolt hole size allows for standard shear bolt installation for overload protection
HP at 1000 RPM:
55
HP at 540 RPM:
35
Implement End Bore Type:
Smooth Round
Implement End Hole Type:
Shear Bolt Hole
Series:
4
Series Size:
4
Tractor End:
1-3/8 in.
Tractor End Component:
Yoke
Tractor End Spline Count:
6
Type:
PTO Shaft
