40 in. Series 4 PTO Assembly

Description

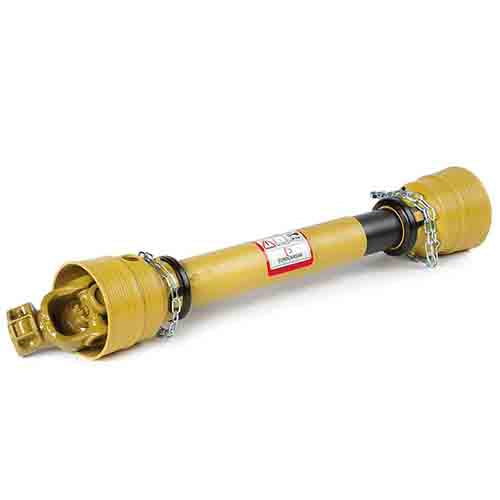

Keep PTO-driven equipment operating efficiently with this Eurocardan Series 4 PTO assembly designed for dependable power transfer between the tractor and implement. Engineered for agricultural applications, it helps deliver smooth and consistent power to PTO-driven equipment while supporting reliable driveline performance.

This PTO assembly features 1-3/8 in. x 6-spline yokes on both the tractor and implement ends and includes shielding for added protection. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM, it is designed to provide dependable operation for finishing mowers, flail mowers, and other PTO-driven equipment.

Dimension

Extended Length:

56-7/8 in.

Length - Overall:

40 in.

Specification

Assembly Description:

AX40081-16412

Brand:

Eurocardan

Description:

1-3/8 in. x 6 Spline Yoke

Features:

Series 4 PTO assembly designed for finishing mower and flail mower applications
1-3/8 in. x 6-spline yokes on both implement and tractor ends
Includes protective shielding for safe PTO operation
Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM
Provides dependable power transfer between tractor and implement

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series Size:

Type:

PTO Assembly

Used On:

Finishing Mowers, Flail Mowers

40 in. Series 4 PTO Assembly
