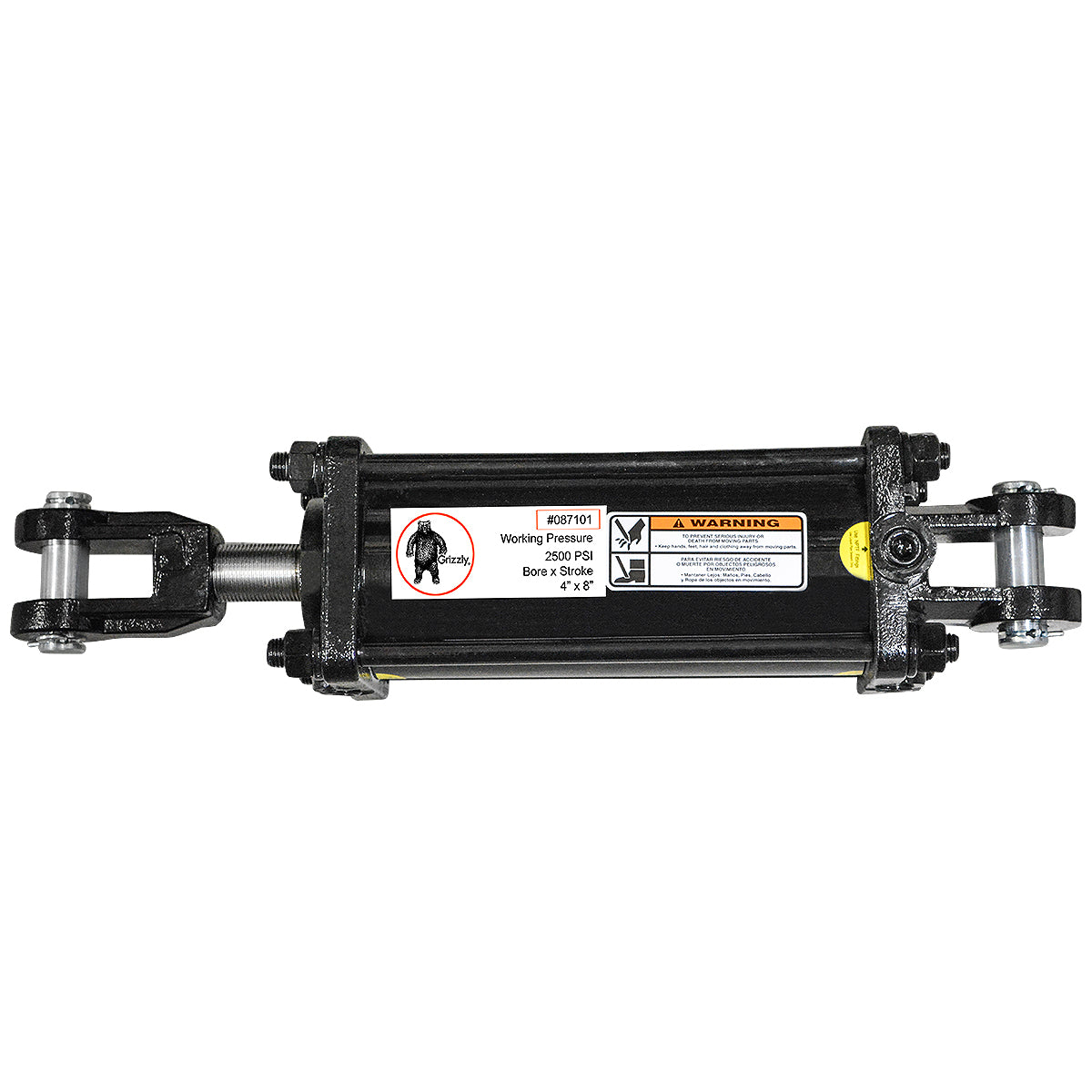

4 in. x 8 in. ASAE Hydraulic Cylinder with Rod

Description

This ASAE hydraulic cylinder is built from high-strength steel for demanding agricultural and industrial environments. It delivers reliable performance for heavy-duty applications on the job or farm.

Designed for smooth push and pull operation, this double-acting cylinder includes tie rods to prevent high-pressure failure. It meets ASAE standards for compatibility with agricultural equipment and offers a wide operating temperature range for year-round use.C95-4016

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

1-1/4 in.

Length - Overall:

28-1/4 in.

Length - Retracted:

20-1/4 in.

Weight:

40 lb

Specification

Bore:

4 in.

Brand:

Grizzly

Features:

High-strength steel construction withstands demanding hydraulic applications
ASAE standard ensures compatibility with agricultural equipment
2,500 PSI pressure rating delivers powerful push and pull performance
Standard ports for easy integration with existing hydraulic systems
Wide temperature range from -22°F to 221°F for reliable all-season operation

Finish:

Zinc Plated

Material:

Steel

Operating Temperature Range:

-30 to 105°C (-22 to 221°F)

Port Thread Type:

NPTF

Ports:

1/2 in.

PSI:

2500

Pull Force:

28,348 lb

Push Force:

31,416 lb

Stroke:

8 in.

Style:

ASAE

Type:

Tie-Rod

4 in. x 8 in. ASAE Hydraulic Cylinder with Rod
