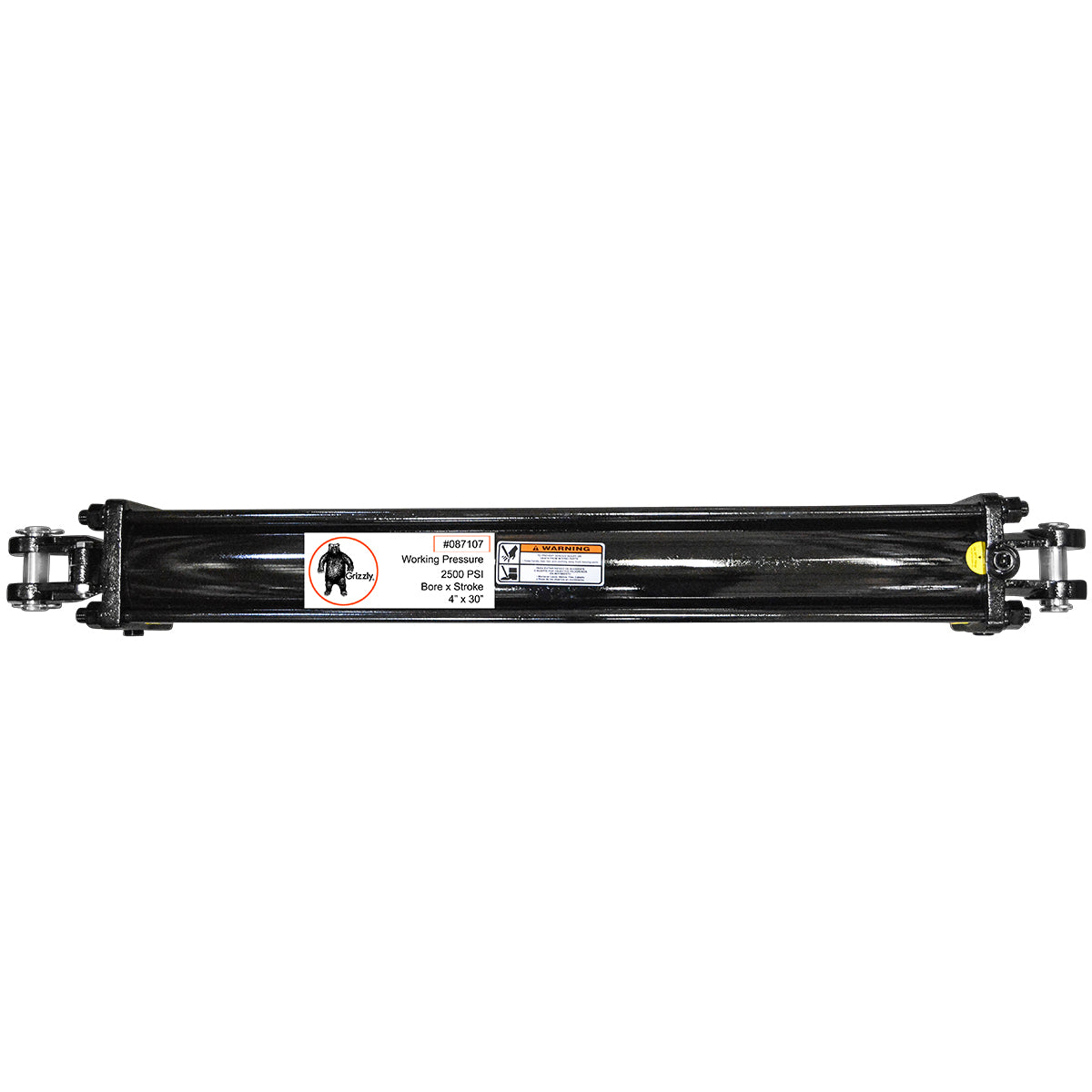

4 in. x 30 in. Hydraulic Cylinder with Rod

Description

This hydraulic cylinder is built from high-strength steel and features zinc plating for superior corrosion resistance in demanding agricultural and industrial environments. It delivers reliable performance for heavy-duty applications on the job or farm.

Designed for smooth push and pull operation, this double-acting cylinder is compatible with standard hydraulic systems. It offers a wide operating temperature range for year-round use in various working conditions.

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

2 in.

Length - Overall:

70-1/4 in.

Length - Retracted:

40-1/4 in.

Weight:

90.5 lb

Specification

Bore:

4 in.

Brand:

Grizzly

Color:

Black

Features:

High-strength steel construction withstands demanding hydraulic applications
Zinc plated finish provides superior corrosion resistance in tough conditions
2,500 PSI pressure rating delivers powerful push and pull performance
Standard 1/2 in. NPTF ports for easy integration with existing hydraulic systems
Wide temperature range from -22°F to 221°F for reliable all-season operation

Finish:

Zinc Plated

Material:

Steel

Operating Temperature Range:

-30 to 105°C (-22 to 221°F)

Port Thread Type:

NPTF

Ports:

1/2 in.

PSI:

2500

Pull Force:

23,562 lb

Push Force:

31,416 lb

Stroke:

30 in.

Style:

Standard

Type:

Tie-Rod

4 in. x 30 in. Hydraulic Cylinder with Rod
