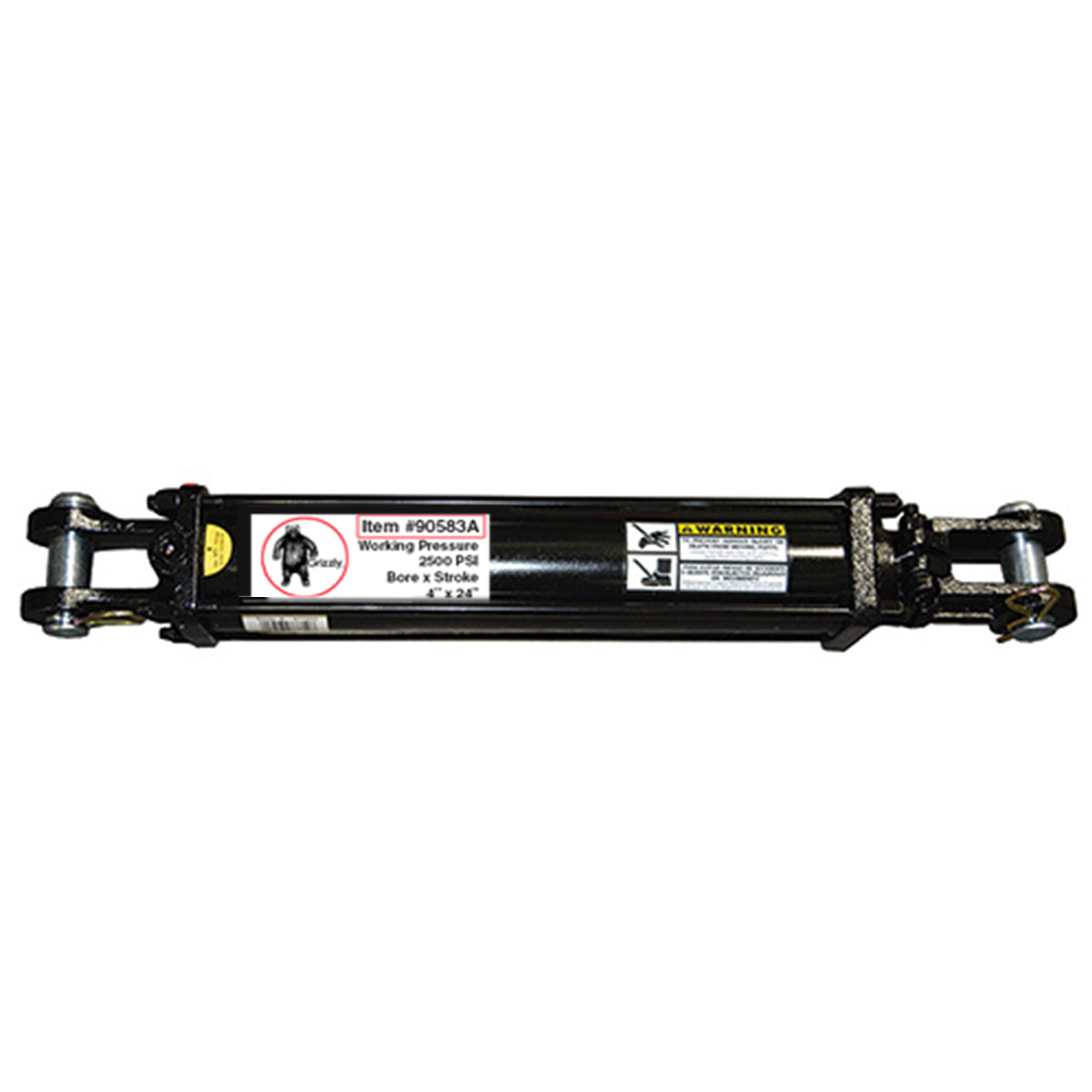

4 in. x 24 in. Hydraulic Cylinder with Rod

Description

This hydraulic cylinder is built from high-strength steel for demanding agricultural and industrial environments. It delivers reliable performance for heavy-duty applications on the job or farm.

Designed for smooth push and pull operation, this double-acting cylinder is compatible with standard hydraulic systems. It offers a wide operating temperature range for year-round use in various working conditions.

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

1-1/2 in.

Length - Retracted:

34-1/4 in.

Weight:

65 lbs.

Specification

Bore:

4 in.

Brand:

Grizzly

Features:

High-strength steel construction withstands demanding hydraulic applications
2,500 PSI pressure rating delivers powerful push and pull performance
Standard ports for easy integration with existing hydraulic systems
Wide temperature range from -22°F to 221°F for reliable all-season operation

Finish:

Zinc Plated

Material:

Steel

Port Thread Type:

NPTF

Ports:

1/2 in.

PSI:

2500

Stroke:

24 in.

Type:

Tie Rod

4 in. x 24 in. Hydraulic Cylinder with Rod
