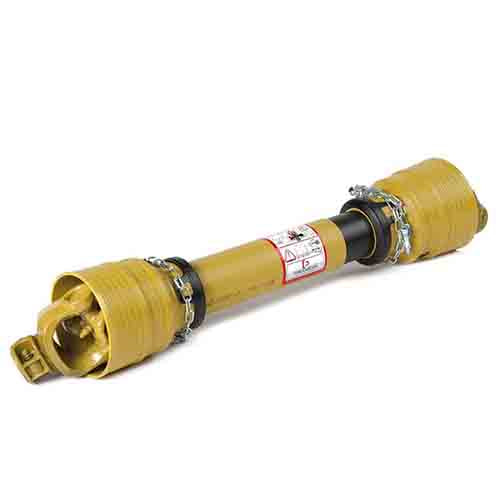

38 in. Series 4 PTO Shaft - 21-Spline Both Ends

Description

Transfer power reliably from your modern compact tractor to 21-spline implements with this durable Eurocardan® TX Series 4 PTO shaft. Features 21-spline yokes on both tractor and implement ends for fine spline engagement and smoother power transfer.

Built with 1-3/8 in. 21-spline yokes on both the tractor and implement sides for modern compatibility. Rated for 35 HP at 540 RPM and 54 HP at 1000 RPM operation. Closed length of 38 in. with safe extended working length of 53 in. Manufacturer Part Number: AX40076#16408.

Key Feature: 21-spline design (fine spline) on both ends provides smoother engagement and higher torque capacity vs traditional 6-spline connections - ideal for modern compact tractors and implements.

Dimension

Extended Length:

53 in.

Length - Overall:

38 in.

Spline Count:

To Fit Shaft Size:

1-3/8 in.

Specification

Assembly Description:

AX40076-16408

Brand:

Eurocardan

Description:

1-3/8 in. x 21 Spline SPL IB

Features:

AX4 series PTO assembly for agricultural driveline applications
1-3/8 in. x 21 spline yokes on both ends
Designed for dependable PTO power transmission
Compatible with tractor and implement PTO connections
Backed by the Agri Supply Satisfaction Guarantee

HP at 1000 RPM:

54 HP

HP at 540 RPM:

35 HP

Series:

AX4

Series Size:

Style:

21 Spline Yoke Both Ends

Type:

PTO Assembly
