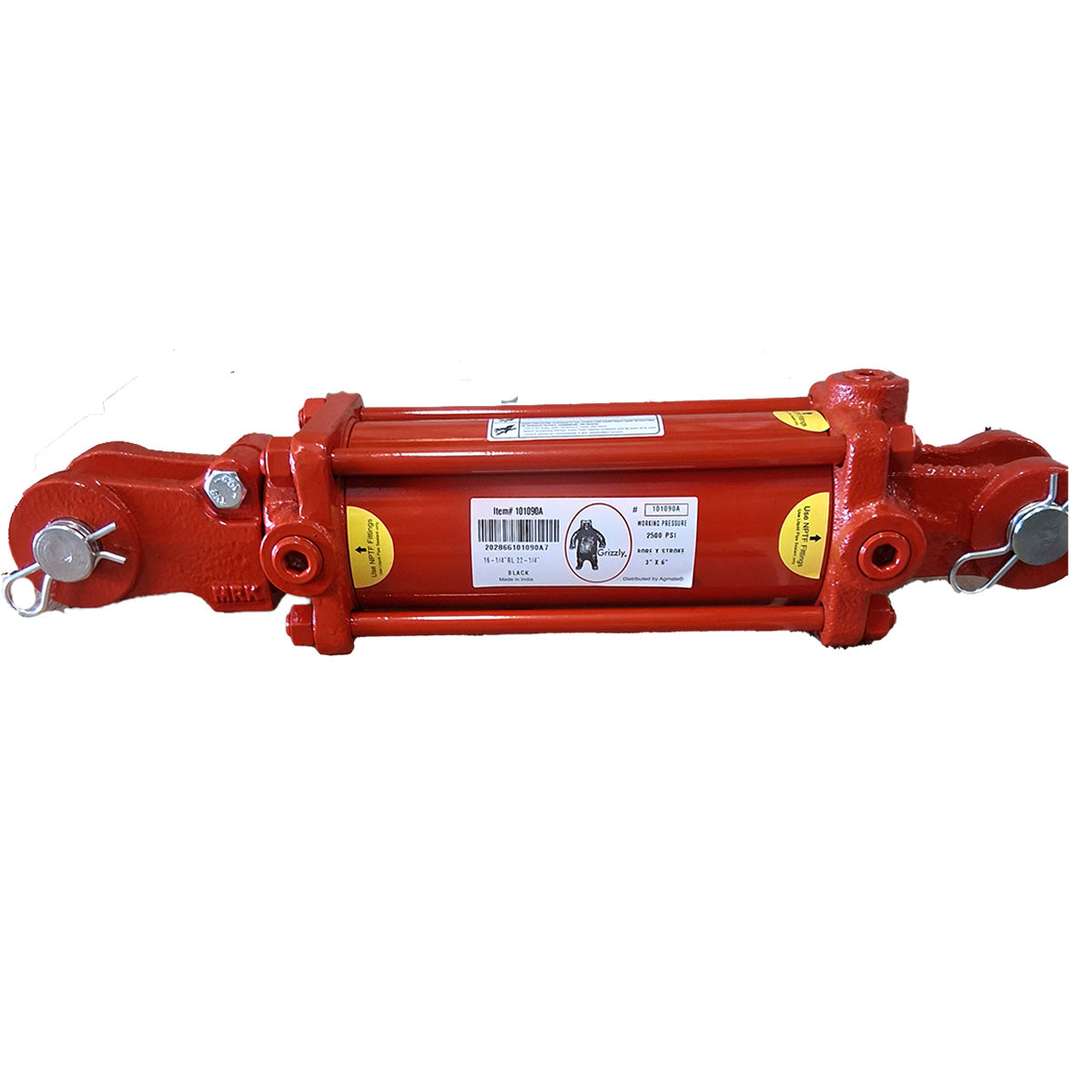

3 in. Bore x 6 in. Stroke x 1-1/4 in. Rod Hydraulic Cylinder

Description

Provide reliable medium duty hydraulic actuation in the most compact package with this durable 3 in. bore hydraulic cylinder. Designed for demanding agricultural applications requiring balanced force output in a very short stroke package.

Built with steel construction and a chrome plated 1-1/4 in. rod for corrosion resistance and long lasting service life. Features 3 in. bore with 6 in. short stroke and 16-1/4 in. compact retracted length. Ideal for tight installation clearances, short-throw applications, bucket tilt operations, quick-attach mechanisms, and equipment requiring high force with minimal stroke.

Key Feature: SHORTEST 3 in. bore cylinder in the family - perfect for tight installation clearances requiring high force but minimal stroke.

Dimension

Diameter - Rod:

1-1/4 in.

Length - Overall:

22-1/4 in.

Length - Retracted:

16-1/4 in.

Weight:

25.4 lb

Specification

Bore:

3 in.

Brand:

Grizzly

Features:

3 in. bore x 6 in. stroke - most compact 3 in. bore cylinder in family
Chrome plated 1-1/4 in. rod for corrosion resistance
Compact 16-1/4 in. retracted length for tight installations
Balanced force output with short throw
Ideal for bucket tilt operations and quick-attach mechanisms

Finish:

Black Painted (Body), Chrome Plated (Rod) (assumed)

Stroke:

6 in.

Style:

Double Acting Tie Rod Cylinder, Compact Short Stroke

Type:

Hydraulic Cylinder
