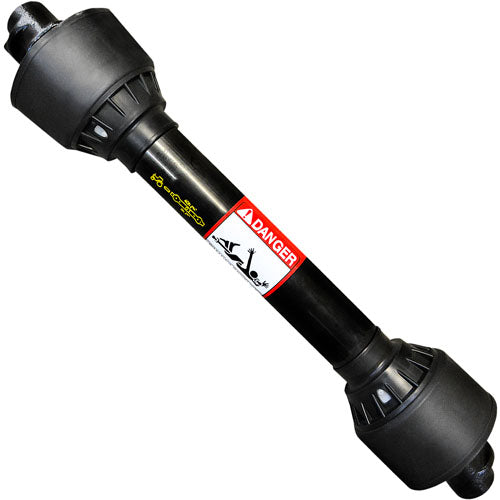

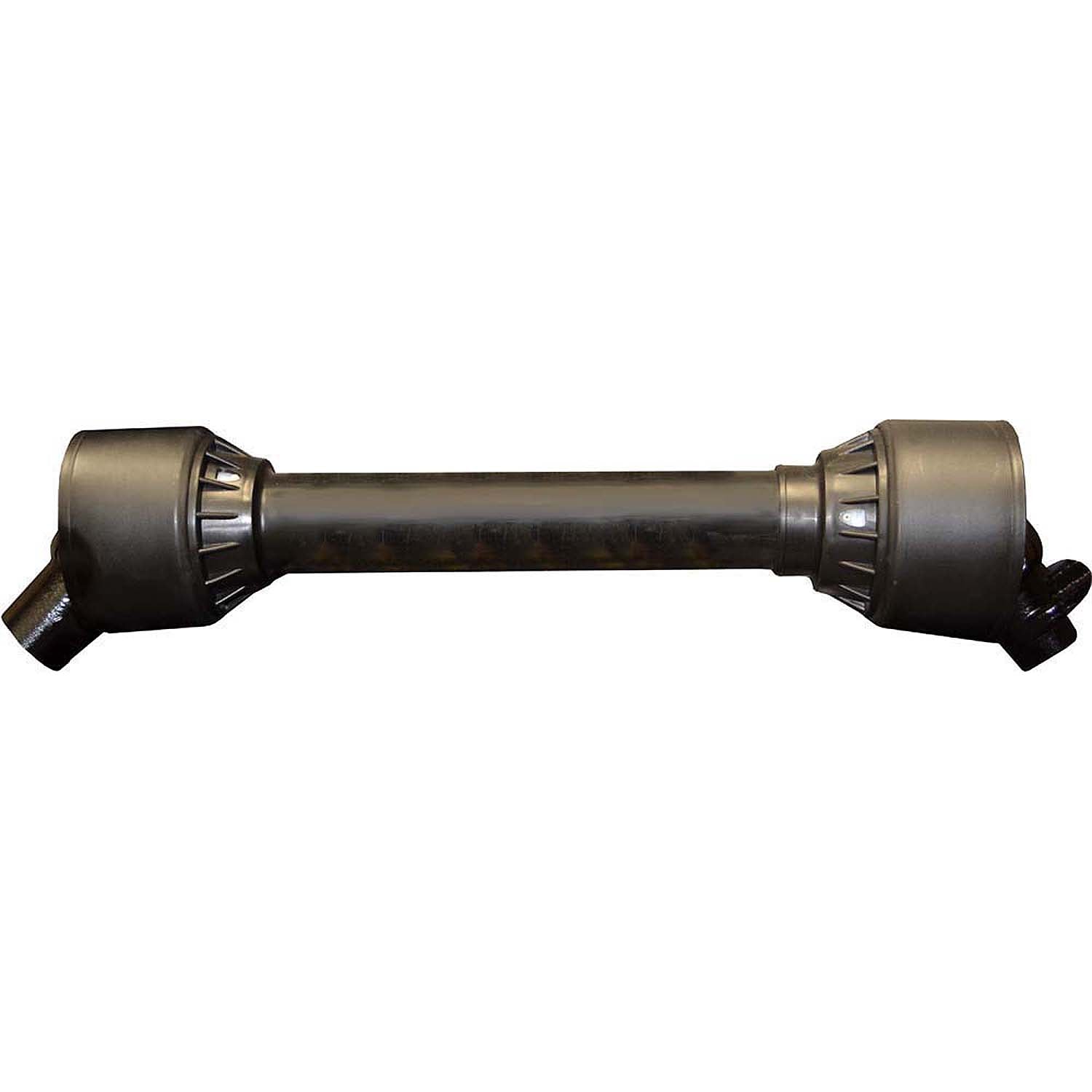

27-5/16 in. Series 1 PTO Shaft with Safety Chains
SKU: #89795
Description
This Series 1 PTO shaft features a tractor end and an implement end for different sized applications. It operates in rotational motion when transferring power from the tractor to connected implements. Safety chains are included, which attach to the exterior of the shaft for secure operation during demanding agricultural tasks.
Built for reliable performance, this PTO shaft delivers consistent power transfer in light-duty farm environments. The dual female yoke configuration ensures balanced power transfer from tractor to implement.
Dimension
Cross Kit Diameter:
22 mm
Cross Kit Width:
54 mm
Diameter - Overall:
1-3/8 in.
Extended Length:
33 in.
Length - Retracted:
27-5/16 in.
Spline Count:
6
Specification
Brand:
Grizzly
Features:
- Safety chains included for secure operation and compliance with safety standards
- Dual female yoke configuration ensures balanced power transfer from tractor to implement
- Series 1 cross kit compatibility allows easy maintenance and part replacement
- Compact design suitable for various light-duty agricultural implements
- Rated for both standard and high-speed PTO speeds
HP at 1000 RPM:
24
HP at 540 RPM:
16
Implement End:
1-3/8 in.
Implement End Component:
Yoke
Implement End Gender:
Female
Implement End Spline Count:
6
Series:
1
Series Size:
1
Tractor End:
1-3/8 in.
Tractor End Component:
Yoke
Tractor End Gender:
Female
Tractor End Spline Count:
6
Type:
PTO Shaft
