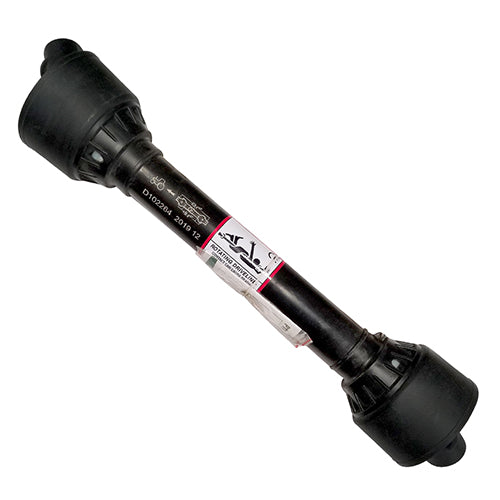

27-3/4 in. Series 1 PTO Shaft with Keyway
SKU: #102264
Description

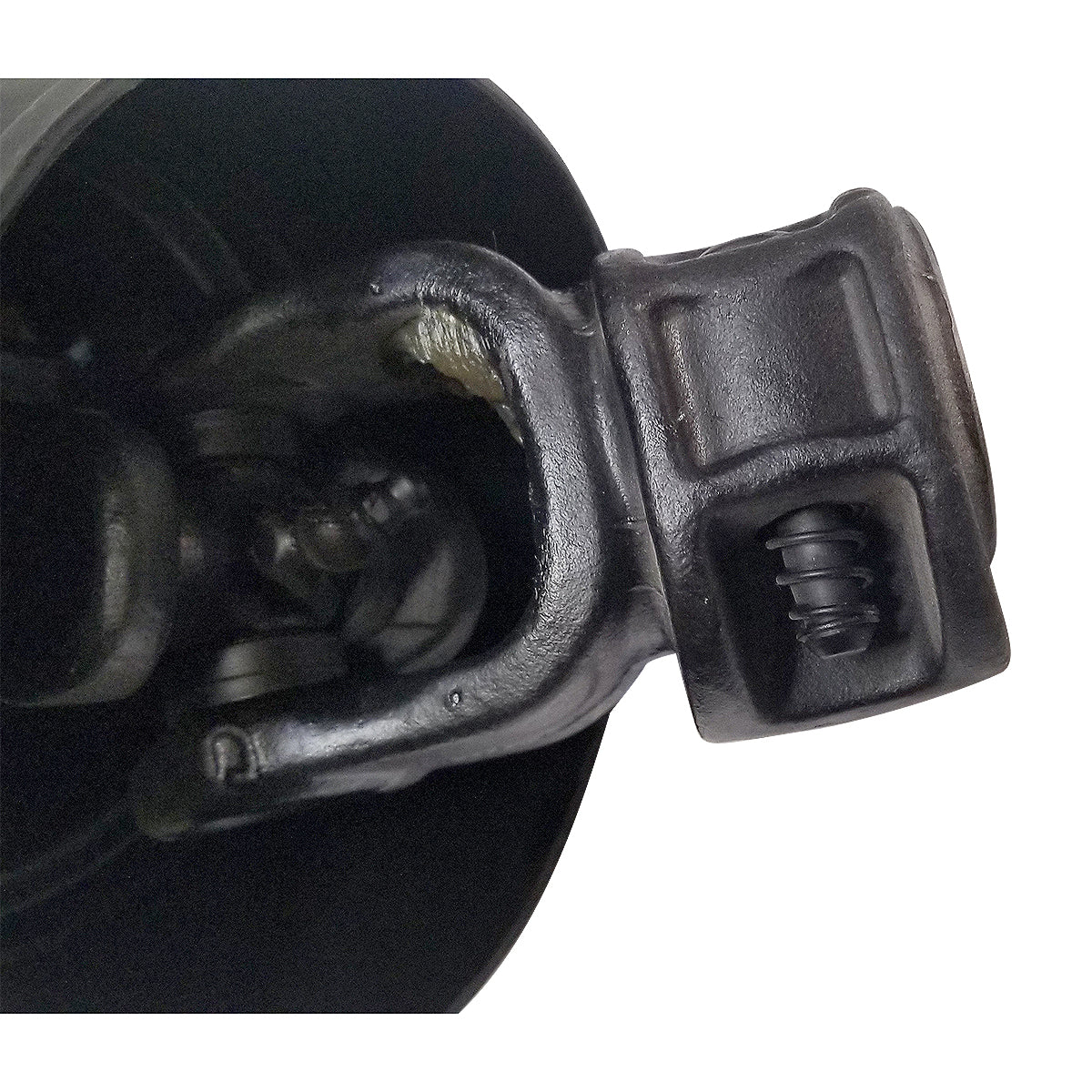

This Series 1 PTO shaft operates in rotational motion and features a tractor end with a splined connection and an implement end with a smooth bore and keyway. It is designed for reliable power transfer in light-duty agricultural applications.

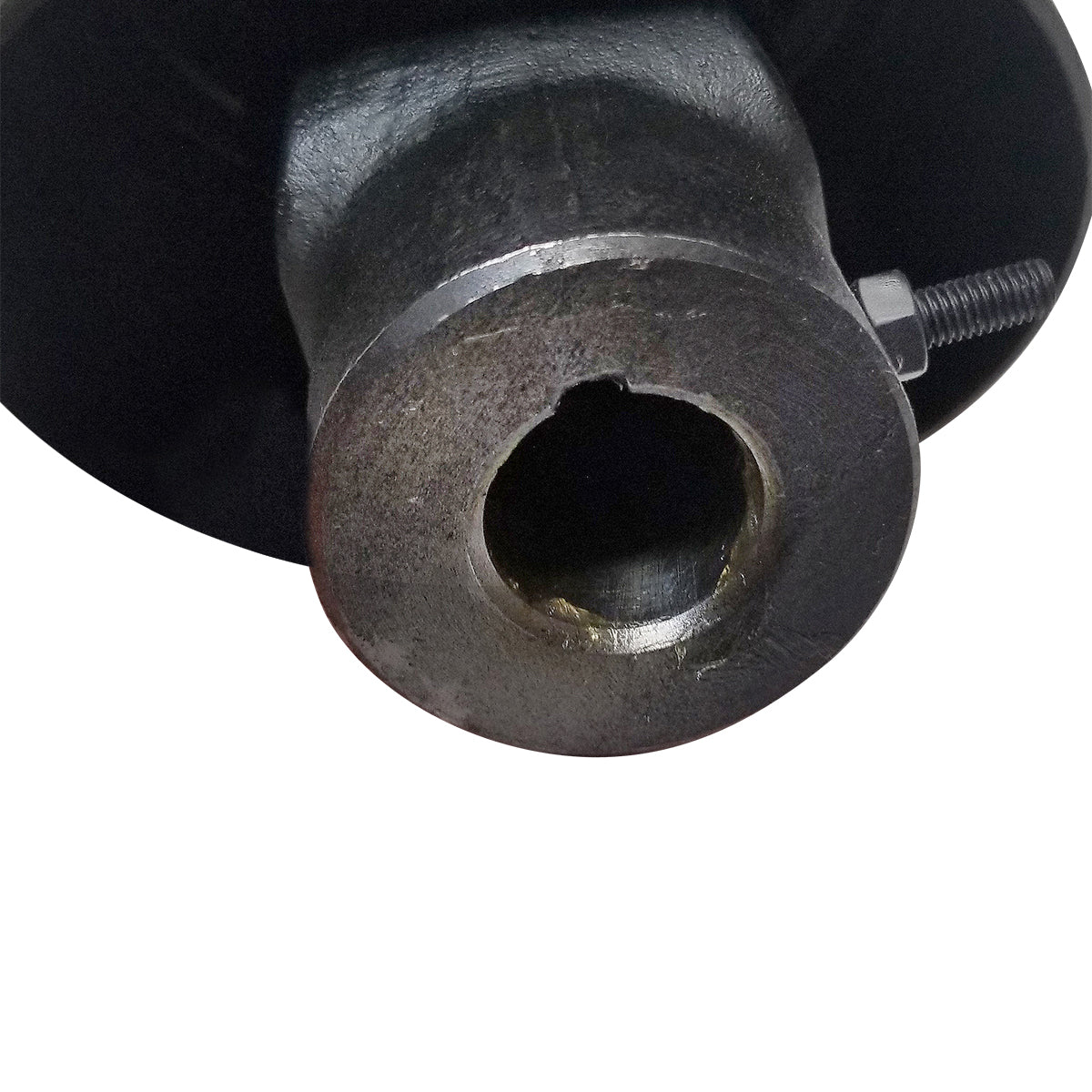

Built for consistent performance, this PTO shaft delivers dependable power transfer in farm environments. The implement end with keyway and set screw ensures secure attachment for compatible equipment.
Dimension
Extended Length:
34-3/16 in.
Implement End Bore Size:
15/16 in.
Length - Retracted:
27-3/4 in.
Spline Count:
6
Weight:
12.8 lb
Specification
Brand:
Grizzly
Features:
- Splined tractor end ensures secure, vibration-resistant power transfer
- Smooth bore implement end with keyway and set screw for versatile equipment compatibility
- Compact design suitable for various light-duty agricultural implements
- Series 1 construction engineered for reliable farm performance
- Rated for both standard and high-speed PTO speeds
HP at 1000 RPM:
24
HP at 540 RPM:
16
Implement End Bore Type:
Smooth Bore
Series:
1
Series Size:
1
Tractor End:
1-3/8 in.
Tractor End Component:
Yoke
Tractor End Spline Count:
6
Type:
PTO Shaft
27-3/4 in. Series 1 PTO Shaft with Keyway
