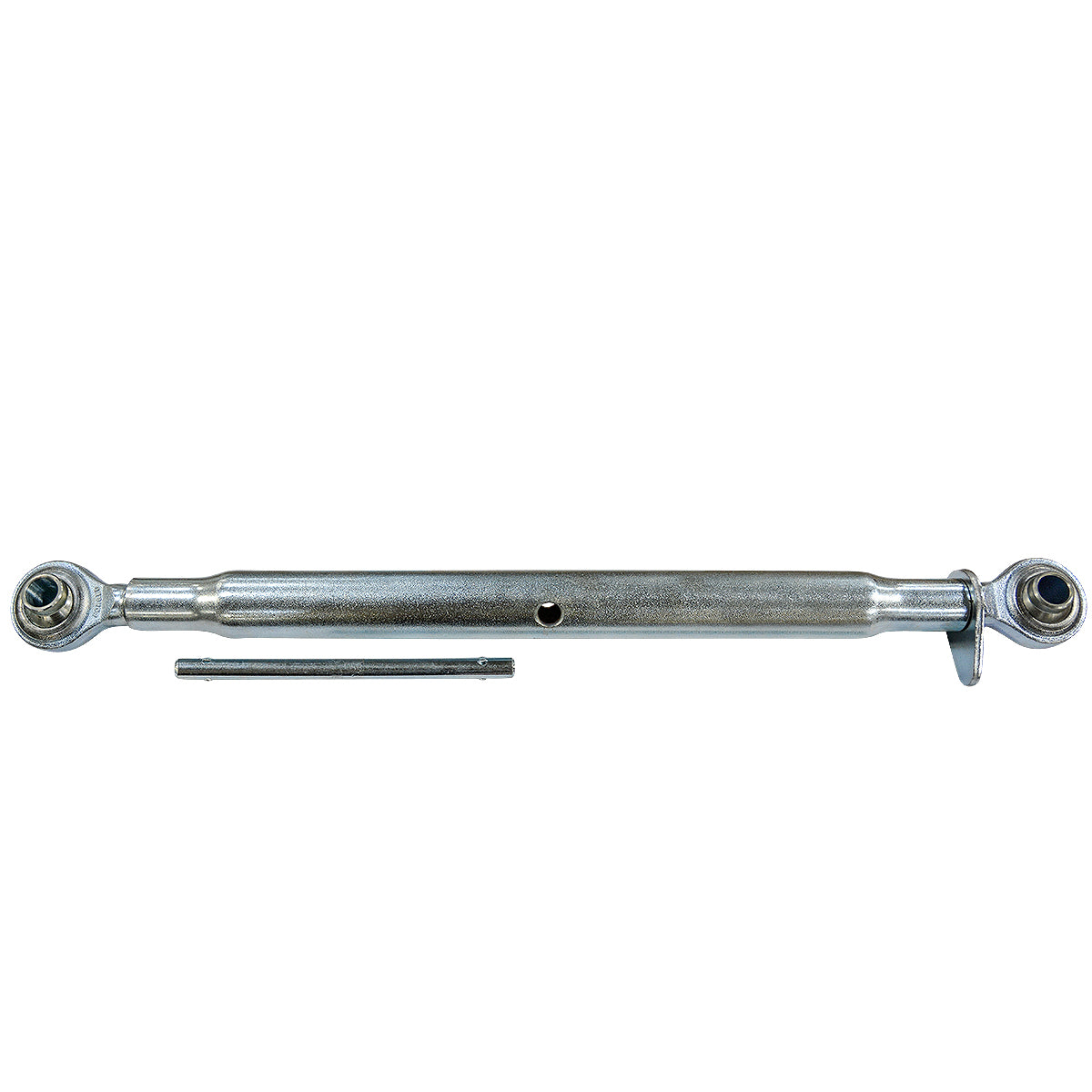

24-5/8 in. to 35 in. CAT 1 Mild Steel Adjustable Top Link Assembly

Description

Adjust and secure your CAT 1 tractor top link connections with this durable long reach adjustable top link assembly. Designed for reliable coupling and precise implement angle control in demanding 3-point hitch applications.

Built from mild steel construction with trivalent zinc finish on the tube and tommy bar, and white plated finish on the eyebolt and lock collar for corrosion resistance and long lasting service life. Features 1-1/8 in. threads for smooth and precise length adjustment from 24-5/8 in. retracted to 35 in. extended. Comes complete with tommy bar for easy operation.

Dimension

Extended Length:

35 in.

Length - Body:

20 in.

Length - Retracted:

24-5/8 in.

Pin Hole Size:

3/4 in.

Weight:

9 lb

Specification

Class:

CAT 1

Features:

Mild steel construction for reliable strength and durability
Multi-finish design: trivalent zinc tube/tommy bar with white plated eyebolt/lock collar
1-1/8 in. threads for smooth length adjustment
Adjustable from 24-5/8 in. retracted to 35 in. extended for maximum reach
Long reach 20 in. body ideal for larger CAT 1 implements

Finish:

Trivalent Zinc (Tube/Tommy Bar), Zinc White Plated (Eyebolt/Lock Collar)

Material:

Mild Steel

Style:

Adjustable Top Link with Turnbuckle Design

Thread:

1-1/8 in.

Type:
