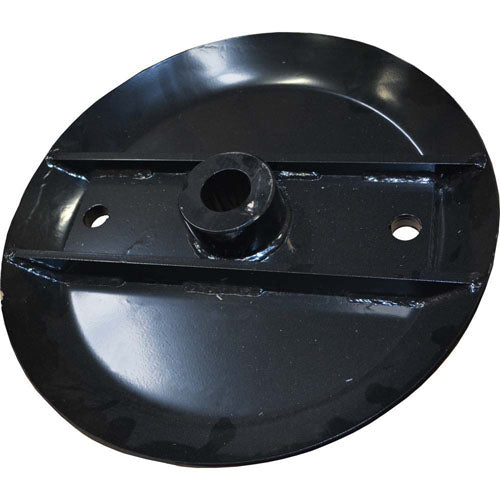

20-1/4 in. x 15-Spline Steel Stump Jumper Blade Pan

Description

Protect your rotary mower blades with this durable heavy duty steel stump jumper. Designed to deflect stumps, rocks, and other obstacles to help prevent blade damage and reduce wear during demanding mowing operations.

Built with a raised bar across the pan for added strength and reliable blade mounting. Features a 2 in. 15-spline center hole for secure gearbox shaft engagement. A dependable replacement to keep your rotary mower operating safely and efficiently.

Dimension

Center Hole:

2 in.

Diameter - Overall:

20-1/4 in.

Spacing:

13-1/2 in

Spline Count:

Weight:

41 lb

Specification

Brand:

Grizzly

Features:

Blade Pan with Raised Bar
Diameter: 20-1/4 in.
Construction: Steel
Overall height of stump jumper, including the hub, is 2-15/16 in.
Protect rotary mower blades
Center hole inside diameter: 2 in. x 15 spline
Bolt hole distance: 13-1/2 in. center to center
The output shaft has 15 Splines
If a 12 Spline Pan is needed, see 89742
Uses (2) 49327A Blade Bolts

Hole Count:

2 (Blade Bolt Holes)

Material:

Heavy Duty Steel

Style:

Blade Pan with Raised Bar

Thread:

13-1/2 in.

Type:

Stump Jumper

Used On:

Rotary mower blade assembly
