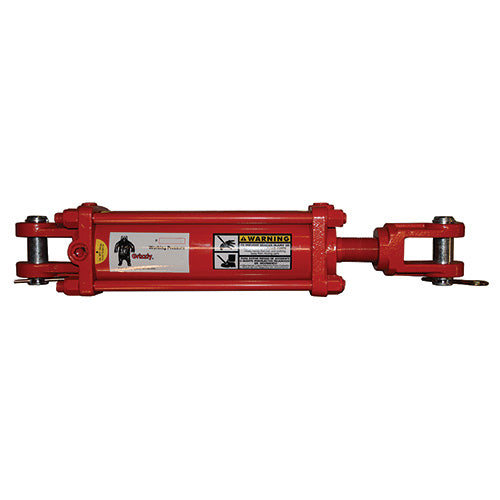

2 in. Bore x 10 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder - R

Description

Provide reliable ASAE-standard hydraulic actuation for light duty applications with this durable 2 in. bore ASAE hydraulic cylinder. Built to ASAE (American Society of Agricultural Engineers) standards for standardized replacement in the smallest agricultural equipment applications.

Built with heavy duty steel construction with red finish and a chrome plated 1-1/8 in. rod for corrosion resistance and long lasting service life. Features 2 in. bore with 10 in. stroke - the SMALLEST ASAE bore in the family - providing balanced force output for light duty applications. 20-1/4 in. retracted length matches the ASAE standard series. Ideal for the smallest sub-compact loaders, garden tractor implements, small utility trailers, and light duty applications requiring ASAE-standard fitment.

Key Feature: SMALLEST ASAE BORE in the family - completes the ASAE progression from 2 in. to 4 in. bores!

Dimension

Diameter - Rod:

1-1/8 in.

Extended Length:

30-1/4 in.

Length - Retracted:

20-1/4 in.

Weight:

20 lbs.

Specification

Bore:

2 in.

Brand:

Grizzly

Color:

Red

Features:

ASAE (American Society of Agricultural Engineers) standard construction
2 in. bore x 10 in. stroke - SMALLEST ASAE bore in the family
Chrome plated 1-1/8 in. rod for corrosion resistance
Red finish body for OEM equipment color matching
Ideal for smallest sub-compact loaders and light duty agricultural implements

Finish:

Red Painted (Body), Chrome Plated (Rod)

Stroke:

10 in.

Style:

ASAE Standard Double Acting Tie Rod Cylinder, Light Duty

Type:

Hydraulic Cylinder

2 in. Bore x 10 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder - Red
