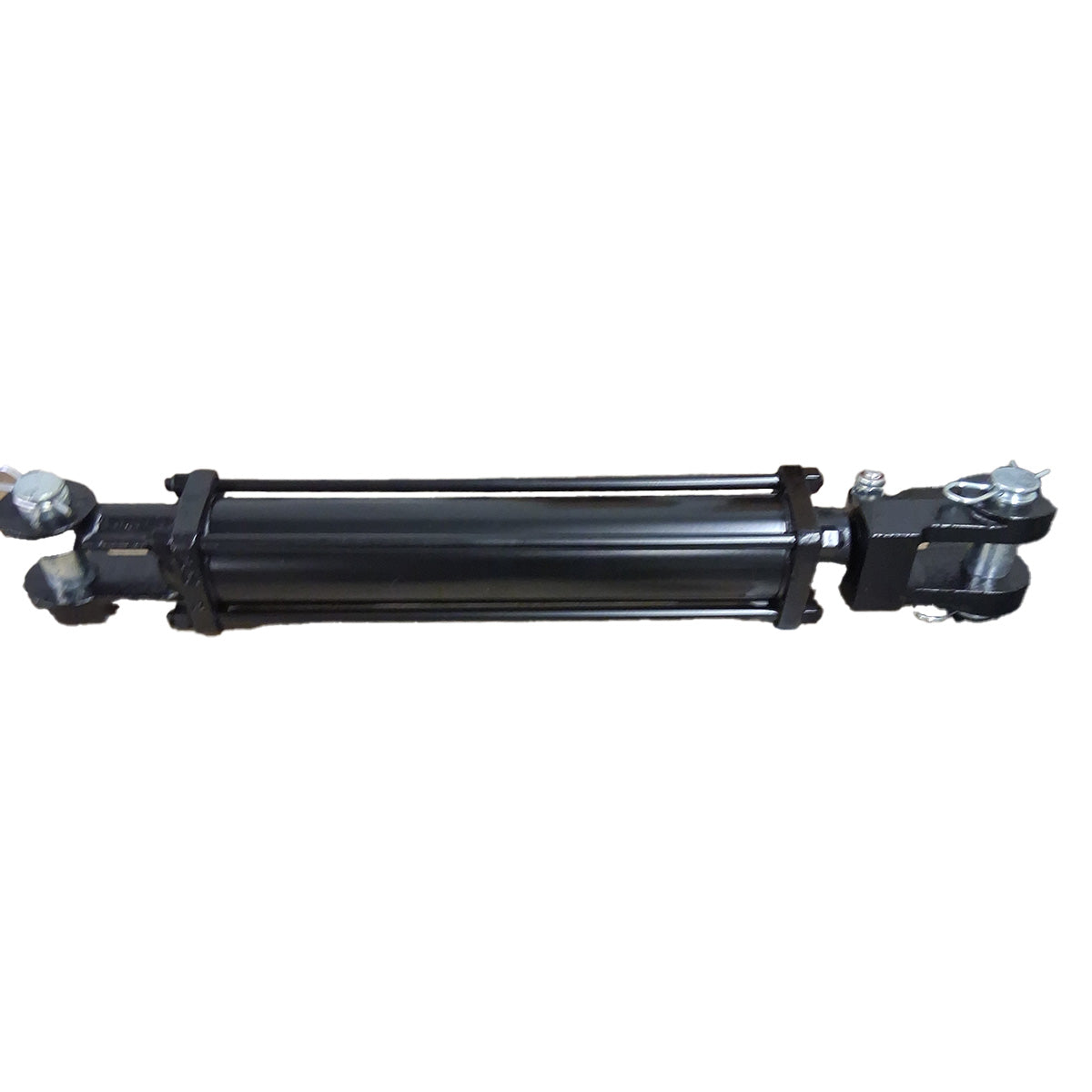

2 in. Bore x 10 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder

Description

Provide reliable ASAE-standard hydraulic actuation for light duty applications with this durable 2 in. bore ASAE hydraulic cylinder. Built to ASAE (American Society of Agricultural Engineers) standards for standardized replacement in the smallest agricultural equipment applications.

Built with heavy duty steel construction and a chrome plated 1-1/8 in. rod for corrosion resistance and long lasting service life. Features 2 in. bore with 10 in. stroke - providing balanced force output for light duty applications. 20-1/4 in. retracted length matches the ASAE standard series. Ideal for the smallest sub-compact loaders, garden tractor implements, small utility trailers, and light duty applications requiring ASAE-standard fitment.

Key Feature: ASAE-compliant design provides standardized interchangeability with common agricultural equipment specifications for light duty applications.

Dimension

Diameter - Rod:

1-1/8 in.

Length - Overall:

30-1/4 in.

Length - Retracted:

20-1/4 in.

Weight:

19 lb

Specification

Bore:

2 in.

Brand:

Grizzly

Features:

ASAE (American Society of Agricultural Engineers) standard construction
2 in. bore x 10 in. stroke - small ASAE bore
Chrome plated 1-1/8 in. rod for corrosion resistance
ASAE standardized dimensions for OEM replacement
Ideal for smallest sub-compact loaders and light duty agricultural implements

Stroke:

10 in.

Style:

ASAE Standard Double Acting Tie Rod Cylinder, Light Duty

Type:

Hydraulic Cylinder

2 in. Bore x 10 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder
