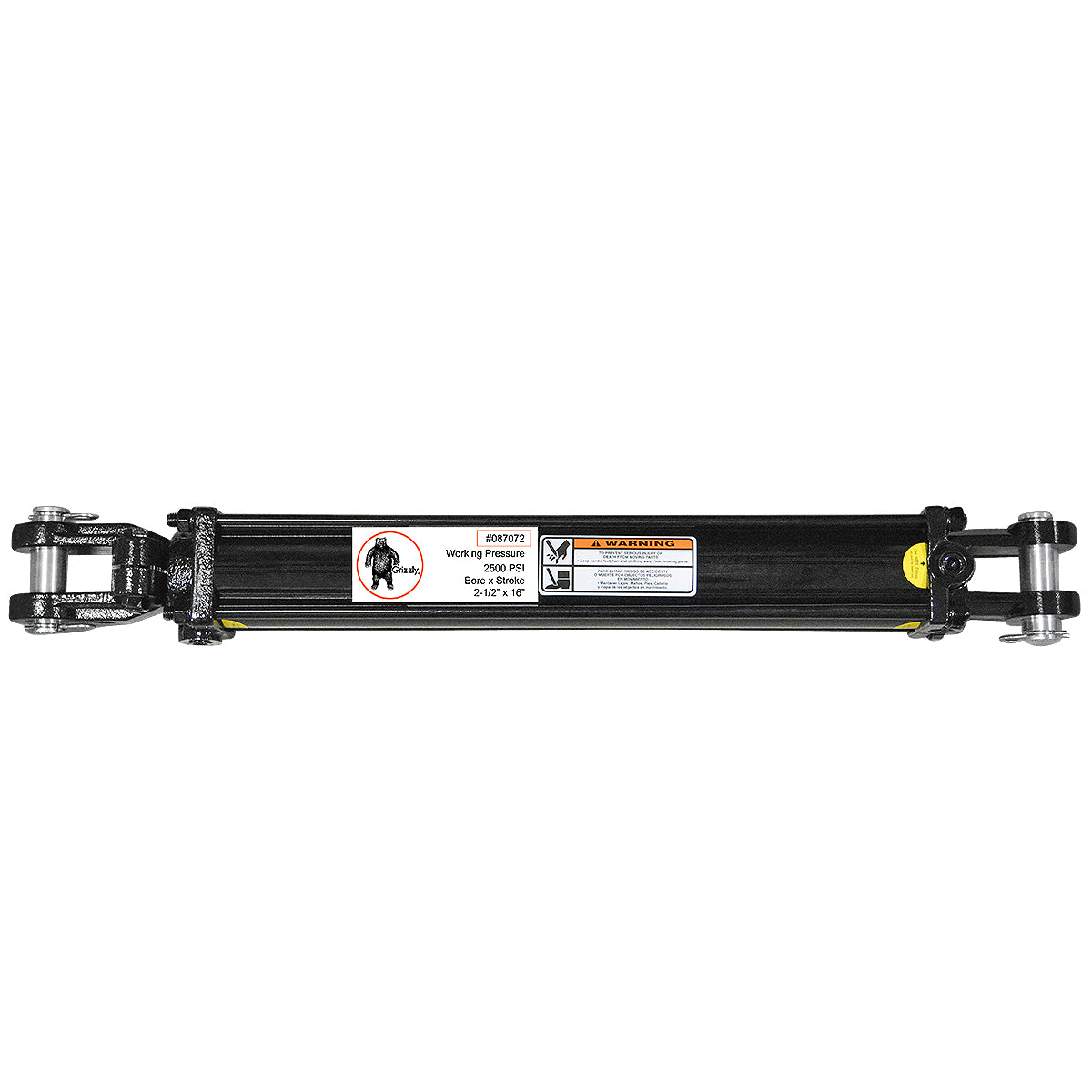

2-1/2 in. x 16 in. Hydraulic Cylinder with Rod

Description

This hydraulic cylinder is built from high-strength steel for demanding agricultural and industrial environments. It delivers reliable performance for heavy-duty applications on the job or farm.

Designed for smooth push and pull operation, this double-acting cylinder includes tie rods to prevent high-pressure failure. It features dual NPT ports for greater flexibility, a piston seal, and grade 5 clevis bolts for extra durability. The nitrile rubber wiper seal and O-rings provide reliable sealing for consistent performance. It is compatible with standard hydraulic systems and offers a wide operating temperature range for year-round use in various working conditions.

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

1-1/8 in.

Length - Overall:

42-1/4 in.

Length - Retracted:

26-1/4 in.

Weight:

28 lb

Specification

Bore:

2-1/2 in.

Brand:

Grizzly

Color:

Black

Features:

High-strength steel construction withstands demanding hydraulic applications
Integrated tie rods prevent cylinder failure under extreme pressure
Dual NPT ports provide greater flexibility for hydraulic system integration
Grade 5 clevis bolts deliver extra durability under heavy loads
Nitrile rubber wiper seal and O-rings ensure reliable sealing performance

Finish:

Zinc Plated

Material:

Steel

Operating Temperature Range:

-30 to 105°C (-22 to 221°F)

Port Thread Type:

NPTF

Ports:

3/8 in.

PSI:

2500

Pull Force:

9,787 lb

Push Force:

12,272 lb

Stroke:

16 in.

Style:

Standard

Type:

Tie-Rod
