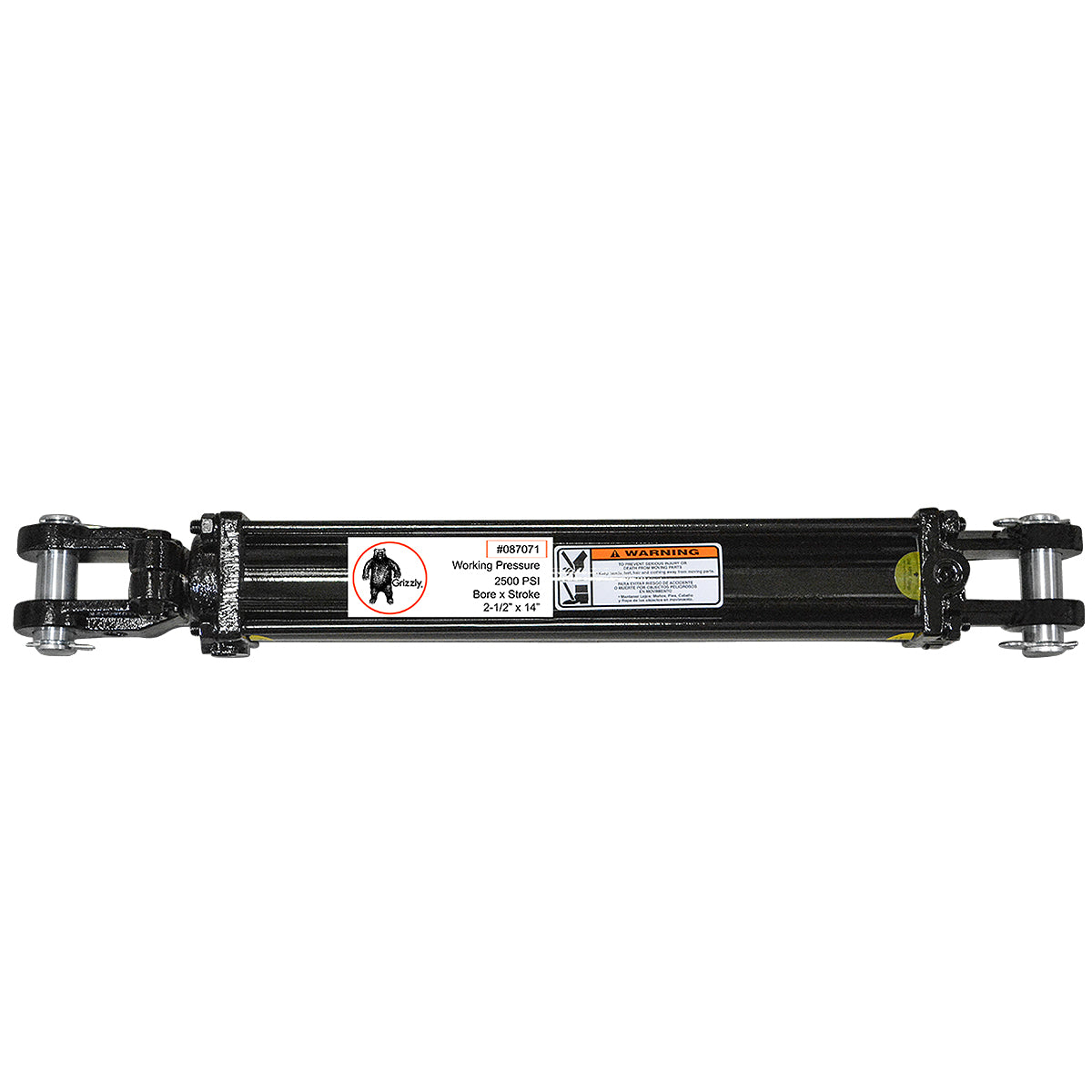

2-1/2 in. x 14 in. Hydraulic Cylinder with Rod

Description

This hydraulic cylinder is built from high-strength steel for demanding agricultural and industrial environments. It delivers reliable performance for heavy-duty applications on the job or farm.

Designed for smooth push and pull operation, this double-acting cylinder includes tie rods to prevent high-pressure failure. It is compatible with standard hydraulic systems and offers a wide operating temperature range for year-round use in various working conditions.

Dimension

Diameter - Pin:

1 in.

Diameter - Rod:

1-1/8 in.

Length - Retracted:

24-1/4 in.

Weight:

25.5 lbs.

Specification

Bore:

2-1/2 in.

Brand:

Grizzly

Color:

Black

Features:

High-strength steel construction withstands demanding hydraulic applications
Integrated tie rods prevent cylinder failure under extreme pressure
2,500 PSI pressure rating delivers powerful push and pull performance
Standard ports for easy integration with existing hydraulic systems
Wide temperature range from -22°F to 221°F for reliable all-season operation

Finish:

Zinc Plated

Material:

Steel

Port Thread Type:

NPTF

Ports:

3/8 in.

PSI:

2500

Stroke:

14 in.

Style:

Standard

Type:

Tie-Rod

2-1/2 in. x 14 in. Hydraulic Cylinder with Rod
