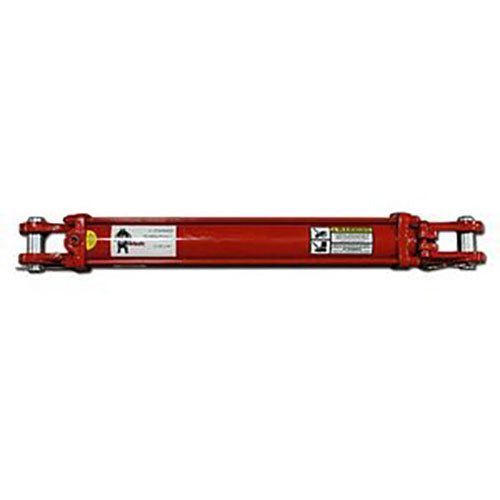

2-1/2 in. Bore x 16 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder

Description

Provide reliable ASAE-standard hydraulic actuation for loader lift applications with this durable 2-1/2 in. bore ASAE hydraulic cylinder. Built to ASAE (American Society of Agricultural Engineers) standards for standardized replacement in sub-compact loader applications.

Built with heavy duty steel construction with red finish and a chrome plated 1-1/8 in. rod for corrosion resistance and long lasting service life. Features 2-1/2 in. bore with 16 in. LONG stroke - providing extended lift range in a compact bore package. 26-1/4 in. retracted length with 42-1/4 in. extended length. Ideal for sub-compact tractor loader LIFT cylinders (not tilt), providing the extended reach needed for material handling operations.

Key Feature: 16 in. long stroke is ideal for LOADER LIFT applications requiring extended reach - perfect for sub-compact tractor loader lift cylinders.

Dimension

Diameter - Rod:

1-1/8 in.

Length - Overall:

42-1/4 in.

Length - Retracted:

26-1/4 in.

Weight:

26.9 lb

Specification

Bore:

2-1/2 in.

Brand:

Grizzly

Color:

Red

Features:

ASAE (American Society of Agricultural Engineers) standard construction
2-1/2 in. bore x 16 in. LONG stroke - extended reach for lift applications
Chrome plated 1-1/8 in. rod for corrosion resistance
Red finish body for equipment color matching
Ideal for sub-compact loader LIFT cylinders

Finish:

Red Painted (Body), Chrome Plated (Rod)

Stroke:

16 in.

Style:

ASAE Standard Double Acting Tie Rod Cylinder, Long Stroke

Type:

Hydraulic Cylinder

2-1/2 in. Bore x 16 in. Stroke x 1-1/8 in. Rod ASAE Hydraulic Cylinder - Red
