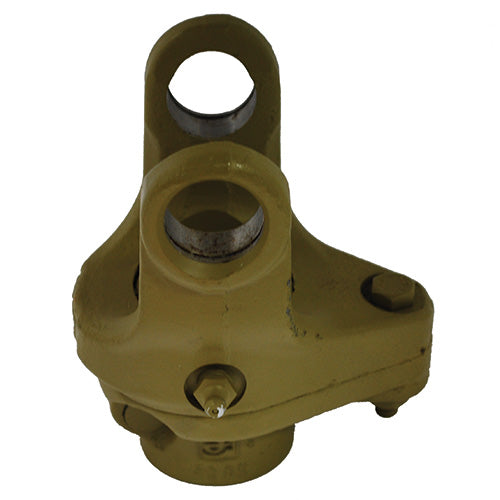

1484037 4-LC4 1-3/8 in. 6-Spline Shear Pin Flange Yoke

Product Documents

33034_cat_002.pdf

Description

This 1484037 4-LC4 1-3/8 in. 6-spline shear pin flange yoke is a quality replacement component designed to fit 1-3/8 in. 6-spline connections. This yoke is used when a shear bolt is required but there is no hole in the gearbox, providing a versatile solution for PTO shaft applications.

Built for durability and dependable performance, this shear pin flange yoke delivers reliable overload protection and consistent operation in demanding agricultural field conditions.

Dimension

Spline Count:

Weight:

5.5 lb

Specification

Brand:

Eurocardan

Eurocardan Part #:

1484037

Features:

Shear pin flange yoke for 1-3/8 in. 6-spline connections
Designed for applications needing a shear bolt without a gearbox hole
Provides reliable overload protection for PTO applications
Durable construction for demanding agricultural use
Direct replacement for convenient maintenance

Implement End:

1-3/8 in.

Series:

4-LC4

Series Size:

To Fit:

1-3/8 in. 6-Spline Connections

Type:

Flange
