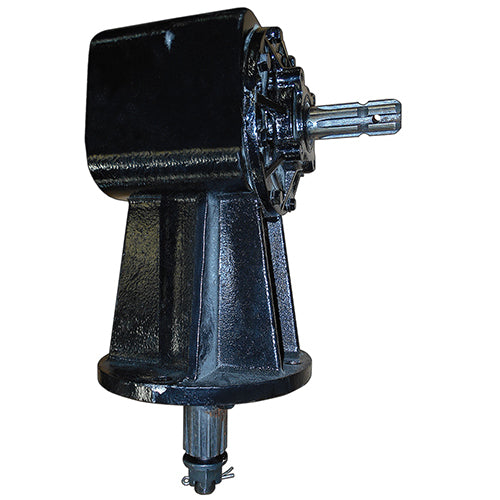

RW810 GEARBOX 1 3/8-6 SP SHAFT

125 HP Tall Square Gearbox

SKU: #106488

125 HP Tall Square Gearbox

SKU: #106488
Description

Maintain reliable power transmission in rotary mower applications with this 125 HP tall square gearbox. Designed for demanding agricultural use, it provides efficient transfer of power from the PTO driveline to cutting components while supporting dependable field performance.

Featuring a 1-3/8 in. 6-spline input shaft and a 2 in. output shaft, this gearbox is engineered for heavy-duty operation. The 1:1.46 gear ratio helps deliver efficient performance for rotary mower and cutter applications. Hub not included.

Dimension
Dimensions:
  • Mounting Pattern: 8 in.
  • Mounting Center: 5-1/2 in.
  • Input Shaft: 1-3/8 in., 6-Spline
  • Output Shaft: 2 in., 15-Spline
Input Shaft Length:
1-3/8 in.
Output Shaft Length:
2 in.
Spline Count:
6
Weight:
106 lb
Specification
Brand:
Grizzly
Features:
  • Rated for 125 HP applications
  • Tall square gearbox design
  • 1:1.46 gear ratio for efficient power transfer
  • 1-3/8 in. 6-spline input shaft
  • 2 in. 15-spline output shaft
  • 8 in. mounting pattern with four mounting holes
Mounting Hole:
(4) 3/4 in. Holes
Ratio:
1:1.46
Type:
Gearbox
125 HP Tall Square Gearbox
