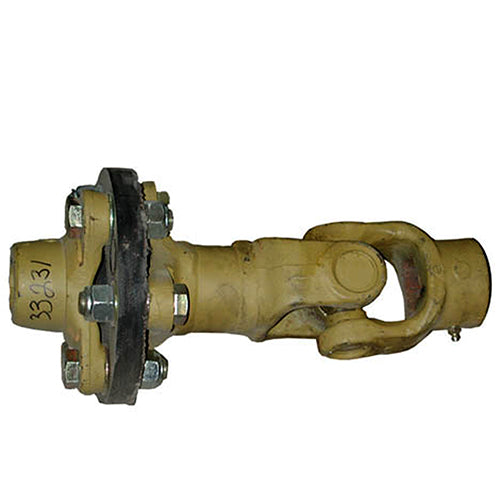

12-13/16 in. Series 5 Flex Coupler Assembly

Product Documents

33231_cat_002.pdf

Description

This Series 5 flex coupler assembly is designed to connect gear box connector shafts for flex wing mowers. It features splined connections on both ends, providing secure power transfer between the tractor and implement.

Built for heavy-duty performance, this flex coupler assembly delivers reliable operation in demanding mowing applications. The yoke design without pin hole ensures a specific fit for compatible equipment configurations.

Dimension

Diameter - Overall:

1-3/8 in.

Length - Overall:

12-13/16 in.

Spline Count:

Weight:

19 lb

Specification

Assembly Description:

GE5325-SPL Single Pad

Brand:

Eurocardan

Features:

Dual splined yoke configuration ensures balanced power transfer between tractor and implement
Compatible with slip clutch attachments for overload protection
Compact assembly design suitable for 8-foot and 10-foot flex wing mower configurations
3 gear box connections provide versatile mounting options for various mower setups
Compatible with both 8-foot and 10-foot flex wing mower configurations for flexible equipment matching

HP at 1000 RPM:

HP at 540 RPM:

Implement End:

1-3/8 in.

Series:

Series Size:

Tractor End:

1-3/8 in.

Type:

Flex Coupler

Used On:

8-foot flex coupler with u-joint, flex wing mowers
