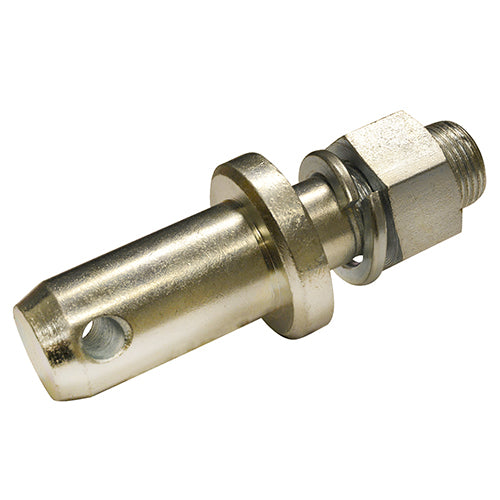

1-7/16 in. x 4-27/32 in. Category 2 to 3 Lower Link Pin

SKU: #106047
Description

This lower link pin is designed to adapt Category 2 tractor lift arms for use with Category 3 implements, providing a secure and dependable connection between tractors and attached equipment. It is well suited for agricultural, landscaping, and utility applications where reliable implement attachment is essential.

Manufactured from durable mild steel and finished with a trivalent white zinc coating for corrosion resistance, this lower link pin is built to withstand demanding operating conditions and provide long-lasting service. The pin features a 1-1/8 in.-12 thread specification and includes a 1-1/8 in.-12 UNF regular nut along with a 1-1/8 in. spring (lock) washer, providing the hardware needed for convenient installation and replacement.

Dimension
Diameter - Pin:
1-7/16 in.
Length - Overall:
5 3/4"
Pin Hole:
15/32 in.
Weight:
3 lb
Specification
Description:
Forged
Features:



  • Designed to connect Category 2 lift arms to Category 3 implements
  • Manufactured from durable mild steel
  • Trivalent white zinc finish helps resist corrosion
  • Provides a secure connection between tractor and implement
  • Includes a UNF regular nut for installation



Finish:
Trivalent White Zinc
Material:
Mild Steel
Popular Code:
P7243
Thread Diameter:
1 1/8" NF
Thread Length:
3 3/8"
Type:
Lower Link Pin
Usable Length:
1 7/8"
