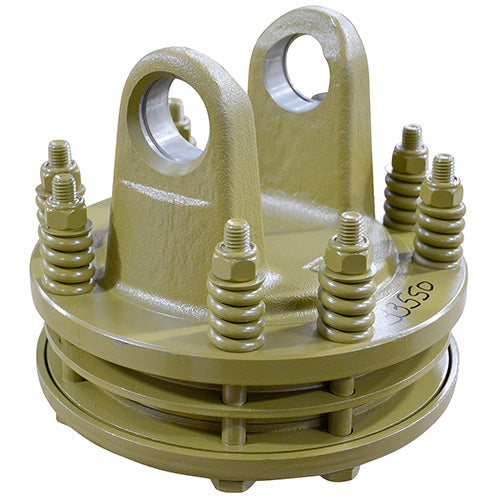

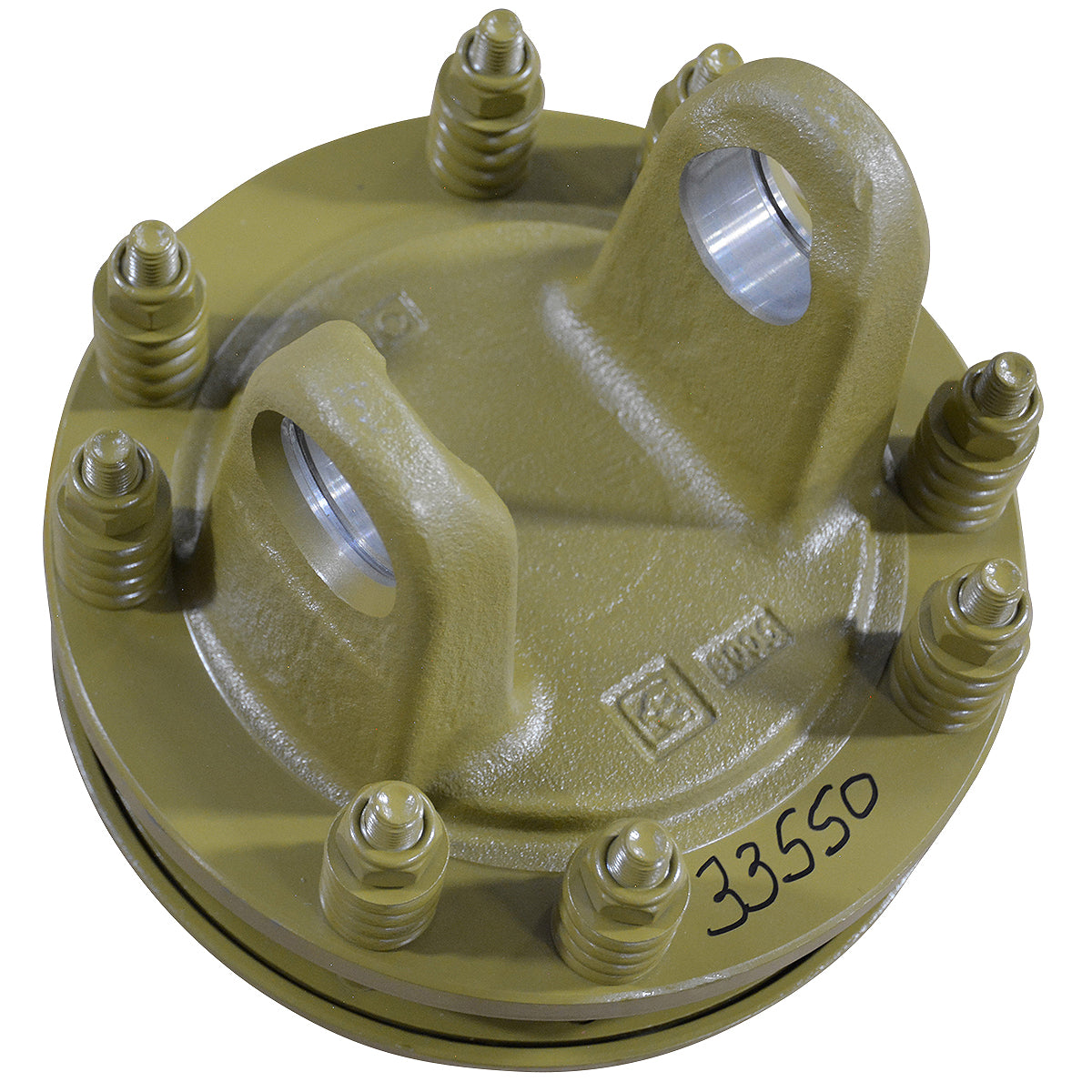

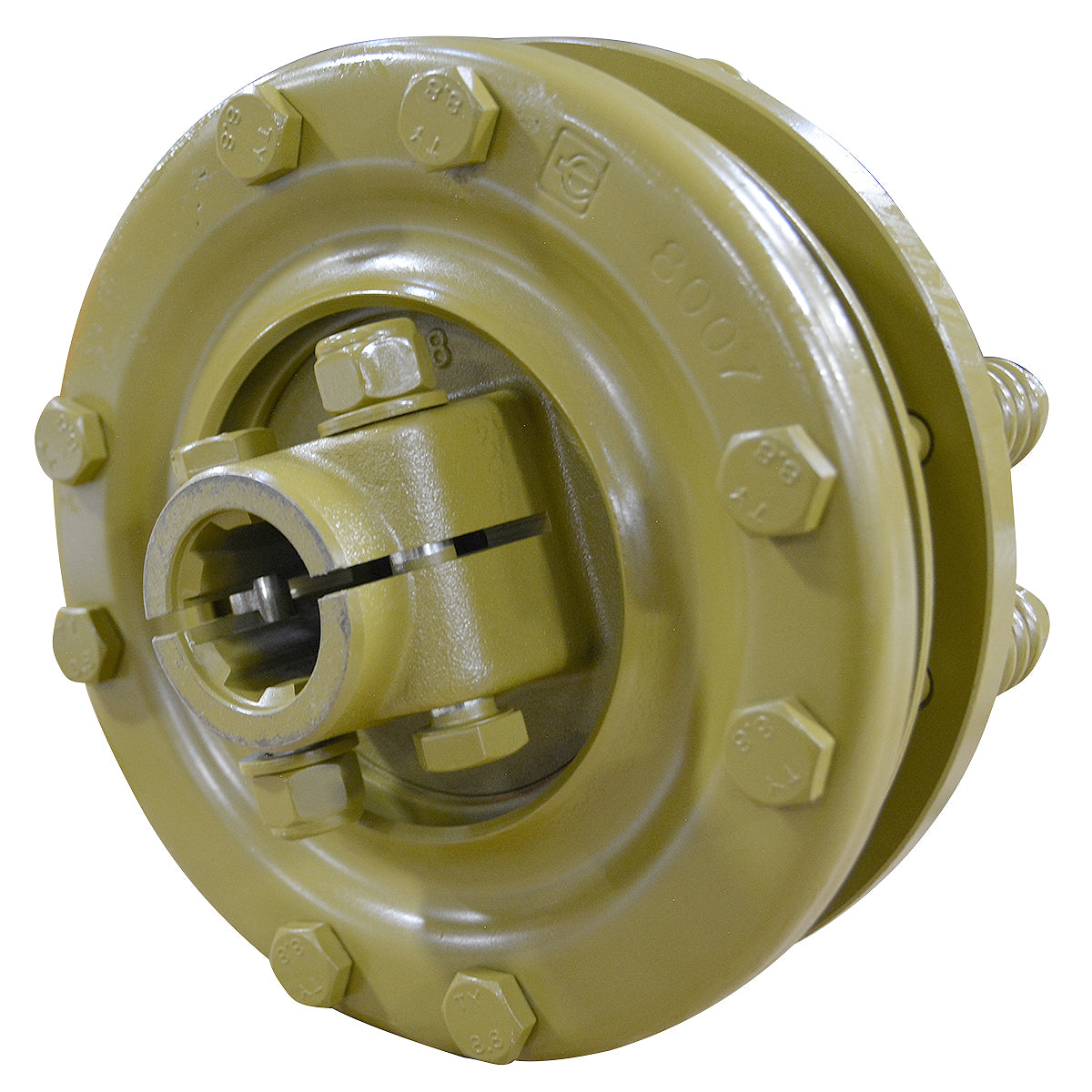

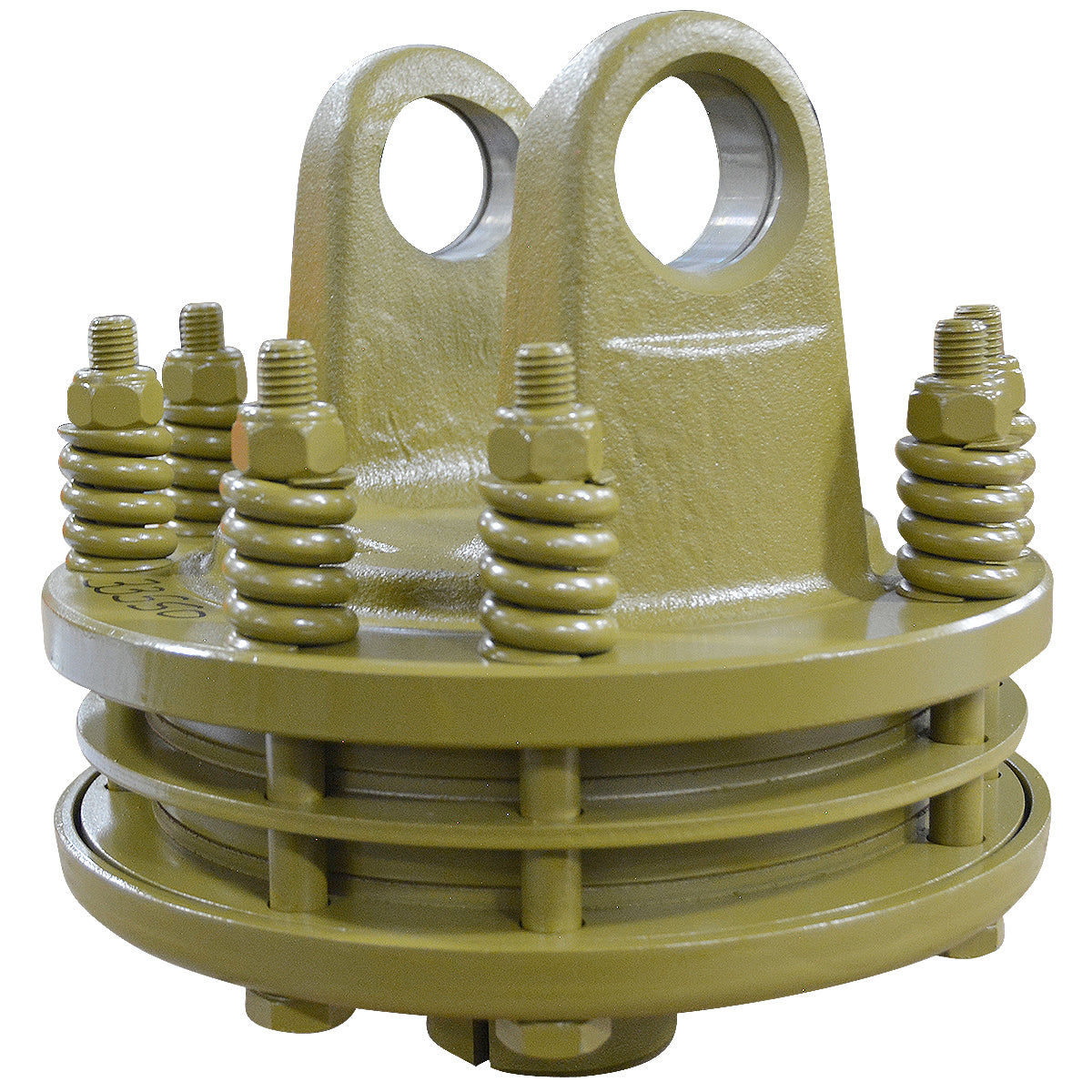

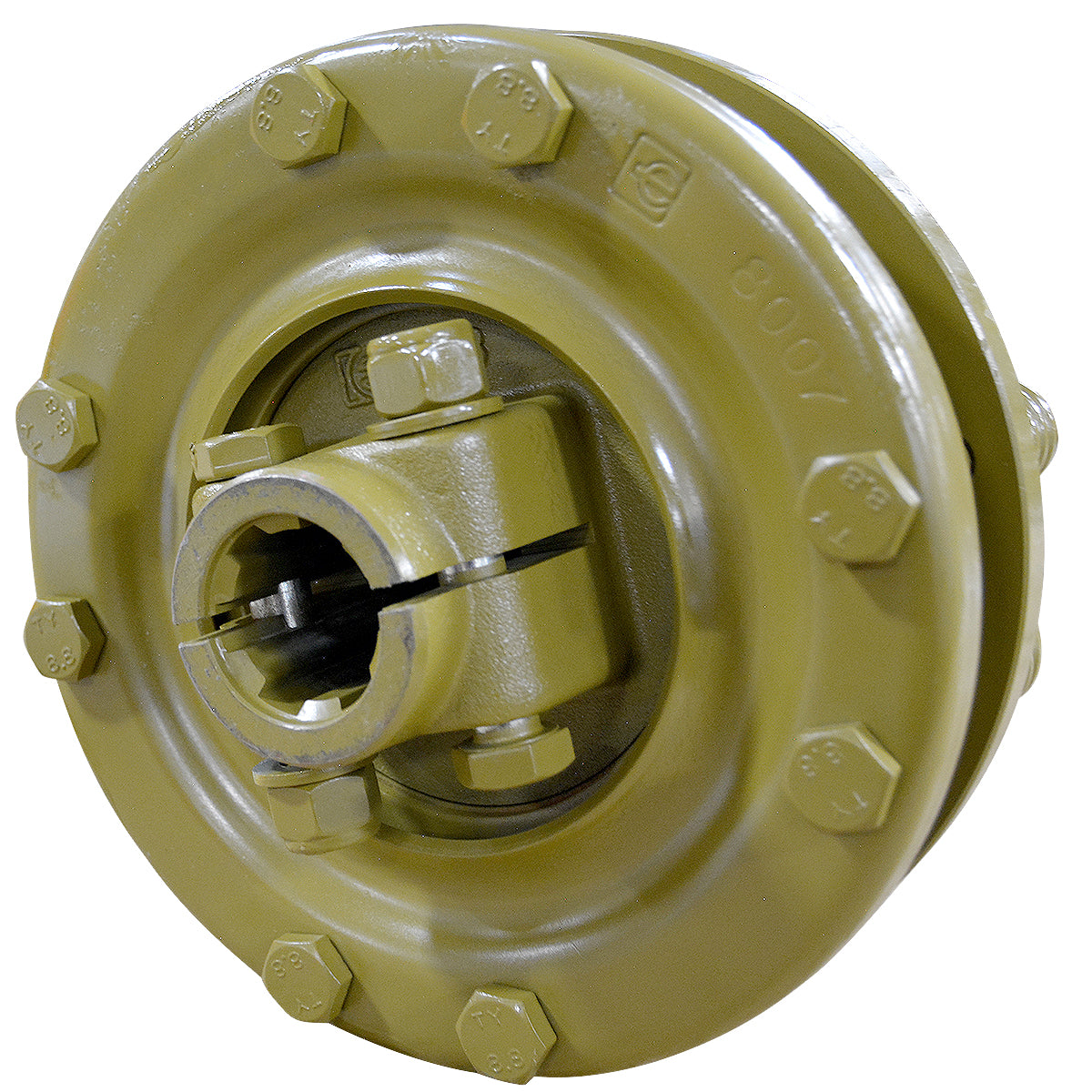

1-3/8 in. x 6 Spline Series 8 FD4 Slip Clutch with Yoke

SKU: #33550
Description

This Series 8 FD4 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The friction disc design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.

Built with a 1-3/8 in. x 6 spline double bolt yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD4 series is widely used across a range of farming applications where overload protection is essential.

Dimension
Cross Height:
4-13/16 in.
Cross Kit Diameter:
4-13/64 in.
Shaft Size:
1-3/8 in.
Spline Count:
6
Weight:
29 lb
Specification
Brand:
Eurocardan
Cross Kit Use:
32194
Eurocardan Part #:
1468031
Features:



  • 4-disc friction design for controlled torque limiting
  • 1-3/8 in. x 6 spline double bolt end for secure PTO fit
  • Series 8 rated for medium-duty implements
  • Replaceable friction disc for easy maintenance
  • Standard cross kit for quick field repairs



Series:
8
Series Size:
8
Type:
Slip Clutch

Product Documents

33550_brk_001.pdf
33550_cat_002.pdf
