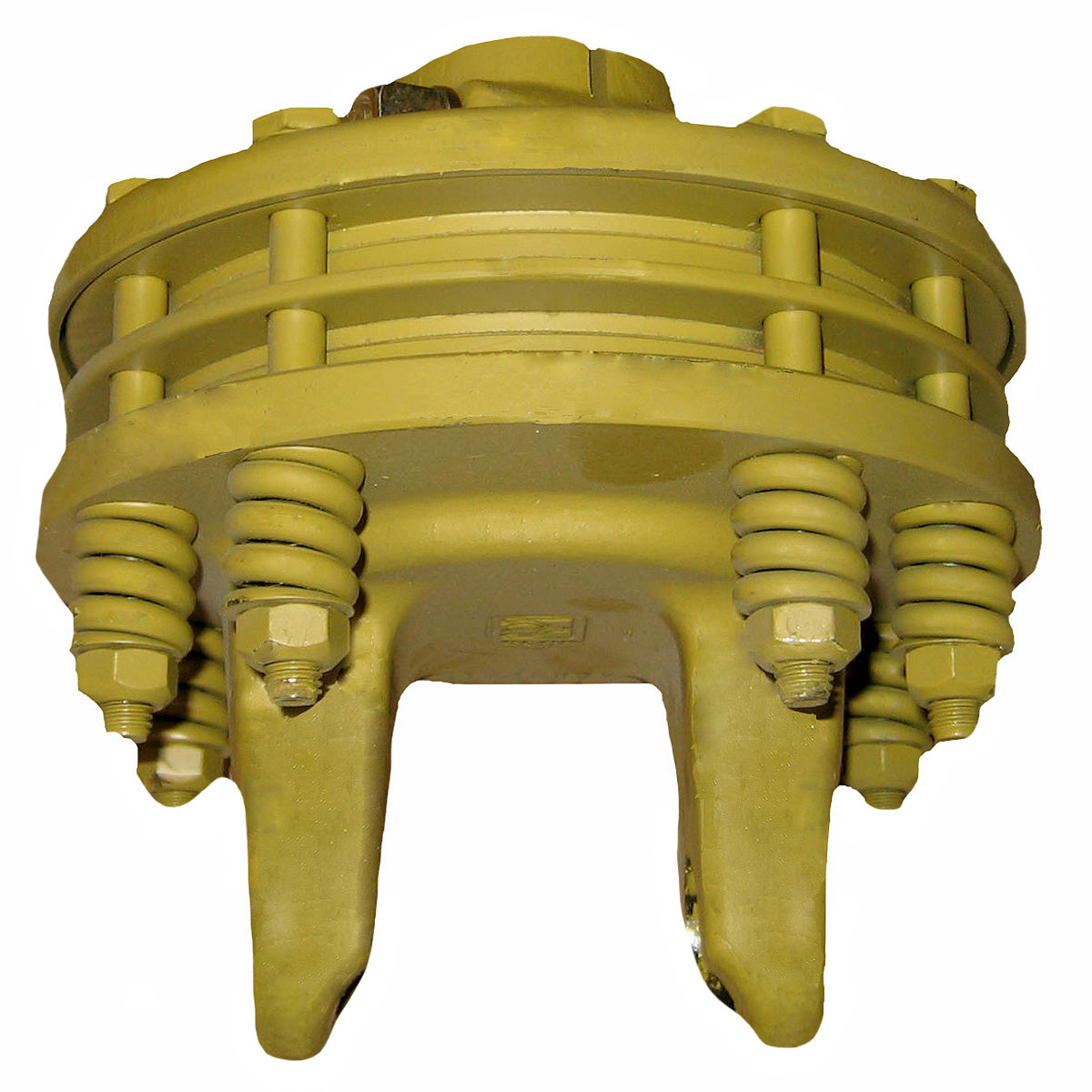

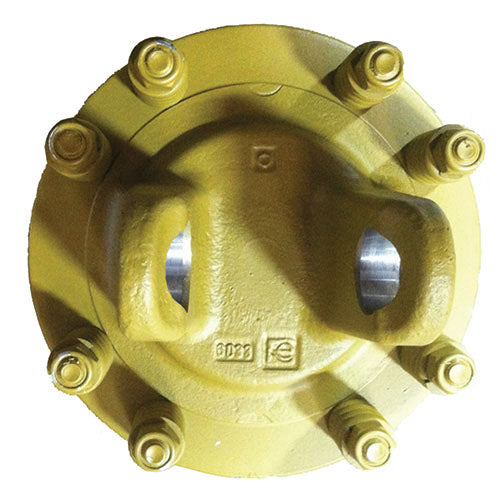

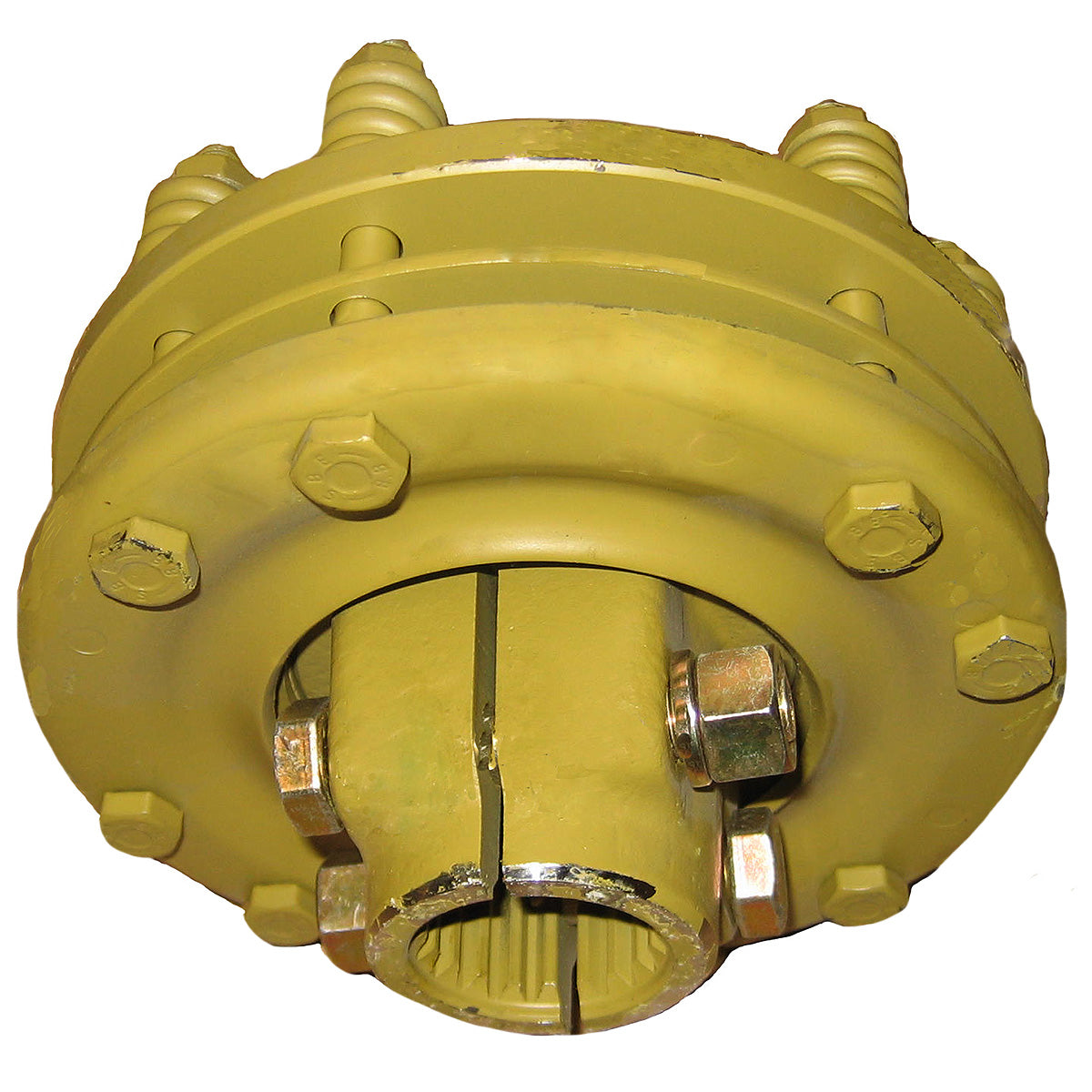

1-3/8 in. x 6 Spline Series 6 FD4 Slip Clutch with Yoke

SKU: #32387
Description

This Series 6 FD4 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The 4-disc friction design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.

Built with a 1-3/8 in. x 6 spline yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD4 series is widely used across a range of farming applications where overload protection is essential.

Dimension
Shaft Size:
1-3/8 in.
Spline Count:
6
Weight:
27 lb
Specification
Brand:
Eurocardan
Capacity:
19,470 lb
Disc Count:
4
Eurocardan Part #:
1466030
Features:



  • 4-disc friction design for controlled torque limiting
  • 1-3/8 in. x 6 spline yoke end for secure PTO fit
  • Series 6 rated for light to medium-duty implements
  • Replaceable friction disc for easy maintenance
  • 19,470 lb torque capacity for reliable overload protection



Series:
6
Series Size:
6
Type:
Slip Clutch

Product Documents

32387_brk_001.pdf
32387_bro_001.pdf
32387_cat_002.pdf
