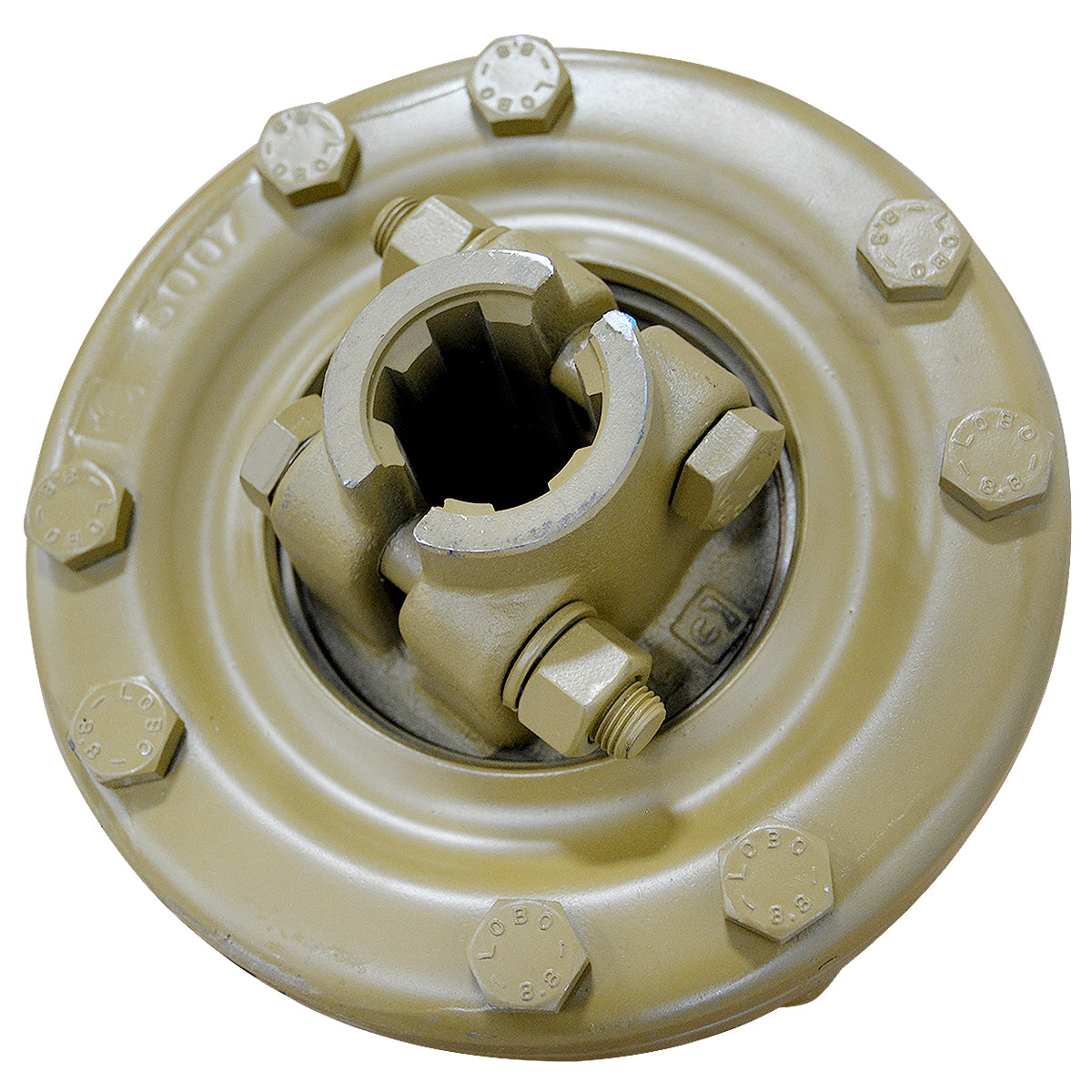

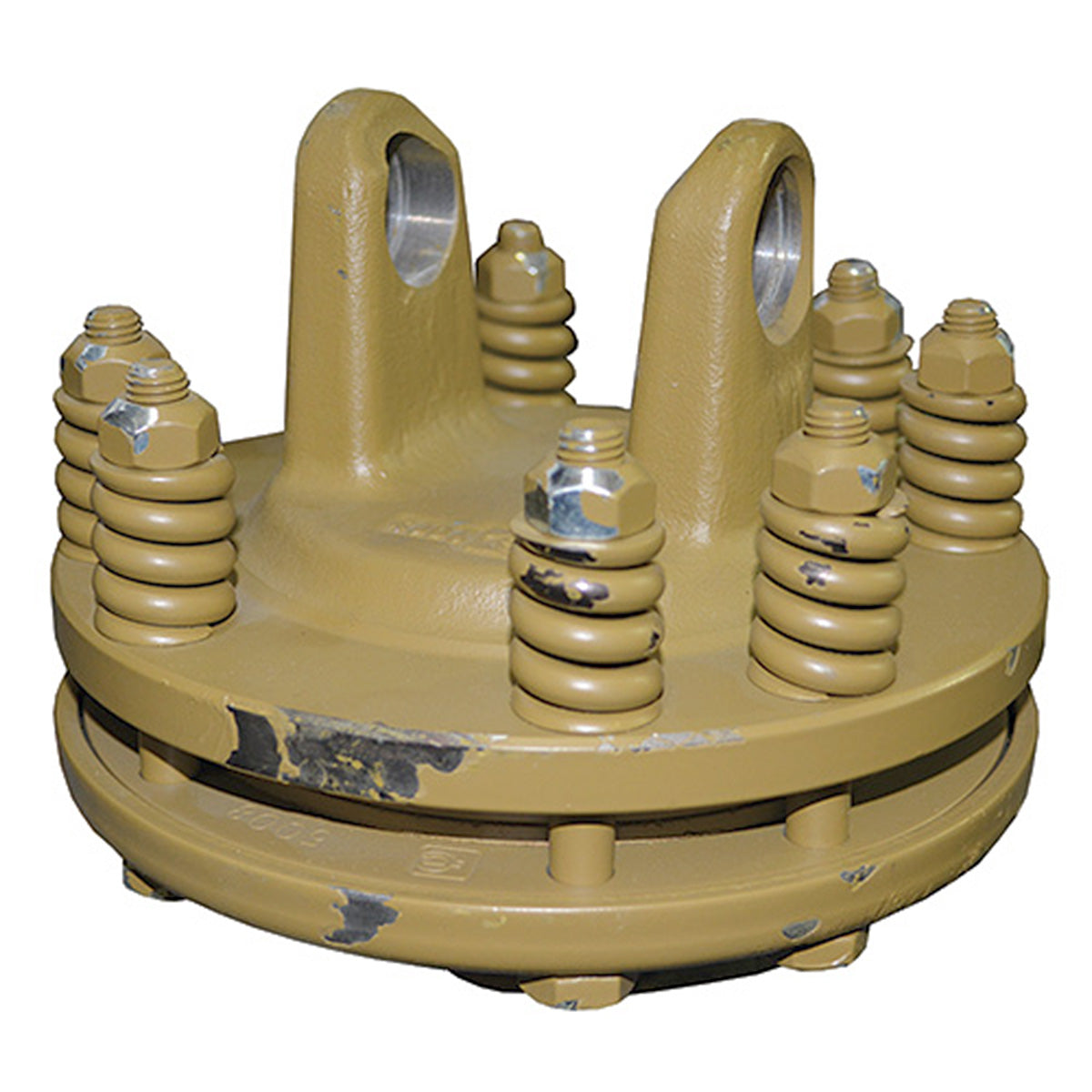

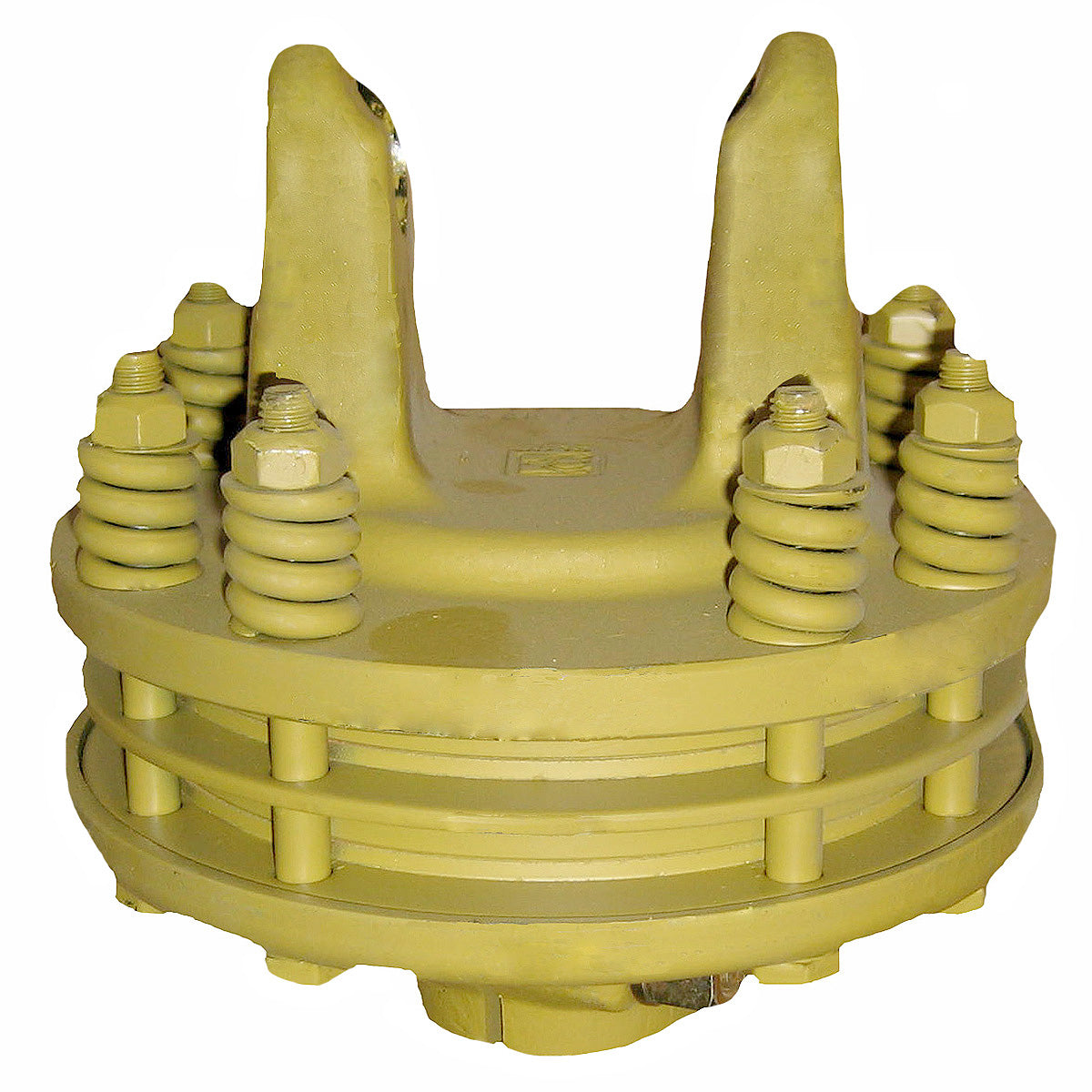

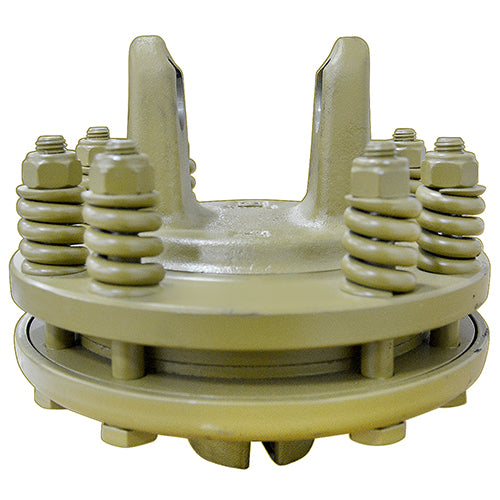

1-3/8 in. x 6 Spline Series 4 FD1 Slip Clutch with Yoke

Product Documents

32207_cat_002.pdf

Description

This Series 4 FD1 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The 2-disc friction design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.

Built with a 1-3/8 in. x 6 spline yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD1 series is widely used across a range of farming applications where overload protection is essential.

Dimension

Cross Height:

2-15/16 in.

Cross Kit Diameter:

1-1/16 in.

Shaft Size:

1 3/8 in.

Spline Count:

Weight:

16.85 lb

Specification

Brand:

Eurocardan

Capacity:

7,960 lb

Cross Kit Use:

31370

Disc Count:

Eurocardan Part #:

1344018

Features:

2-disc friction design for controlled torque limiting
1-3/8 in. x 6 spline yoke end for secure PTO fit
Series 4 rated for light-duty implements
Replaceable friction disc for easy maintenance
7,960 lb capacity for reliable overload protection

Series:

Series Size:

Type:

Slip Clutch
