1-3/8 in. x 6 Spline Series 4/5/6 FD1 PTO Slip Clutch
SKU: #31951

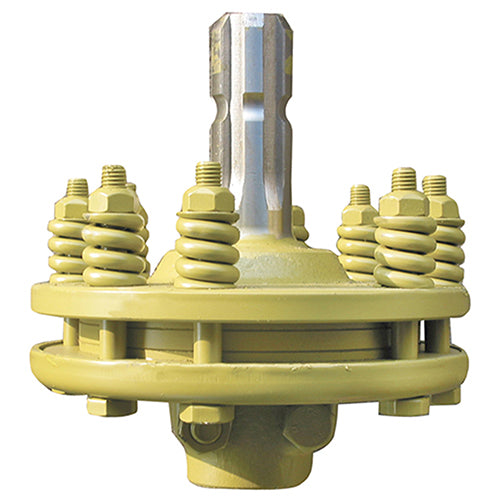

1-3/8 in. x 6 Spline Series 4/5/6 FD1 PTO Slip Clutch
SKU: #31951
Description
This FD1 PTO slip clutch provides dependable gearbox protection for agricultural implements with PTO shafts up to series 6. The friction clutch design allows controlled slippage when torque exceeds rated capacity, helping prevent costly damage from shearing or overload conditions.
Built with 1-3/8 in. x 6 spline male and female ends, this shaft and hub assembly replaces traditional shear pin systems for more reliable protection. The clutch slips when the implement hits an obstruction, safeguarding the gearbox on rotary cutters, tillers, and other PTO-driven equipment.
Dimension
Shaft Size:
1-3/8 in.
Spline Count:
6
Specification
Brand:
Eurocardan
Capacity:
7,970 lb
Eurocardan Part #:
1356104
Features:
- 1-3/8 in. x 6 spline male and female ends for secure PTO connection
- Works with PTO shafts up to series 6 for broad equipment compatibility
- 7,970 lb slipping torque for reliable gearbox protection
- Replaces shear pin systems for consistent overload protection
- Shaft and hub assembly for easy installation on implement side
Implement End:
1-3/8 in.
Implement End Gender:
Female
Implement End Spline Count:
6
Series:
4, 5, 6
Series Size:
4, 5, 6
Tractor End:
1-3/8 in.
Tractor End Gender:
Male
Tractor End Spline Count:
6
Type:
Slip Clutch
