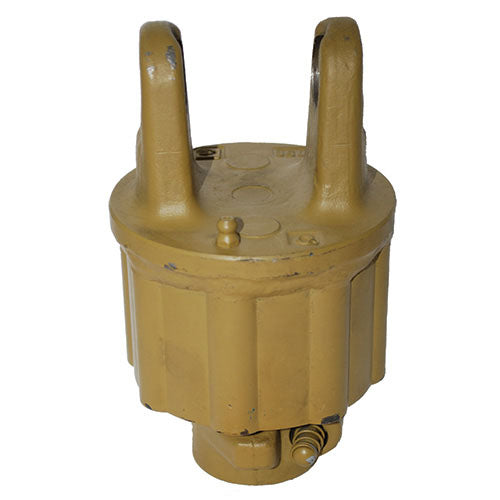

1-3/8 in. x 6 Spline Series 2 LN2 Pawl Torque Limiter with Yoke

SKU: #32322
Description

This Series 2 LN2 pawl type torque limiter is designed to protect PTO driveline components from overload damage. Featuring a 1-3/8 inch 6 spline end paired with a yoke type end, it provides reliable torque limiting functionality for demanding agricultural applications.

The pawl mechanism engages and disengages at the preset torque threshold, preventing damage to expensive implements and tractor PTO systems. Whether you are replacing a worn torque limiter or upgrading your driveline protection, this component delivers the performance and durability needed for reliable field operation.

Dimension
Length - Overall:
5-19/32 in.
Spline Count:
6
Weight:
7.5 lb
Specification
Bore:
1-3/8 in.
Brand:
Eurocardan
Capacity:
7,780 lb
Features:
  • Pawl type mechanism provides reliable overload protection for driveline components
  • 1-3/8 inch 6 spline end fits standard tractor PTO shafts
  • Yoke type end allows versatile connection to various implement configurations
  • Preset torque limit of 7,780 in-lb protects equipment from damage
  • Series 2 design ensures compatibility with standard driveline assemblies
Series:
2
Series Size:
2
Type:
Torque Limiter

Product Documents

32322_cat_002.pdf
