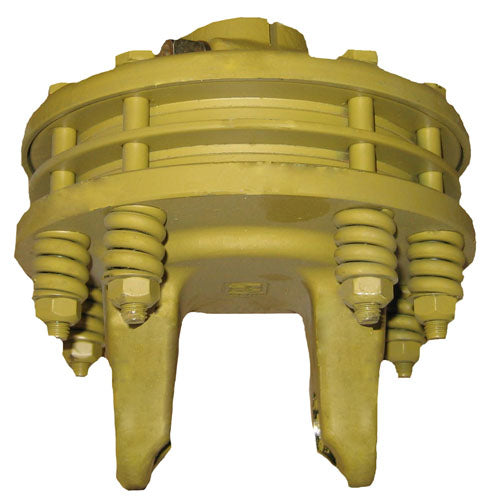

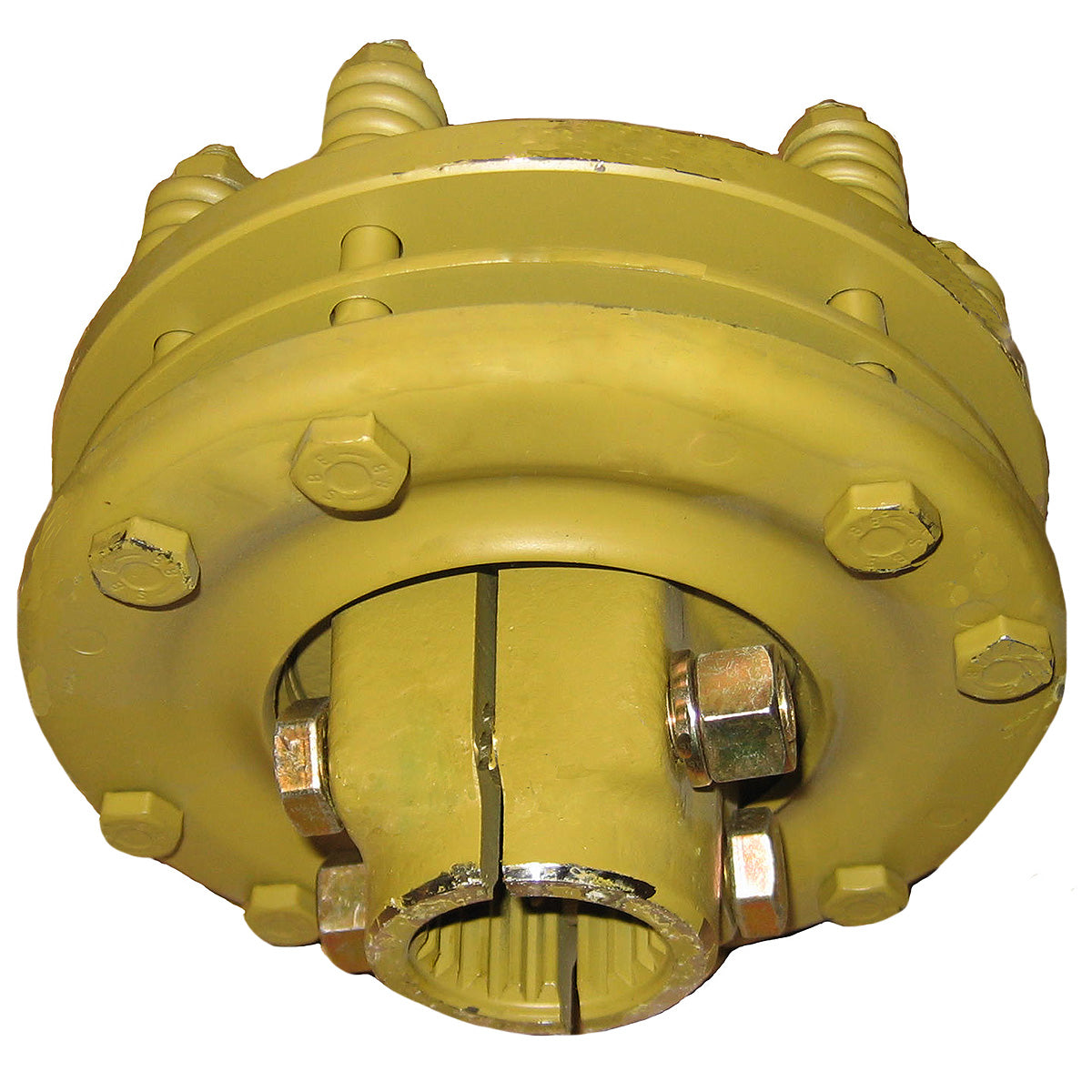

1-3/4 in. x 20 Spline Series 6 FD4 Slip Clutch with Yoke

SKU: #34574
Description

This Series 6 FD4 slip clutch with yoke provides dependable torque limiting protection for PTO-driven agricultural equipment. The friction disc design allows controlled slippage when overload conditions occur, helping prevent damage to both the implement and tractor driveline components.

Built with a 1-3/4 in. x 20 spline yoke end, this clutch is engineered for secure engagement and consistent performance under demanding field conditions. The FD4 series is widely used across a range of farming applications where overload protection is essential.

Dimension
Cross Height:
3-5/8 in.
Cross Kit Diameter:
1-3/16 in.
Shaft Size:
1-3/4 in.
Spline Count:
20
Weight:
28 lb
Specification
Brand:
Eurocardan
Cross Kit Use:
32192
Eurocardan Part #:
1446037
Features:



  • Friction disc design for controlled torque limiting
  • 1-3/4 in. x 20 spline yoke end for secure PTO fit
  • Series 6 rated for light to medium-duty implements
  • Replaceable friction disc for easy maintenance
  • Standard cross kit for quick field repairs



Series:
6
Series Size:
6
Type:
Slip Clutch

Product Documents

34574_brk_001.pdf
34574_cat_002.pdf
