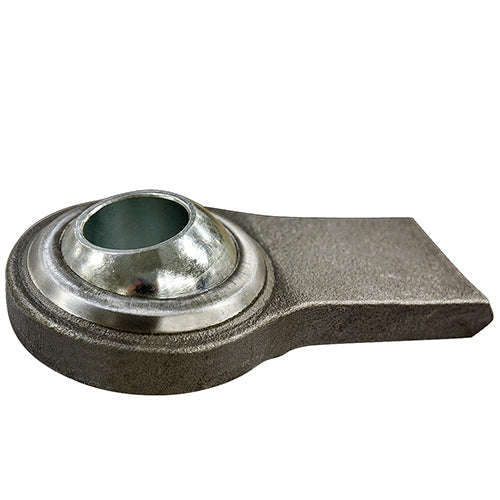

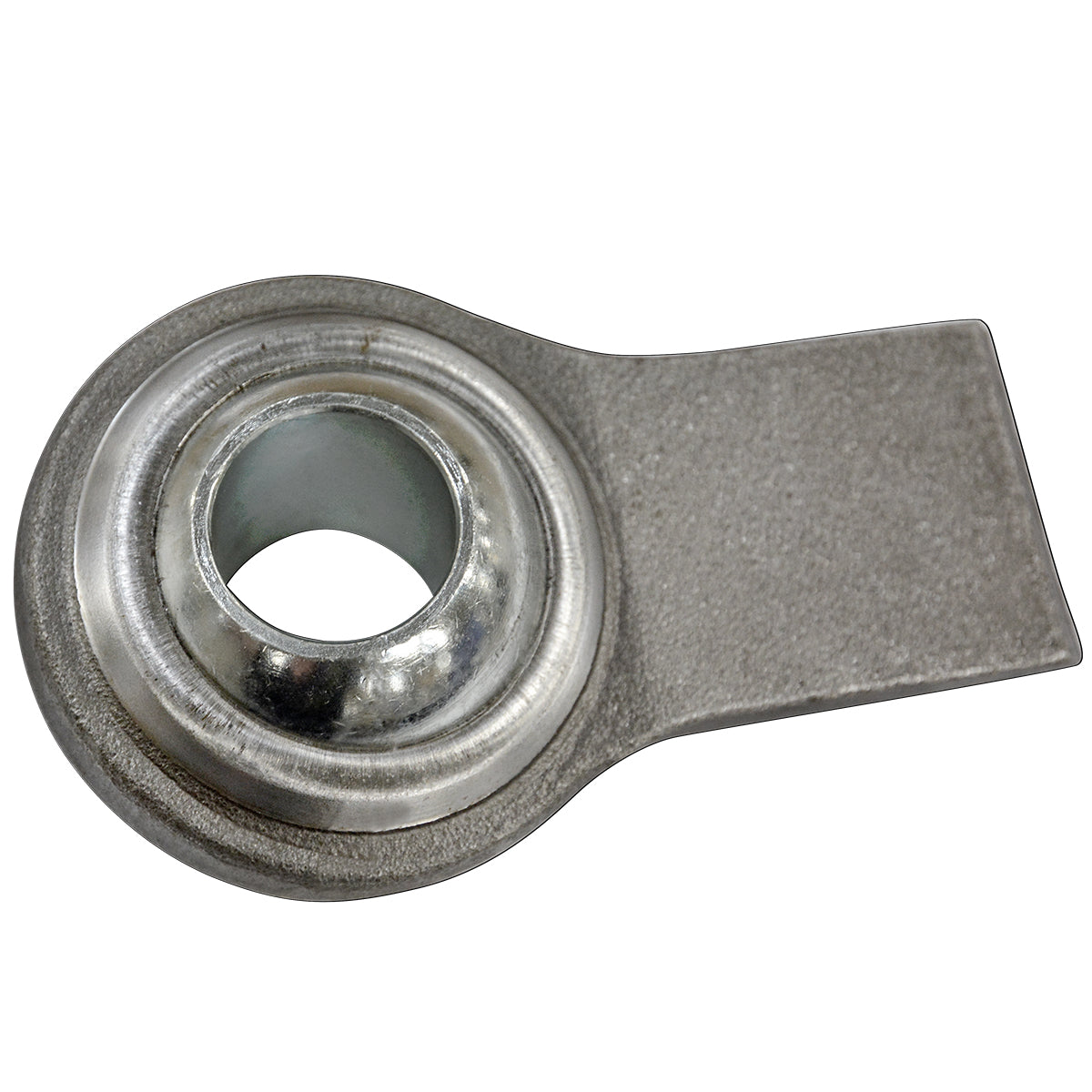

1-1/8 in. x 5-9/16 in. Bent CAT 2 EN-8 Steel Lower Link Ball End

Description

Maintain smooth rotation and reliable operation on your CAT 2 hitch with this durable bent lower link ball end. Designed as a direct replacement for worn or damaged lift arm ends during demanding tractor operations.

Built from EN-8 medium carbon steel construction for superior strength and long lasting service life. Features an oil dip finish for corrosion resistance and a bent lift arm design for angled implement mounting. Fits 1-7/8 in. x 5/8 in. tractor lift arm bars for reliable CAT 2 compatibility.

Dimension

Bore Diameter:

1-1/8 in.

Diameter - Overall:

3-1/8 in.

Dimensions:

Additional Dimensions:

Ball Size: 2-3/16 in. x 1-3/4 in. x 1-1/8 in.
Ball Diameter (Widest): 3-1/8 in.
Bar Length (Reference): 5-9/16 in.

Length - Overall:

5-9/16 in.

Weight:

3 lb

Specification

Features:

EN-8 medium carbon steel construction for reliable strength and durability
Oil dip finish for corrosion resistance and long lasting service life
CAT 2 sizing with 1-1/8 in. ball bore for standard pin fitment
Bent lift arm design for angled implement mounting applications
Fits 1-7/8 in. x 5/8 in. tractor lift arm bars for reliable installation

Finish:

Oil Dip

Fits Bar Size:

1-7/8 in. x 5/8 in.

Material:

EN-8 Medium Carbon Steel

Style:

Lift Arm (Bent), Ball End

Type:

Lower Link End

1-1/8 in. x 5-9/16 in. Bent CAT 2 EN-8 Steel Lower Link Ball End
