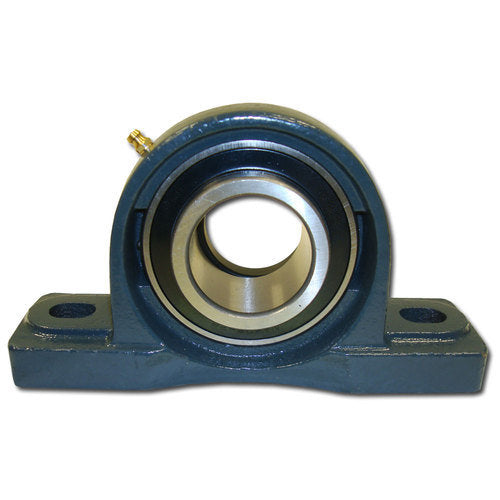

CAST IRON PILLOW BLOCK 1-1/4-R

1-1/4 in. Shaft Cast Iron Pillow Block - 207-20

SKU: #86137

Product Documents


1-1/4 in. Shaft Cast Iron Pillow Block - 207-20

SKU: #86137
Description

The 1-1/4 in. Shaft Cast Iron Pillow Block (MFG Number: 207-20) is designed to provide reliable shaft support in a wide range of equipment applications. It delivers stable performance and long service life in demanding operating conditions.

This mounted bearing unit is constructed with a cast iron housing and is suitable for applications requiring consistent shaft alignment and dependable operation.

Dimension
Bolt Distance:
4-31/32 in.
Bolt Hole:
1/2 in.
Bolt Size:
1/2 in.
Center-to-Center:
4-31/32 in.
Height:
3-5/8 in.
Housing Size:
207
Length - Overall:
6-9/16 in.
Shaft Height:
1-7/8 in.
Shaft Size:
1-1/4 in.
Specification
Bore:
1-1/4 in.
Features:



  • Solid cast iron housing delivers superior rigidity and resistance to vibration and impact
  • Standard two-bolt mounting design allows quick and straightforward installation
  • 1/2 in. bolt size ensures secure, stable attachment to equipment frames
  • Self-aligning insert bearing compensates for minor shaft misalignment during operation
  • Sealed design helps protect internal components from dust, debris, and moisture ingress
  • 1-7/8 in. (shaft center height)
Material:
Cast Iron
Type:
Cast Iron Pillow Block
