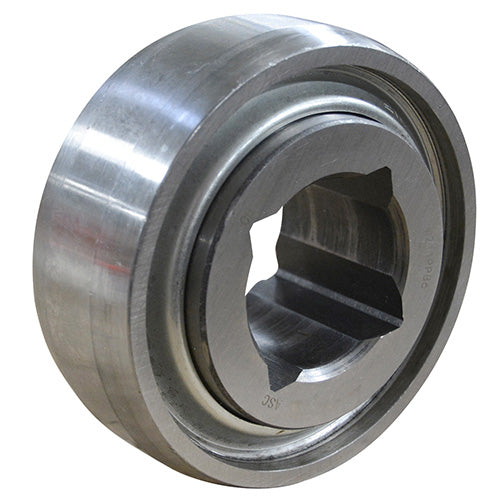

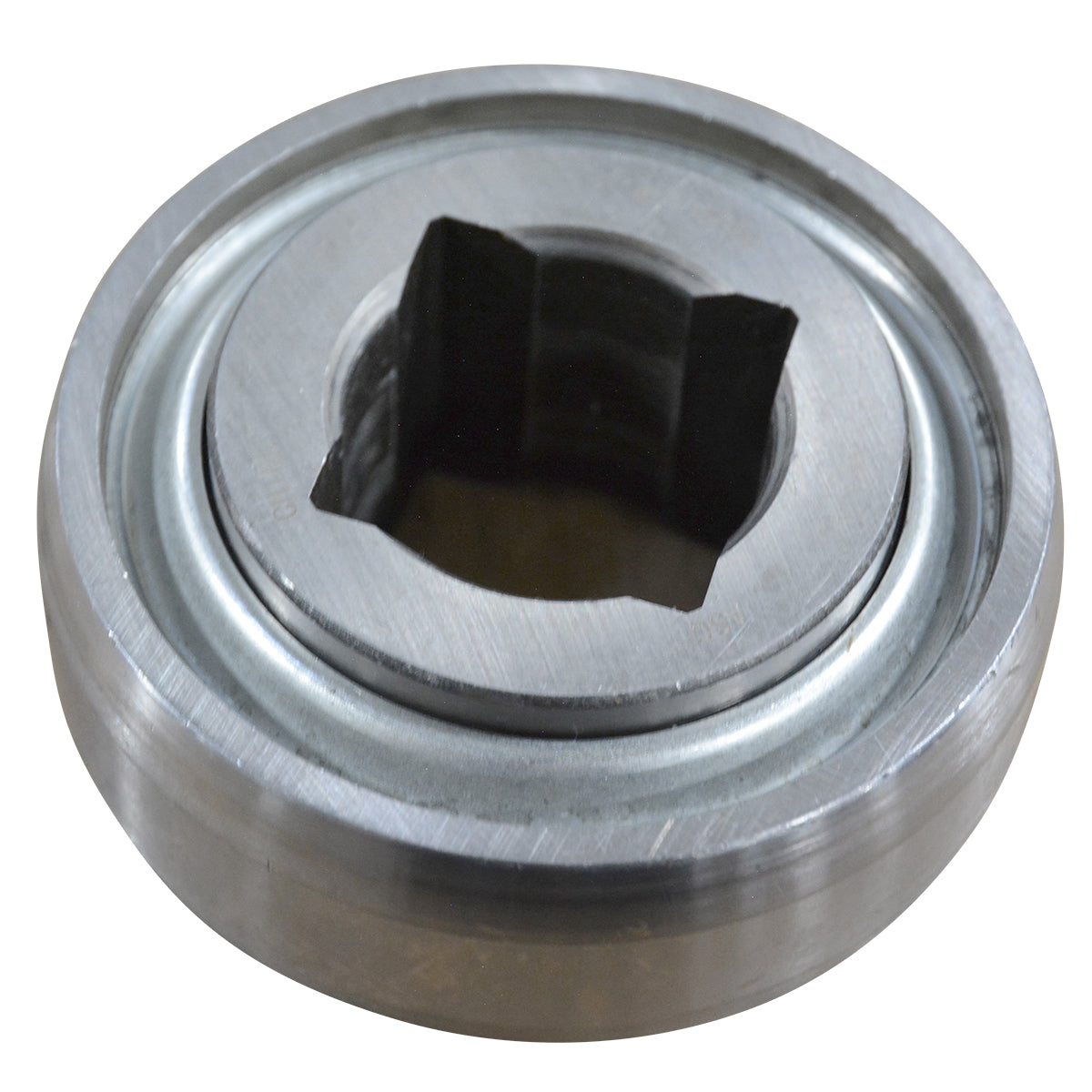

1-1/2 in. Square Bore Disc Harrow Bearing - W211PPB6

Description

The Square Bore Disc Harrow Bearing (MFG Number: W211PPB6) is designed to deliver reliable performance in disc harrow applications. It is constructed to support consistent operation in demanding agricultural environments.

This bearing is compatible with equipment from King Long and Taylorway disc harrows and is intended for use in cast iron blocks or trunnions. The sealed design helps protect against contamination, improving durability and extending service life in field conditions.

Dimension

Diameter - Inner:

1-3/4 in.

Diameter - Outer:

4-1/16 in.

Height:

4-1/16 in.

Length - Overall:

4-3/32 in.

Weight:

3.5 lb

Width - Overall:

1-7/16 in.

Specification

Bore:

1-1/2 in.

Bore Type:

Square

Brand:

Agmate

Class:

AGRICULTURAL PARTS

Features:

Square bore design provides secure fit for disc harrow applications
Sealed construction helps prevent dirt and moisture intrusion
Built for durability in demanding agricultural field conditions
Compatible with select disc harrow equipment for replacement use
Designed for use with cast iron blocks and trunnion mounting systems

Fits Bore Size:

1-1/2 in.

Origin:

China

To Fit:

Cast iron blocks or trunnions (non-flange use)

Type:

Disc Harrow Bearing

Used On:

Disc Harrow
