PTO, Gearboxes and Hydraulics

Product	Dimension	Specification

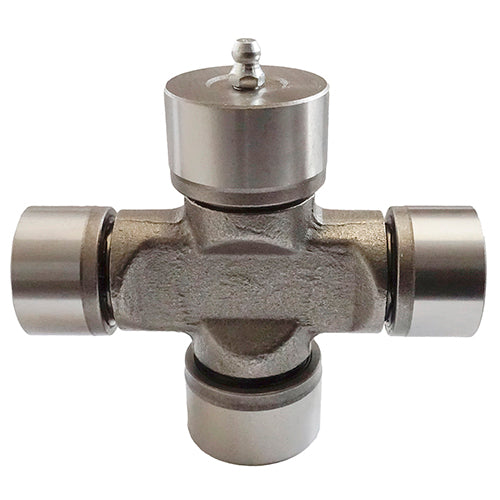

Series 8 Constant Velocity PTO Cross and Bearing Kit SKU: #56209 This series 8 constant velocity PTO cross and bearing kit is designed for universal joint assemblies on constant velocity PTO shafts. Features precision-engineered cross and cap dimensions for reliable power distribution in agricultural equipment.	Dimensions Cross Height 89 mm x 36 mm Weight 2.1 lb	Specifications Brand Eurocardan Cap Diameter 106 mm x 32 mm Eurocardan Part # 1008830
1-3/8 in. x 21 Spline Series 2 Quick Detach Yoke SKU: #35269 This quick detach yoke features a 1-3/8 in. x 21 spline configuration for Series 2. Push pin design with quick detach fork enables fast and convenient attachment.	Dimensions Spline Count 21 Spline Size 1-3/8 in. Weight 2 lb	Specifications Brand Eurocardan Eurocardan Part # 1022015 Number of Pins 1
1705277 1-3/4 in. 20-Spline Flange Hub for Flex Coupler SKU: #35889 This 20-spline flange hub is a replacement component designed to fit series 5 flex couplers.	Dimensions Spline Count 20 Weight 2 lb	Specifications Bore 1-3/4 in. Brand Eurocardan Eurocardan Part # 1705277
PM57 Replacement Short Cone 1785702 SKU: #36518 This replacement short cone is designed for the implement end of PTO plastic protection, fitting series PM57.	Dimensions Weight 2 lb	Specifications Brand Eurocardan Eurocardan Part # 1785702 Material Plastic
PM57 PTO Shield with Short Cone Implement Ends SKU: #39588 This PTO shield is designed for PM57 applications with short cone implement ends. Fits slip clutch configurations with Series 6 and 7 bearings. Includes anti-rotation chain for secure installation.	Dimensions Length - Overall 910 mm / 35.8 in. Weight 2 lb	Specifications Brand Eurocardan Eurocardan Part # 90SC6064 Series 6, 7
Series 4 Flange Yoke for FD0 Slip Clutch SKU: #40945 Series 4 flange yoke for FD0 slip clutch rated at 6,200 inch pounds. Attaches to slip clutch outer plate for agricultural PTO driveline applications.	Dimensions Weight 2 lb	Specifications Brand Eurocardan Eurocardan Part # 1704021 Series 4
Series 6 CV Cross Kit SKU: #102262 Series 6 CV cross kit with dual cap sizes for reliable power transfer in PTO shaft applications.	Dimensions Cross Height 3-15/16 in. x 3-5/8 in. Weight 1.9 lb	Specifications Brand Grizzly Cap Diameter 1-1/16 in. x 1-3/16 in. Eurocardan Part # 6S.WA.01
1-3/8 in. x 6 Spline Series 1 Quick Detach Yoke SKU: #31372 This quick detach yoke features a 1-3/8 in. x 6 spline configuration for Series 1. Push pin design with quick detach fork enables fast and convenient attachment.	Dimensions Spline Count 6 Spline Size 1-3/8 in. Weight 1.85 lb	Specifications Brand Eurocardan Eurocardan Part # 1021010 Number of Pins 1
Size 6 Constant Velocity Universal Joint SKU: #112297 Size 6 constant velocity universal joint for agricultural CV assemblies. Provides smooth, reliable power transfer in demanding farm applications.	Dimensions Size 6 Weight 1.79 lb	Specifications Brand Eurocardan Eurocardan Part # 1006721 Type PTO Assembly
Series 8 PTO Push Pin Kit SKU: #134942 Series 8 PTO push pin kit designed for PTO shaft and driveline repair applications.	Dimensions Weight 1.76 lb	Specifications Brand Grizzly Series 8 Type Pin
6 Series PTO Cross and Bearing Kit SKU: #102580 This 6 series PTO cross and bearing kit is designed for rotary cutters to ensure proper power distribution from the drive shaft throughout your equipment. Features external snap rings and rotating bearings for reliable performance.	Dimensions Cross Height 92 mm Weight 1.55 lb	Specifications Brand Grizzly Cap Diameter 30.2 mm Series 6
Eurocardan 6 Series PTO Cross and Bearing Kit SKU: #32192 This Eurocardan 6 series PTO cross and bearing kit is designed for rotary cutters to ensure proper power distribution from the drive shaft throughout your equipment. Features external snap rings and rotating bearings for reliable performance.	Dimensions Cross Height 92 mm Weight 1.55 lb	Specifications Brand Eurocardan Cap Diameter 30.2 mm Eurocardan Part # 1006020
1 in. Round Bore Series 1 Smooth Yoke with Keyway SKU: #54598 Series 1 smooth bore yoke with 1 inch round bore and keyway for secure PTO shaft attachment in agricultural driveline applications.	Dimensions Weight 1.5 lb	Specifications Bore 1 in. Brand Eurocardan Eurocardan Part # 1061026
9-1/2 in. Gearbox Shield for PTO with Slip Clutch SKU: #101785 This gearbox shield is designed to fit bush hogs with a slip clutch for reliable PTO protection.	Dimensions Bolt Pattern 3-3/4 in. Center Hole 2-23/64 in. Diameter - Overall 8-29/32 in.	Specifications Description Gearbox Shield to fit PTO with Slip Clutch up to 180 mm in Diameter Hole Count 4 Mounting Type Bolt-On
PCS5-01 Standard Cone for Series 5 PTO Shield SKU: #102983 This standard cone is a replacement component designed to fit series 5 PTO shields.	Dimensions Weight 1.5 lb	Specifications Brand Grizzly Series Size 5 Type Cone
PCS6-01 Standard Cone for Series 6 PTO Shield SKU: #102984 This standard cone is a replacement component designed to fit series 6 PTO shields.	Dimensions Weight 1.5 lb	Specifications Brand Grizzly Series Size 6 Type Cone
5/16 in. Round Bore Series 1 Smooth Yoke with Keyway SKU: #54600 Series 1 smooth bore yoke with 5/16 inch round bore and keyway for secure PTO shaft attachment in agricultural driveline applications.	Dimensions Weight 1.42 lb	Specifications Bore 5/16 in. Brand Eurocardan Eurocardan Part # 1061032
Extra Large Oval Gearbox Shield SKU: #86727 Extra large oval gearbox shield designed to help protect gearbox components on agricultural equipment.	Dimensions Size Extra Large Weight 1.41 lb	Specifications Style Oval Type Gearbox Shielding
5 Series PTO Cross and Bearing Kit SKU: #31371 This 5 series PTO cross and bearing kit is designed for rotary cutters to ensure proper power distribution from the drive shaft throughout your equipment. Features external snap rings and rotating bearings for reliable performance.	Dimensions Cross Height 80 mm Weight 1.4 lb	Specifications Brand Eurocardan Cap Diameter 30.2 mm Eurocardan Part # 1005020
7-7/8 in. Inner Pressure Plate SKU: #32552 Inner pressure plate designed for slip clutch systems, providing reliable performance and proper engagement.	Dimensions Diameter - Overall 7-7/8 in. Weight 1.35 lb	Specifications Brand Eurocardan Type Pressure Plate Used On Slip clutch
Series 5 Cross Kit SKU: #102978 Series 5 cross kit designed for reliable power transfer in PTO shaft applications.	Dimensions Cross Height 3-5/32 in. Weight 1.28 lb	Specifications Brand Grizzly Cap Diameter 1-3/16 in. Type Cross Kit
6-11/16 in. Inner Pressure Plate 1135008 SKU: #32551 1135008 PRESSURE PLATE INNER	Dimensions Diameter - Overall 6-11/16 in. Weight 1.13 lb	Specifications Brand Eurocardan Type Inner Pressure Plate Used On Slip clutch
6-1/4 in. x 3/4 in. Rubber Flex Coupler Pad SKU: #33931 6-1/4 in. diameter x 3/4 in. thick rubber flex coupler pad with 6 bolt holes on 4.63 in. bolt circle. 2-3/16 in. center hole. Sold each.	Dimensions Bolt Circle Diameter 4.63 in. Bolt Hole 6 holes Center Hole 2-3/16 in.	Specifications Brand Eurocardan Hole Count 6 Material Rubber (Reinforced)
Eurocardan 3-4 Outer Tube Bearing SKU: #35066 Replacement outer tube bearing made by Eurocardan (part number 1784210) for series 3-4 PTO shields. Direct-fit support bearing that keeps the shield tube centered on the driveline. Sold each.	Dimensions Weight 1 lb	Specifications Brand Eurocardan Type Outer Tube Bearing
1786711 PM57 Replacement Inner Tube Bearing SKU: #36520 This replacement inner tube bearing fits the implement end of PTO plastic protection for series PM57 size 6-7.	Dimensions Weight 1 lb	Specifications Brand Eurocardan Series PM57 Series Size 6-7

Brand	Eurocardan
Cap Diameter	106 mm x 32 mm
Eurocardan Part #	1008830
Quantity Required	2
Series	8
Series Size	8
Type	PTO Cross Kit

Bore	1-3/4 in.
Brand	Eurocardan
Eurocardan Part #	1705277
Hub Type	Splined
Series Size	5
Type	Flange Hub

Brand	Grizzly
Cap Diameter	1-1/16 in. x 1-3/16 in.
Eurocardan Part #	6S.WA.01
Series	Series 6 CV
Type	Cross Kit

Bore	1 in.
Brand	Eurocardan
Eurocardan Part #	1061026
Series	1
Series Size	1
Type	PTO Yoke

Description	Gearbox Shield to fit PTO with Slip Clutch up to 180 mm in Diameter
Hole Count	4
Mounting Type	Bolt-On
Type	Gearbox Shielding

Bolt Pattern	3-3/4 in.
Center Hole	2-23/64 in.
Diameter - Overall	8-29/32 in.
Height	9-1/2 in.
Slot Length	7/8 in.
Weight	1.5 lb

Bore	5/16 in.
Brand	Eurocardan
Eurocardan Part #	1061032
Series	1
Series Size	1
Type	PTO Yoke

Bolt Circle Diameter	4.63 in.
Bolt Hole	6 holes
Center Hole	2-3/16 in.
Diameter - Bolt	13/16 in.
Diameter - Outer	6-1/4 in.
Thickness	3/4 in.
Weight	1 lb
