Product	Dimension	Specification
2 in. Bore x 4 in. Stroke x 1-1/4 in. Rod Welded Hydraulic Cylinder SKU: #130968 2 in. bore x 4 in. stroke welded hydraulic cylinder with 1-1/4 in. chrome plated rod. Ultra compact welded construction for high vibration applications.	Dimensions Diameter - Rod 1-1/4 in. Weight 9.48 lb	Specifications Bore 2 in. Brand Grizzly Stroke 4 in.
4 in. Hydraulic Cylinder Base Clevis SKU: #102132A 4 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole Size 1 in.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 4 in.
BASE CLEVIS 4" ROD 2500PSI BLACK SKU: #107933 4 in. rod 2,500 PSI black hydraulic cylinder base clevis for secure cylinder mounting.	Dimensions Weight 7.2 lb	Specifications Brand Grizzly Color Black Fits Bore Size 4 in.
3-1-2-in-hydraulic-cylinder-base-clevis SKU: #102131A 3-1/2 in. hydraulic cylinder base clevis with 1-1/4 in. pin hole.	Dimensions Pin Hole 1 Pin Hole Size 1-1/4 in. Weight 6.16 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3-1/2 in.

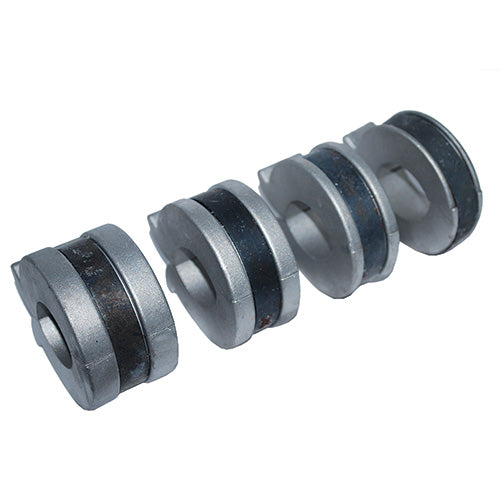

1-3/4 in. & 1-7/8 in. Cylinder Stroke Control Kit SKU: #107051 Cylinder stroke control kit for 1-3/4 in. and 1-7/8 in. cylinder rod applications.	Dimensions Weight 4.4 lb	Specifications Fits Rod Size 1-3/4 in. and 2 in. Material Aluminum Spacer Sizes 1 in., 1-1/2 in., 2 in., 4-1/4 in.
3 in. Hydraulic Cylinder Base Clevis SKU: #102130A 3 in. hydraulic cylinder base clevis for secure cylinder mounting.	Dimensions Pin Hole Size 1 in. Weight 4.65 lbs.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 3 in.
2-1/2 in. Hydraulic Cylinder Base Clevis SKU: #102129A 2-1/2 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole 1 Pin Hole Size 1 in. Weight 3.28 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.
1-1/4 in. Hydraulic Rod Clevis with Pin SKU: #102110A 1-1/4 in. hydraulic rod clevis with pin designed for hydraulic cylinder and linkage applications.	Dimensions Pin Hole 1 in. Pin Hole Size 1 in. Weight 2.75 lb	Specifications Brand Grizzly Cylinder Bore 3-1/2 in. Fits Bore Size -
2 in. Hydraulic Cylinder Base Clevis SKU: #102128A 2 in. hydraulic cylinder base clevis with 1 in. pin hole.	Dimensions Pin Hole Size 1 in. Weight 2.64 lbs.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2 in.
1-1/8 in. Stroke Control Kit SKU: #118639 1-1/8 in. stroke control kit with five aluminum spacers designed to adjust hydraulic cylinder stroke length.	Dimensions Weight 2.5 lb	Specifications Brand Grizzly Fits Rod Size 1-1/8 in. & 1-1/2 in. Material Aluminum
1-1/8 in.-12 UNF Hydraulic Cylinder Rod Clevis SKU: #102105A Hydraulic cylinder rod clevis with 1-1/8 in.-12 UNF thread and 1 in. pin compatibility.	Dimensions Pin Hole Size 1 in Thread Pitch 12 UNF	Specifications Brand Grizzly Cylinder Bore 2 in. Fits Bore Size -
1-1/4 in. Hydraulic Cylinder Rod Clevis SKU: #102108A Hydraulic cylinder rod clevis for 3 in. cylinders with 1-1/4 in. rods.	Dimensions Pin Hole 1 Pin Hole Size 1 in. Weight 2.38 lb	Specifications Brand Grizzly Cylinder Bore 3 in. Fits Bore Size -
7/8 in. Stroke Control Kit SKU: #107049 7/8 in. stroke control kit with aluminum spacers designed to reduce and control hydraulic cylinder stroke length.	Dimensions Weight 2.3 lb	Specifications Fits Rod Size 7/8 in. & 1-1/16 in. Material Aluminum Spacer Sizes 3/4 in., 1 in., 1-1/4 in., and 1-1/2 in.

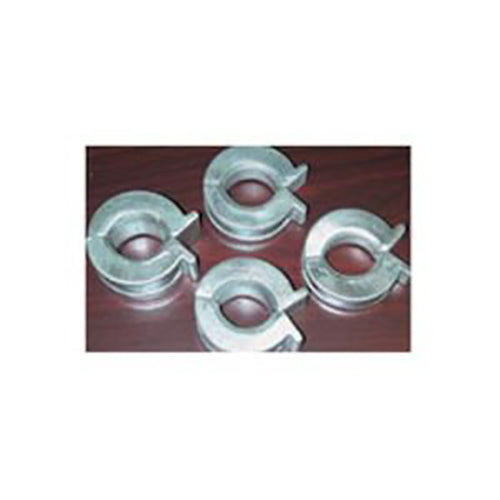

1-1/8 in. Hydraulic Stroke Control Kit SKU: #107050 1-1/8 in. stroke control kit with aluminum spacers designed to reduce and control hydraulic cylinder stroke length.	Dimensions Weight 2 lb	Specifications Fits Rod Size 1-1/8 in., 1-1/4 in., 1-3/8 in. & 1-1/2 in. Material Aluminum Spacer Sizes 3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.
1-1/2 in. UNF Hydraulic Cylinder Rod Clevis SKU: #107154A Hydraulic cylinder rod clevis with 1-1/2 in. UNF fine thread and 1 in. pin hole for compatible hydraulic cylinder applications.	Dimensions Pin Hole Size 1 in. Thread Pitch UNF Fine Thread Weight 2 lb	Specifications Brand Grizzly Fits Rod Size 1-1/2 in. or 2 in. Thread 1-1/2 in.
1-3/8 in. Stroke Control Kit SKU: #107052 1-3/8 in. stroke control kit with aluminum spacers designed to reduce and control hydraulic cylinder stroke length.	Dimensions Weight 1.5 lb	Specifications Fits Rod Size 1-3/8 in. & 1-1/2 in. Material Aluminum Spacer Sizes 3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.
1-1/8 in. Hydraulic Stroke Control Spacer Kit SKU: #107053 1-1/8 in. stroke control kit with aluminum spacers designed to reduce and control hydraulic cylinder stroke length.	Dimensions Weight 1.5 lb	Specifications Fits Rod Size 1-1/8 in. & 1-1/4 in. Material Aluminum Spacer Sizes 3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.

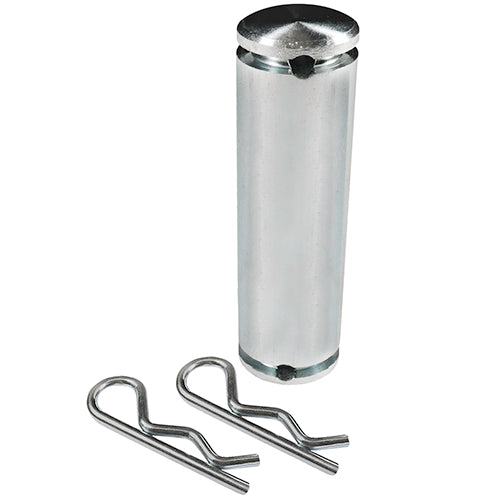

1 in. Clevis Pin With Clips SKU: #102170 1 in. clevis pin with clips designed for secure connection in hydraulic cylinder and agricultural applications.	Dimensions Diameter - Pin 1 in. Length - Overall 3-3/8 in. Length - Usable 2-5/8 in.	Specifications Brand Grizzly Description 1 in. clevis pin with 2 clips Popular Code -
Hydraulic Cylinder Combo Seal Kit for Seal Kits 46905 & 102092 SKU: #108523 Combo hydraulic cylinder seal kit combining components from seal kits 46905 and 102092.	Dimensions Pin Hole Size - Weight 0.61 lb	Specifications Brand Grizzly Cylinder Bore - Rod Thread -

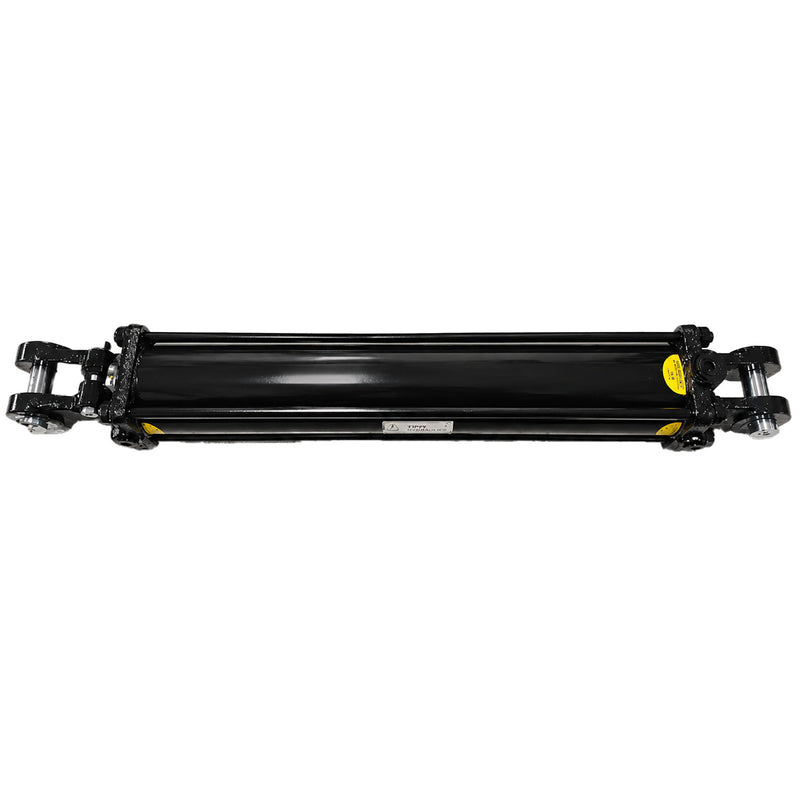

3 in. Bore x 20 in. Stroke x 1-1/2 in. Rod Hydraulic Cylinder SKU: #153250 3 in. bore x 20 in. stroke hydraulic cylinder with 1-1/2 in. chrome plated rod. 30.25 in. retracted length. Medium duty for agricultural implements.	Dimensions Diameter - Rod 1-1/2 in. Length - Overall 50.25 in. Length - Retracted 30.25 in.	Specifications Bore 3 in. Brand Grizzly Color Black
4 in. Bore x 2 in. Rod Hydraulic Cylinder Seal Kit SKU: #123742 Hydraulic cylinder seal kit for 4 in. bore and 2 in. rod applications.	Dimensions Pin Hole Size - Weight 0.5 lb	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 4 in.
2-1/2 in. Bore x 1-1/4 in. Rod Hydraulic Cylinder Seal Kit TC2500125-SKT SKU: #123743 Hydraulic cylinder seal kit for 2-1/2 in. bore and 1-1/4 in. rod applications.	Dimensions Pin Hole Size - Weight 0.5 lb.	Specifications Brand Grizzly Cylinder Bore - Fits Bore Size 2-1/2 in.

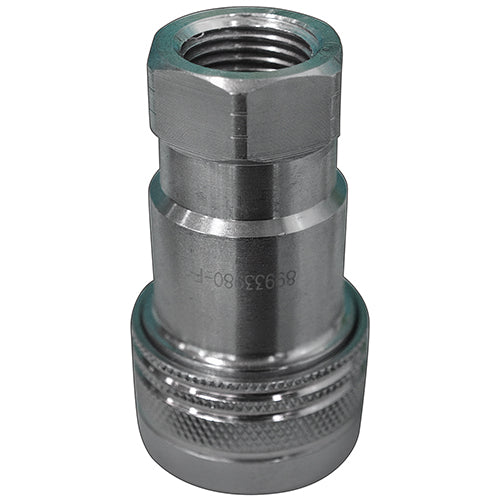

1/2-14 NPTF Hydraulic Quick Coupler with Female Ball Valve SKU: #86638 1/2-14 NPTF hydraulic quick coupler with female ball valve, 8 GPM flow rate, and 3,000 PSI working pressure.	Dimensions No dimensions available	Specifications Brand Agmate Flow Rate 8 GPM Thread 1/2-14 NPTF
1/2-14 NPTF Quick Coupler SKU: #86641 1/2-14 NPTF hydraulic quick coupler with male ball valve, 8 GPM flow rate, and 3,000 PSI working pressure.	Dimensions No dimensions available	Specifications Brand Agmate Description Hydraulic coupler with male ball valve Flow Rate 8 gpm
2 in. Bore x 1-1/4 in. Rod Seal Kit T3020XX09 SKU: #102100 8-piece hydraulic cylinder seal kit for 2 in. bore and 1-1/4 in. rod applications.	Dimensions Diameter - Rod 1-1/4 in. Weight .17 lbs.	Specifications Brand Grizzly Cylinder Bore 2 in. Fits Bore Size 2 in.

Bore	2 in.
Brand	Grizzly
Stroke	4 in.
Style	Double Acting Welded Body Cylinder, Ultra Compact
Type	Hydraulic Cylinder

Brand	Grizzly
Cylinder Bore	-
Fits Bore Size	4 in.
Fits Rod Size	4 in.
Material	Ductile Cast Iron
Rod Thread	-
Type	Base Clevises

Brand	Grizzly
Color	Black
Fits Bore Size	4 in.
Material	Ductile Cast Iron
Type	Clevis
Working Pressure	2,500 PSI

Fits Rod Size	1-3/4 in. and 2 in.
Material	Aluminum
Spacer Sizes	1 in., 1-1/2 in., 2 in., 4-1/4 in.
Type	Stroke Control

Fits Rod Size	7/8 in. & 1-1/16 in.
Material	Aluminum
Spacer Sizes	3/4 in., 1 in., 1-1/4 in., and 1-1/2 in.
Type	Stroke Control Kit

Fits Rod Size	1-1/8 in., 1-1/4 in., 1-3/8 in. & 1-1/2 in.
Material	Aluminum
Spacer Sizes	3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.
Type	Stroke Control Kit

Fits Rod Size	1-3/8 in. & 1-1/2 in.
Material	Aluminum
Spacer Sizes	3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.
Type	Stroke Control Kit

Fits Rod Size	1-1/8 in. & 1-1/4 in.
Material	Aluminum
Spacer Sizes	3/4 in., 1 in., 1-1/4 in. and 1-1/2 in.
Type	Stroke Control Kit

Brand	Grizzly
Description	1 in. clevis pin with 2 clips
Popular Code	-
Type	Clevis Pins
Used On	All Grizzly Tie Rod 2,500 PSI Cylinders with 1 in. pins

Diameter - Pin	1 in.
Length - Overall	3-3/8 in.
Length - Usable	2-5/8 in.
Weight	0.75 lb

Bore	3 in.
Brand	Grizzly
Color	Black
Finish	Black Painted (Body), Chrome Plated (Rod)
Stroke	20 in.
Style	Double Acting Tie Rod Cylinder
Type	Hydraulic Cylinder

Diameter - Rod	1-1/2 in.
Length - Overall	50.25 in.
Length - Retracted	30.25 in.
Weight	45 lbs.

Brand	Agmate
Flow Rate	8 GPM
Thread	1/2-14 NPTF
Type	Quick Coupler
Working Pressure	3,000 PSI
