Harrow Repair Parts

Product	Dimension	Specification
1-1/4 in. Square / 1-1/2 in. Round Bore Steel Spring Washer SKU: #90540 Steel spring washer for 1-1/4 in. square or 1-1/2 in. round axles, dura-tight design with excellent holding force, restores to original shape after loosening.	Dimensions Thickness 3/8 in	Specifications Axle 1-1/4 in., 1-1/2 in. Axle Shape Square, Round Bore 1-1/4 in., 1-1/2 in.
1-1/8 in. Square Bore Axle Bumper Washer SKU: #55358 1-1/8 in. square bore axle bumper washer for bedder applications, designed for secure axle end protection and reliable performance.	Dimensions Center Hole 1-1/8 in. Diameter - Outer 6 in. Thickness 1 in.	Specifications Axle 1-1/8 in. Axle Shape Square Bore 1-1/8 in.
3/4 in. Half Spacer for 1-1/8 in. Axle SKU: #108674 3/4 in. half spacer designed for 1-1/8 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 3/4 in. Weight 4 lb	Specifications Brand Grizzly Description 3-1/4 in. Half Spacer Type Disc Harrow Casting
1-1/4 in. Square Bore Slotted Bumper Washer SKU: #108676 1-1/8 in. slotted bumper washer with a 1-1/4 in. square bore for secure axle alignment in harrow applications.	Dimensions Center Hole 1-1/4 in. Diameter - Outer 4-7/8 in. Slot Hole Inside Spacing 9/16 in.	Specifications Bore 1-1/4 in. Bore Shape Square Brand Grizzly
5 in. Half Disc Bearing Housing with Grease Fitting SKU: #28211 5 in. half disc bearing housing with grease fitting, 4 grooves, old style bearing cap construction, 2 required per set for full assembly.	Dimensions Bolt Hole 3 in. Length - Overall 5 in. Spacing 1-1/2 in.	Specifications Brand Grizzly Description Bearing Cap Half with Zerk Lubrication Grease Fitting
1 in. x 7-1/2 in. Square Bore Cast Iron Plain Bearing Spacer Spool SKU: #31717 1 in. x 7-1/2 in. square bore cast iron plain bearing spacer spool for harrow axles, designed for reliable axle spacing and consistent disc alignment.	Dimensions Length - Overall 7-1/2 in.	Specifications Axle 1 in. Axle Type Square Bore 1 in.
1-1/8 in. x 1-3/4 in. Square Bore Cast Steel Half Bearing Spacer SKU: #51267 1-1/8 in. x 1-3/4 in. square bore cast steel half bearing spacer for disc harrow axles, designed for secure axle end support.	Dimensions Diameter - Base 4 in. Length - Overall 1-3/4 in. Weight 3.5 lb	Specifications Axle 1-1/8 in. Axle Type Square Bore 1-1/8 in.
1 in. x 3-5/8 in. Square Bore Half Bearing Spool SKU: #36779 1 in. x 3-5/8 in. square bore half bearing spool for disc harrow axles, designed for secure axle end support and reliable disc spacing.	Dimensions Diameter - Base 3 in. Diameter - Body 2-1/2 in. Diameter - Top 2-1/2 in.	Specifications Axle 1 in. Axle Type Square Bore 1 in.
1-1/8 in. x 1-1/4 in. Square Bore End Spacer SKU: #51268 1-1/8 in. x 1-1/4 in. square bore end spacer for disc harrow axles, designed to fit against the nut for secure axle assembly.	Dimensions Length - Overall 1-1/4 in. Weight 3 lb	Specifications Bore 1-1/8 in. Bore Shape Square Brand Grizzly
3-3/4 in. Half Spacer for 1-1/8 in. Axle SKU: #80925 3-3/4 in. half spacer designed for 1-1/8 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 3-3/4 in. Weight 3 lb	Specifications Brand Grizzly Description 3-3/4" Half Spacer Type Disc Harrow Casting
2-7/8 in. Half Spacer for 1 in. Axle SKU: #83986 2-7/8 in. half spacer designed for 1 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 2-7/8 in. Weight 3 lb	Specifications Brand Grizzly Description 2-7/8 in Half Spacer Type Disc Harrow Casting
1 in. x 2-3/8 in. Square Bore Bearing Spacer SKU: #36248 1 in. x 2-3/8 in. square bore bearing spacer for disc harrow axles, designed for reliable axle support and consistent disc spacing.	Dimensions Diameter - Base 4 in. Length - Overall 2-3/8 in. Lip Height 1-1/2 in.	Specifications Axle 1 in. Axle Type Square Bore 1 in.
3 in. Half Spacer for 1-1/8 in. Axle SKU: #80926 3 in. half spacer designed for 1-1/8 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 3 in. Weight 2.75 lb	Specifications Brand Grizzly Description 3 in Half Spacer Type Disc Harrow Casting
3-1/5 in. Half Spacer for 1 in. Axle SKU: #108669 3-1/5 in. half spacer designed for 1 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 3-1/5 in. Weight 2.65 lb	Specifications Brand Grizzly Description 3-1/5 in Half Spacer Type Disc Harrow Casting
2 in. Half Spacer for 1 in. Axle SKU: #108670 2 in. half spacer designed for 1 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 2 in. Weight 2.65 lb	Specifications Brand Grizzly Description 2 in. Half Spacer Type Disc Harrow Casting
1-9/16 in. Half Spacer for 1 in. Axle SKU: #83987 1-9/16 in. half spacer designed for 1 in. axle applications in disc harrow and tillage equipment assemblies.	Dimensions Length - Spacer 1-9/16 in. Weight 2.5 lb	Specifications Brand Grizzly Description 1-9/16 in Half Spacer Type Disc Harrow Casting
1 in. Square Bore End Washer for Disc Harrow Axle SKU: #36069 1 in. square bore end washer for disc harrow axles, designed to seat against the blade for secure axle assembly.	Dimensions Diameter - Overall 3-1/2 in. Thickness 1-1/4 in. Weight 2 lb	Specifications Axle 1 in. Axle Type Square Bore 1 in.

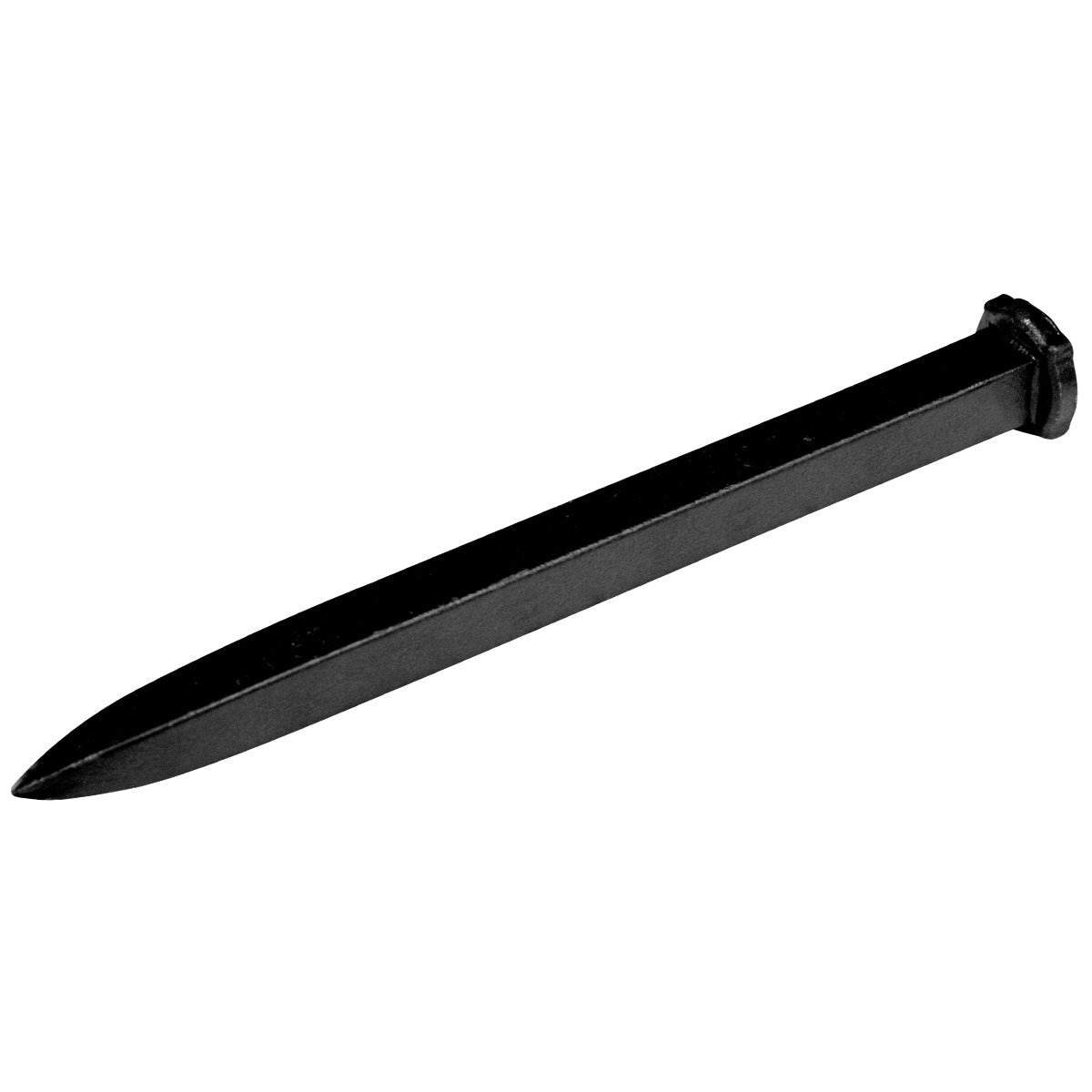

11 in. Square Harrow Spike with Head SKU: #110756 11 in. square harrow spike with head and heat-treated point for harrow and tillage equipment applications.	Dimensions Length - Overall 11 in. Weight 1.55 lb Width - Overall 3/4 in.	Specifications Style Square with Head Type Harrow Spike
8 in. Square Harrow Spike SKU: #110755 8 in. square harrow spike with heat-treated point designed for harrow and tillage equipment applications.	Dimensions Length - Overall 8 in. Weight 1.5 lb Width - Overall 3/4 in.	Specifications Style Square, No Head Type Harrow Spike
12 in. x 3/4 in. Square Steel Harrow Spike Tooth SKU: #110757 Steel harrow spike tooth with hardened point, designed to break heavy soil and prepare fields for planting with smooth and even results.	Dimensions Length - Overall 12 in. Thickness 3/4 in. Weight 1.5 lb	Specifications Heat Treat Hardened Point Material Steel Style Spike Tooth, Hardened Point
1-3/4 in. Cultipacker Wheel Half Clamp SKU: #63937 1-3/4 in. cultipacker wheel half clamp designed for round bar cultipacker assemblies and tillage equipment applications.	Dimensions Weight 1.25 lb	Specifications Type Clamp Half
1-1/4 in. Square Bore Slack Washer for 1-1/8 in. Axle SKU: #36898 Square bore slack washer for 1-1/8 in. axles, designed to adjust assembly slack and provide reliable axle support.	Dimensions Diameter - Outer 4-1/2 in. Thickness 1/4 in. Weight 1 lb	Specifications Bore 1-1/4 in. Bore Type Square Shape Square Top / Round Bottom
U-Bolt Fits BB1 Bearing Housing SKU: #11686 Heavy-duty U-bolt designed to fit BB1 small king bearing housing assemblies. Ideal for disc harrow and tillage equipment repairs.	Dimensions Center-to-Center 4-3/4 in. Diameter - Overall 5/8 in. Weight 1 lb	Specifications Type U-Bolt
8 in. x 5/8 in. Square Steel Harrow Spike Tooth SKU: #110753 Steel harrow spike tooth with hardened point, designed to break heavy soil and prepare fields for planting with smooth and even results.	Dimensions Length - Overall 8 in. Thickness 5/8 in. Weight 0.85 lb	Specifications Heat Treat Hardened Point Material Steel Shape Square Top / Round Bottom
8 in. Diamond Harrow Spike with Head SKU: #110754 8 in. diamond harrow spike with head and heat-treated point designed for harrow and tillage equipment applications.	Dimensions Length - Overall 8 in. Weight 0.62 lb Width - Overall 5/8 in. x 7/8 in.	Specifications Style Diamond, With Head Type Harrow Spike

Axle	1-1/4 in., 1-1/2 in.
Axle Shape	Square, Round
Bore	1-1/4 in., 1-1/2 in.
Bore Shape	Square, Round
Brand	Grizzly
Color	Powder Coat-Black
Heat Treat	RC40-45
Material	Steel
Style	Spring / Gang Bolt End Washer (Dura-Tight)
Type	Bumper Washer

Axle	1-1/8 in.
Axle Shape	Square
Bore	1-1/8 in.
Bore Shape	Square
Brand	Grizzly
Center Hole Type	Square
Description	Bumper Washer
Type	Bumper Washer

Center Hole	1-1/8 in.
Diameter - Outer	6 in.
Thickness	1 in.
Weight	4 lb

Bore	1-1/4 in.
Bore Shape	Square
Brand	Grizzly
Center Hole Type	Square
Description	Slotted Bumper Washer
Style	Slotted
Type	Bumper Washer

Bolt Hole	3 in.
Length - Overall	5 in.
Spacing	1-1/2 in.
Weight	4 lb

Axle	1 in.
Axle Type	Square
Bore	1 in.
Bore Shape	Square
Brand	Grizzly
Description	7-7/16 in. Spacer Spool
Material	Cast Iron
Style	Plain Bearing Spacer Spool (Spacer Only)
Type	Disc Harrow Casting

Diameter - Base	3 in.
Diameter - Body	2-1/2 in.
Diameter - Top	2-1/2 in.
Length - Overall	3-5/8 in.
Weight	3 lb

Diameter - Base	4 in.
Length - Overall	2-3/8 in.
Lip Height	1-1/2 in.
Weight	2.76 lb

Heat Treat	Hardened Point
Material	Steel
Style	Spike Tooth, Hardened Point
Type	Harrow Spike

Bore	1-1/4 in.
Bore Type	Square
Shape	Square Top / Round Bottom
Type	Disc Bedder Axle

Center-to-Center	4-3/4 in.
Diameter - Overall	5/8 in.
Weight	1 lb
Width - Overall	4-1/8 in.

Length - Overall	8 in.
Weight	0.62 lb
Width - Overall	5/8 in. x 7/8 in.
